Winado Air Conditioners 2 zone 20000-BTU Ductless Mini Split Air Conditioner Heat Pump Included with 230-Volt
$1,239.99
This dual-zone inverter heat pump system provides independent temperature control for two separate rooms, delivering efficient cooling and heating with quiet operation, energy savings, and year-round comfort. Built with high-quality compressors, pure copper motors, and spiral copper tubing, it rapidly cools or warms spaces while maintaining whisper-quiet performance. High SEER2 ratings ensure significant energy savings, and multiple operating modes allow personalized comfort settings for any living or working space.
Dual-zone control allows independent temperature management for two separate rooms using 9,000 BTU and 12,000 BTU indoor units, each with its own controller, connected to a single outdoor condenser covering up to 950 square foot total. Advanced frequency converter technology continuously adjusts compressor speed for optimal efficiency, reducing energy consumption by at least 35% compared to conventional air conditioners. Ultra-quiet operation with noise levels ranging from 28-45 dB(A) ensures undisturbed sleep and relaxation, while sleep and mute modes maintain consistent temperatures throughout the night. Four-way swing function distributes airflow evenly throughout the room, reaching every corner for rapid and uniform comfort within minutes of operation. Full-featured remote control provides easy access to all functions including fan speed, sleep mode, 24-hour timer, ECO mode, turbo mode, and mute settings with a digital LED display. Permanently washable air filters capture airborne particles for cleaner indoor air quality, with simple monthly cleaning maintaining optimal efficiency and extending unit lifespan. Engineered to operate reliably in outdoor temperatures as low as -4°F, ensuring consistent heating performance even during cold winter conditions. Comes complete with two 24.6 ft copper linesets, drain pipes, and installation kits, providing everything needed for professional installation and setup. AHRI Certified with high SEER2 and HSPF2 ratings, this system delivers exceptional energy efficiency and reliable performance backed by rigorous testing and quality standards.
General |
|||
|---|---|---|---|
Color/Finish Family |
White |
Manufacturer Color/Finish |
White |
Series Name |
Air Conditioners |
Type |
Quick connect (DIY) |
Application |
Heating/Cooling |
Control Type |
Digital |
Filter Type |
Mesh |
Mounting Location |
Wall |
Refrigerant Type |
R-32 |
Number of Tons |
1.5 |
Dimensions |
|||
|---|---|---|---|

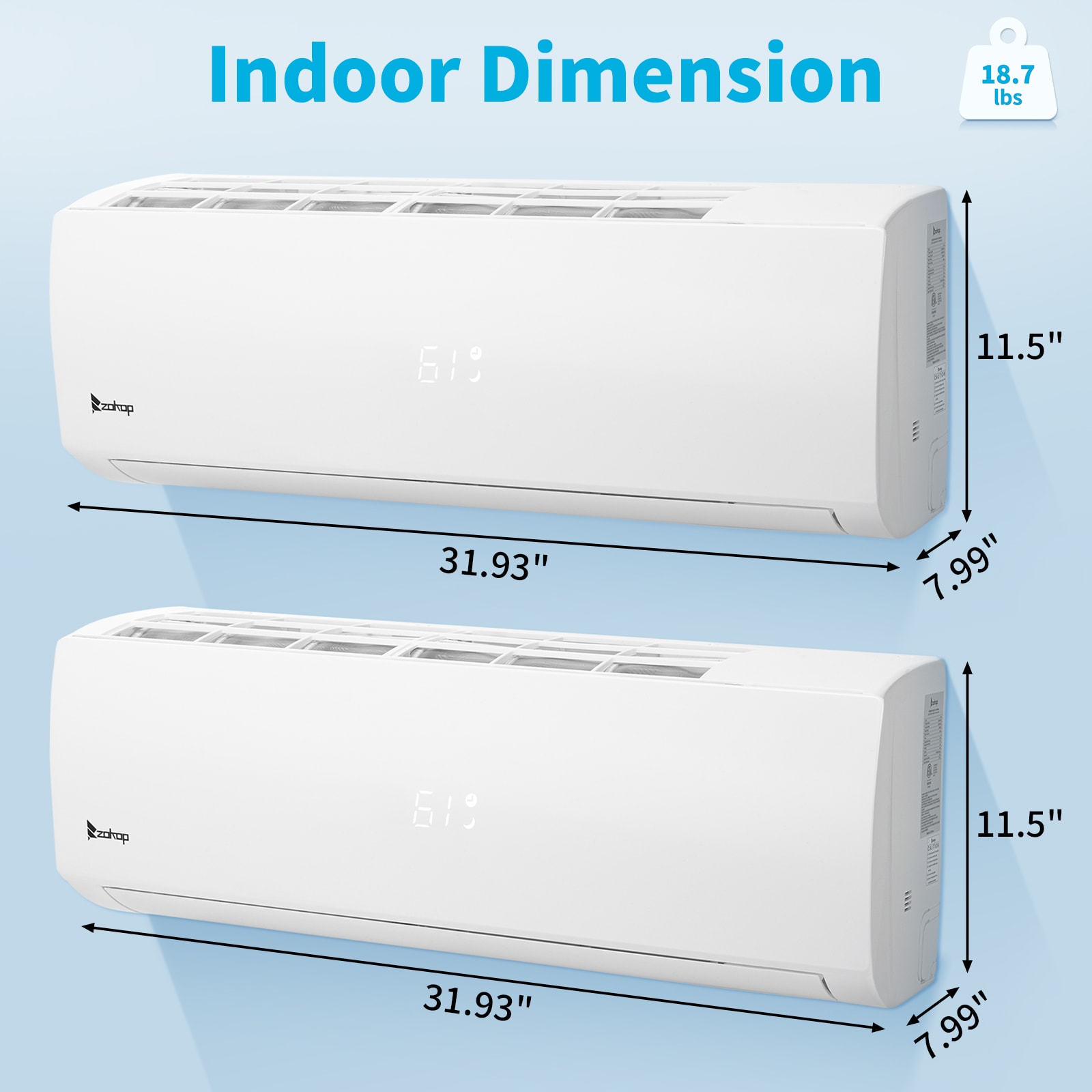

Air Handler Depth (Inches) |
7.99 |
Air Handler Height (Inches) |
11.5 |
Air Handler Width (Inches) |
31.9 |
Compressor Depth (Inches) |
13.74 |
Compressor Height (Inches) |
23.7 |
Compressor Width (Inches) |
33.54 |
Cord Length (Feet) |
0 |
Depth (Inches) |
7.99 |
Height (Inches) |
11.5 |
Line-set Connection Size |
1/4-in x 3/8-in |
Line-set Length |
25-ft |
Maximum Coverage Area (Sq. Feet) |
950 |
Weight (lbs.) |
148.59 |
Width (Inches) |
31.9 |
Zone Capacity |
2 zone |
Amperage |
6.7 |
Features |
|||
|---|---|---|---|
24 Hour Timer |
Yes |
Annual Fuel Utilization Efficiency % (Percentage) |
0 |
Auto Cool |
Yes |
Automatic Shut-Off |
No |
Cooling BTU Rating (BTU) |
20000 |
Decibel Rating (Highest Setting) |
42 |
Decibel Rating (Lowest Setting) |
28 |
Fan Only Option |
Yes |
Full Load Amperage Requirement (Amps) |
15 |
Heat Pump Included |
Yes |
Heating BTU Rating (BTU) |
20000 |
Hub Required |
No |
Kit |
Yes |
Low Voltage Compensation |
No |
Lowe’s Exclusive |
No |
Minimum Outdoor Temperature (Fahrenheit) |
5 |
Multi-Directional Air Control |
Yes |
Noise Rating |
Quiet (45 decibels or below) |
Number of Speeds |
8 |
Oscillation |
No |
Overload Protection |
Yes |
Pre-Charged Line Set |
Yes |
Quiet Mode |
Yes |
Remote Control Included |
Yes |
Sleep Mode |
Yes |
Thermostat |
Yes |
Timer |
Yes |
Voice Controlled |
No |
Voltage (Volts) |
230 |
||
Compatibility |
|||
|---|---|---|---|
App Compatibility |
App required |
Bluetooth Compatibility |
No |
Wi-Fi Compatibility |
Yes |
Works with Amazon Alexa |
No |
Works with Android |
Yes |
Works with Apple HomeKit |
No |
Works with iOS |
Yes |
Works with SmartThings |
No |
Works with the Google Assistant |
Yes |
||
Warranty |
|||
|---|---|---|---|
Warranty |
60-day limited |
||
Certifications |
|||
|---|---|---|---|
AHRI Certified |
Yes |
CA Residents: Prop 65 Warning(s) |
No |
Energy Efficiency Ratio (E.E.R.) |
10 |
ENERGY STAR Certified |
No |
Safety Listing |
ETL safety listing |
Seasonal Energy Efficiency Ratio (SEER2) |
23 |
Heating Seasonal Performance Factor (HSPF) |
0 |
||
Miscellaneous |
|||
|---|---|---|---|
UNSPSC |
40101700 |
||
