Winado 3 Zone 42000 BTU 20 SEER2 Mini Split Air Conditioner with Heat Pump 12K plus 18K plus 18K
$2,183.99
Out of stock
Three-zone inverter heat pump system provides customized comfort for multiple rooms. Built with quality compressors, pure copper motors, and spiral copper tubing for rapid heating and cooling with quiet efficiency. High SEER ratings deliver significant energy savings, while multiple operating modes ensure personalized comfort throughout the year.
Multiple Room Control – Includes one 12,000 BTU and two 18,000 BTU indoor units with independent controls and one outdoor condenser, covers up to 2,550 square feet total (550 + 1,000 + 1,000 square feet recommended). Energy Saving – Equipped with frequency converter technology that continuously adjusts compressor speed for optimal efficiency, reducing energy use by at least 35% compared to conventional units. Quiet Operation – Operates as quietly as 28–49 dB(A) while complementing any room decor, sleep and mute modes maintain consistent temperatures overnight, the 4-way swing function distributes airflow evenly for fast, even comfort. Smart Control – Full-function remote provides access to fan speed, Sleep mode, 24-hour timer, ECO, Turbo, and Mute settings, digital LED display enables precise temperature adjustments from anywhere in the room. Washable Air Filter – Permanently washable filter captures airborne particles for cleaner air, monthly cleaning maintains optimal efficiency and extends unit lifespan.
General |
|||
|---|---|---|---|
Color/Finish Family |
White |
Manufacturer Color/Finish |
White |
Type |
Quick connect (DIY) |
Application |
Heating/Cooling |
Control Type |
Digital |
Filter Type |
Mesh |
Mounting Location |
Wall |
Refrigerant Type |
R-32 |
Number of Tons |
3.5 |
||

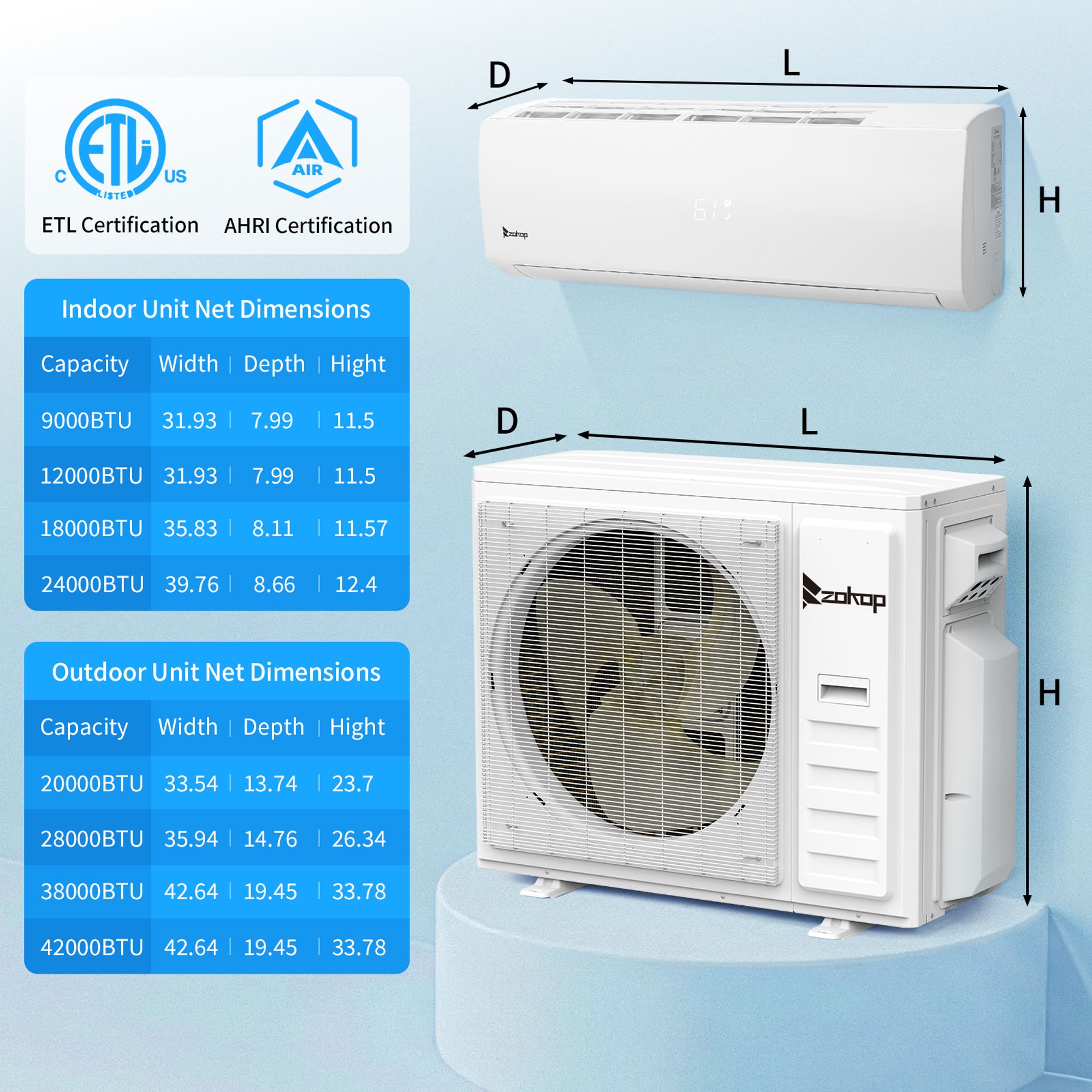

Dimensions |
|||
|---|---|---|---|
Air Handler Depth (Inches) |
8.11 |
Air Handler Height (Inches) |
11.57 |
Air Handler Width (Inches) |
35.83 |
Compressor Depth (Inches) |
19.45 |
Compressor Height (Inches) |
33.78 |
Compressor Width (Inches) |
42.64 |
Cord Length (Feet) |
0 |
Depth (Inches) |
8.11 |
Height (Inches) |
11.57 |
Line-set Connection Size |
1/4-in x 3/8-in |
Line-set Length |
25-ft/25-ft/25ft |
Maximum Coverage Area (Sq. Feet) |
2550 |
Weight (lbs.) |
273.59 |
Width (Inches) |
35.83 |
Zone Capacity |
3 zone |
Amperage |
25 |
Features |
|||
|---|---|---|---|
24 Hour Timer |
Yes |
Auto Cool |
No |
Automatic Shut-Off |
Yes |
Cooling BTU Rating (BTU) |
42000 |
Decibel Rating (Highest Setting) |
49 |
Decibel Rating (Lowest Setting) |
32 |
Fan Only Option |
Yes |
Full Load Amperage Requirement (Amps) |
25 |
Heat Pump Included |
Yes |
Heating BTU Rating (BTU) |
42000 |
Hub Required |
No |
Low Voltage Compensation |
Yes |
Lowe’s Exclusive |
Yes |
Minimum Outdoor Temperature (Fahrenheit) |
-4 |
Multi-Directional Air Control |
Yes |
Noise Rating |
Quiet (45 decibels or below) |
Number of Speeds |
8 |
Oscillation |
Yes |
Overload Protection |
Yes |
Pre-Charged Line Set |
No |
Quiet Mode |
Yes |
Remote Control Included |
Yes |
Sleep Mode |
Yes |
Thermostat |
Yes |
Timer |
Yes |
Voltage (Volts) |
230 |
Compatibility |
|||
|---|---|---|---|
App Compatibility |
App required |
Bluetooth Compatibility |
No |
Smart Compatible |
Yes |
Wi-Fi Compatibility |
Yes |
Works with Amazon Alexa |
No |
Works with Android |
Yes |
Works with Apple HomeKit |
No |
Works with iOS |
Yes |
Works with SmartThings |
Yes |
Works with the Google Assistant |
Yes |
Warranty |
|||
|---|---|---|---|
Warranty |
60-day limited |
||
Certifications |
|||
|---|---|---|---|
AHRI Certified |
Yes |
CA Residents: Prop 65 Warning(s) |
No |
Energy Efficiency Ratio (E.E.R.) |
9.5 |
Safety Listing |
ETL safety listing |
Seasonal Energy Efficiency Ratio (SEER2) |
20 |
||
Miscellaneous |
|||
|---|---|---|---|
UNSPSC |
40101700 |
||
