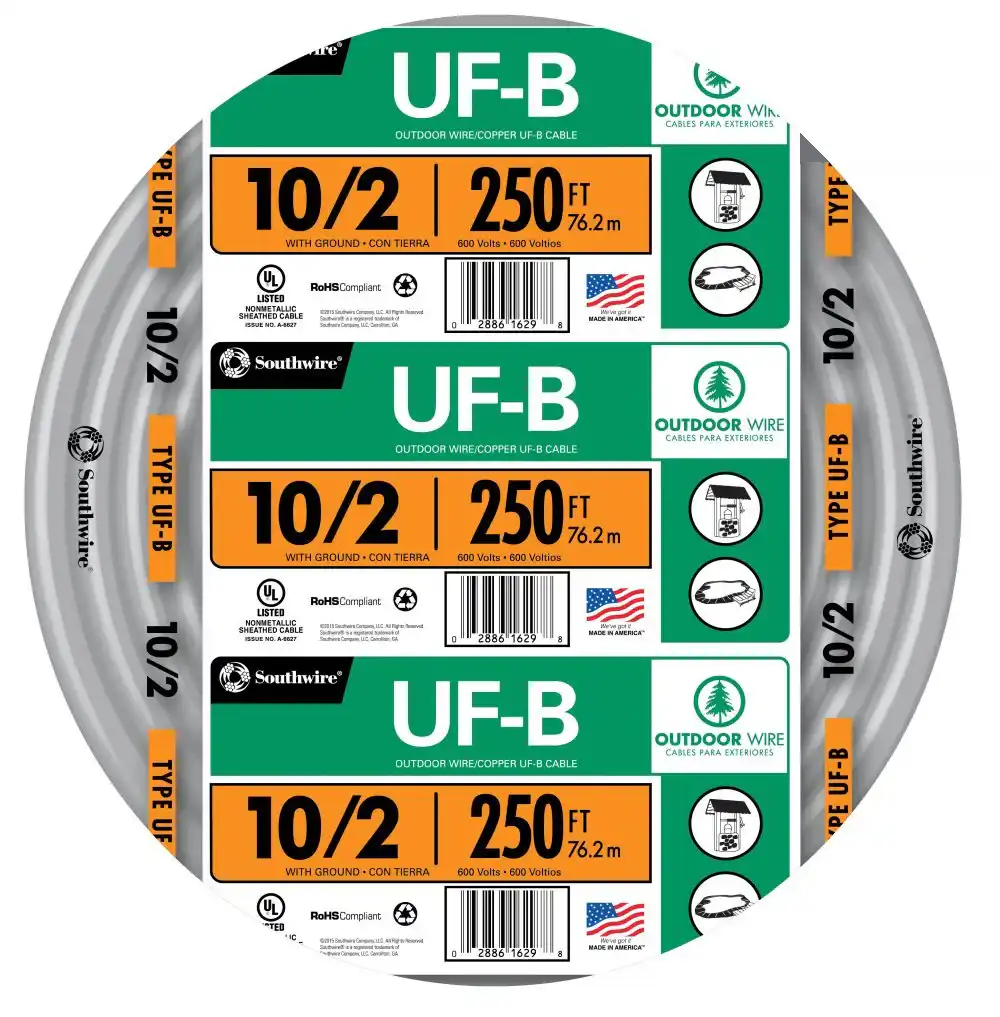

Southwire 250-ft 10/2 Solid UF-B Wire W/G (By-the-roll) 13056755
$238.50
Description
Southwire’s copper UF-B cable is used in applications that include outside lamp posts, pumps and other loads. It can also be used for outbuildings such as garages and barns. UF-B feeds from a distribution point in an existing building. UF-B has a heat capacity of 90°C and is rated at 600-Volt. UL Listed and CSA certified. Conductors are made of annealed (soft) copper PVC insulation and a nylon, color coded jacket Used outdoors for direct burial Used indoors for wet or corrosive locations Jacketed with sunlight, moisture and fungus resistant gray PVC Installation Manual PDF
Specifications
General |
|||
|---|---|---|---|
Sub-Brand |
N/A |
||
Dimensions |
|||
|---|---|---|---|
Cable Length (Feet) |
250 |
Weight (lbs.) |
34.4973 |
Features |
|||
|---|---|---|---|
Commercial/Residential |
Commercial/Residential |
Direct Burial |
Yes |
Fire Resistant |
No |
Ground Wire |
Yes |
Maximum Amperage |
30 |
Moisture Resistant |
Yes |
Number of Conductors |
2 |
RoHs Compliant |
Yes |
Shielded |
No |
Stranded or Solid |
Solid |
Use Location |
Indoor/Outdoor |
UV Resistant |
Yes |
Voltage Rating |
600 |
Wire Cut Type |
By-the-roll |
Wire Gauge |
10 |
||
Compatibility |
|||
|---|---|---|---|
Conduit Compatible |
No |
||
Warranty |
|||
|---|---|---|---|
Warranty |
1-year limited |
||
Certifications |
|||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) |
No |
Safety Listing |
UL safety listing |
Miscellaneous |
|||
|---|---|---|---|
UNSPSC |
60104900 |
||
