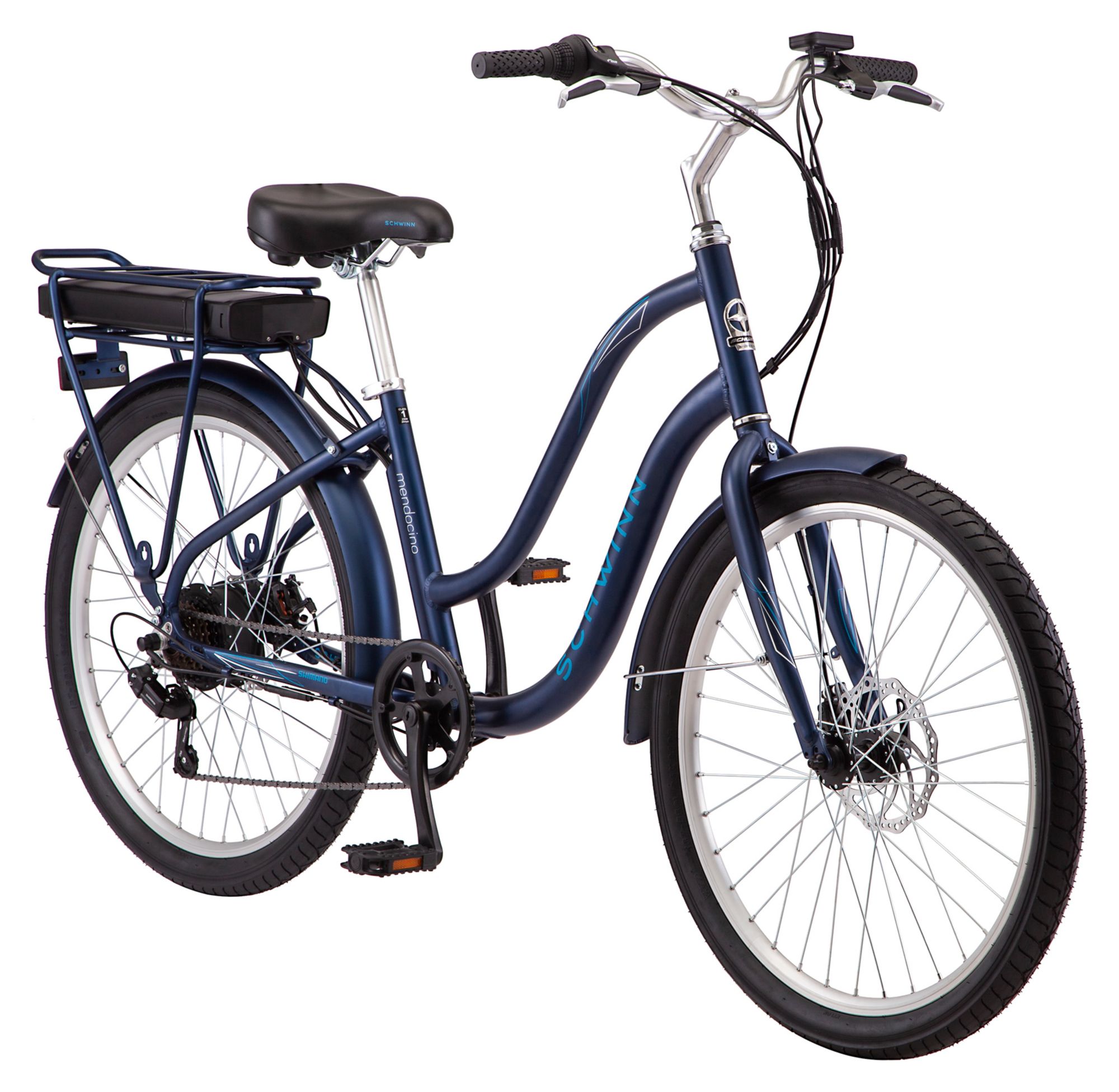

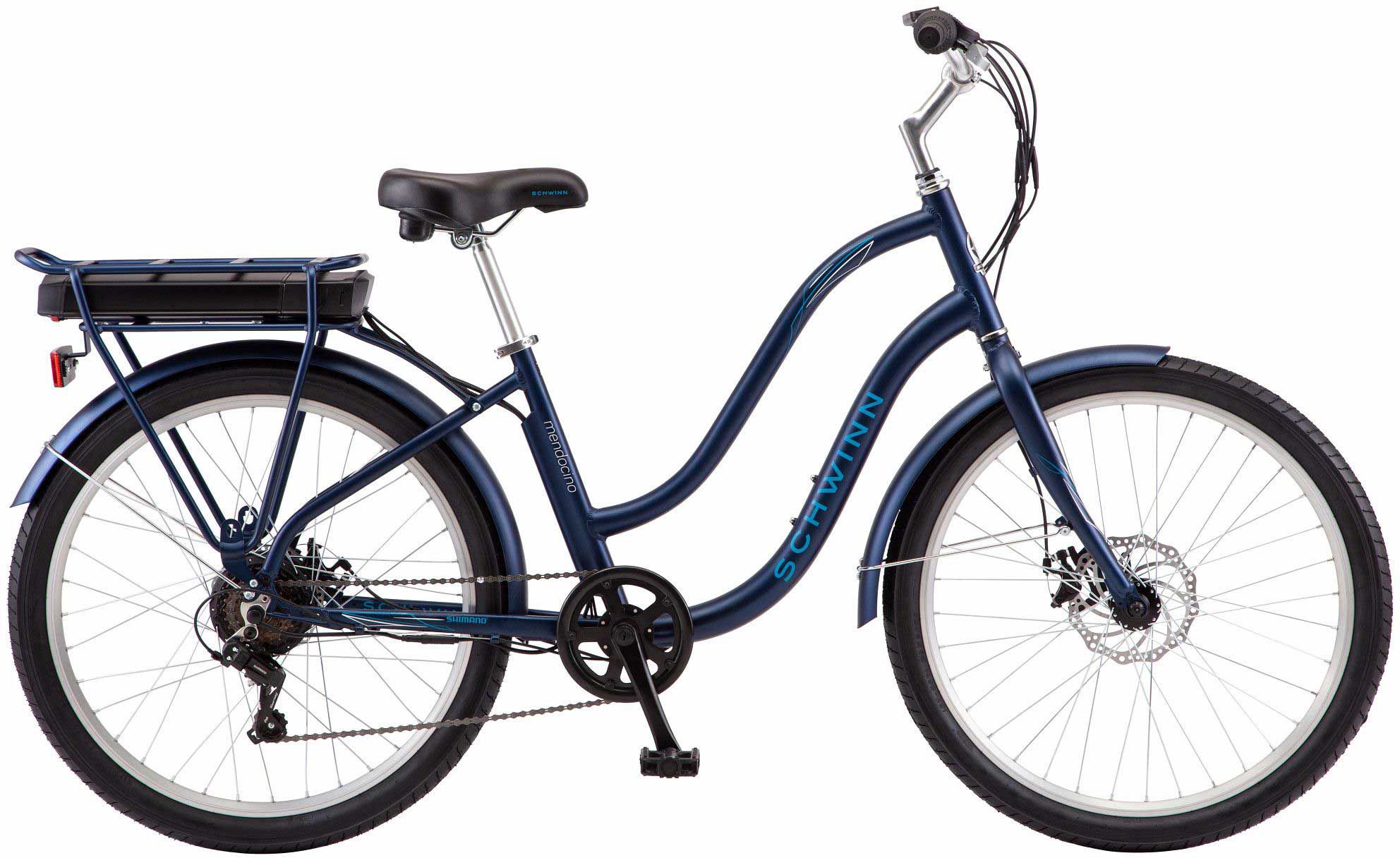

The Schwinn® E-Mendocino eBike is designed with a 250W rear hub motor. You can choose the level of assistance you want behind your pedaling, depending on the type of ride you’re taking. This e-Bike is great for helping you conquer those longer rides and big hills.
Manufacturer may substitute components with components of equal or greater performance level
TECHNOLOGY:
- Pedal assist boost and throttle drive system with 250-watt battery grants you the ability to take on hills and long rides with ease
FEATURES:

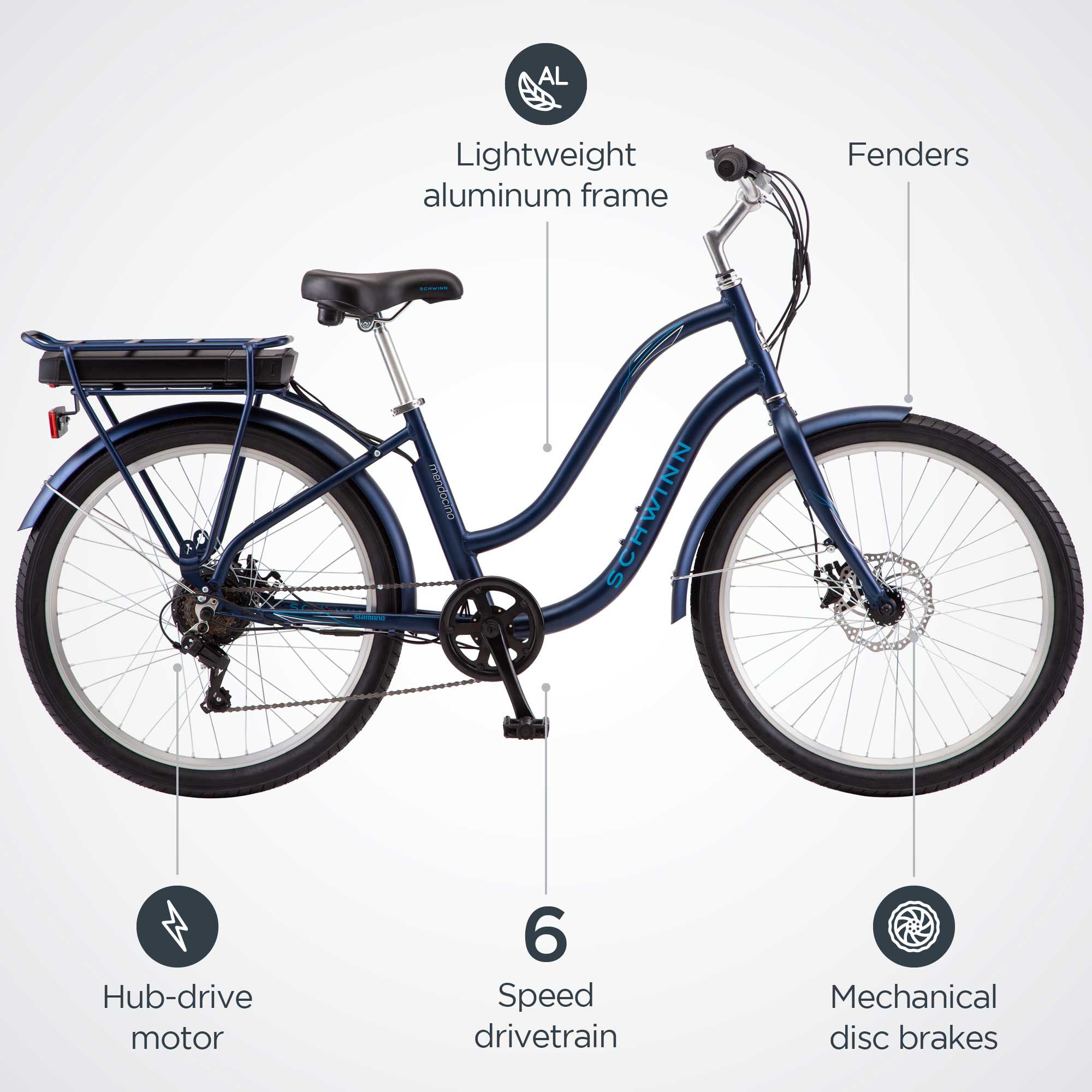

- Designed to be lightweight with a durable 6061 aluminum classic cruiser design frame
- Battery range: Estimated 30+* (*Depending on terrain, pedal usage and assist level assist) with a battery recharge time of 4 hours
- Made with a 250Wh rear hub motor to provide a reliable, gentle assist
- 313Wh battery provides substantial all day assistance

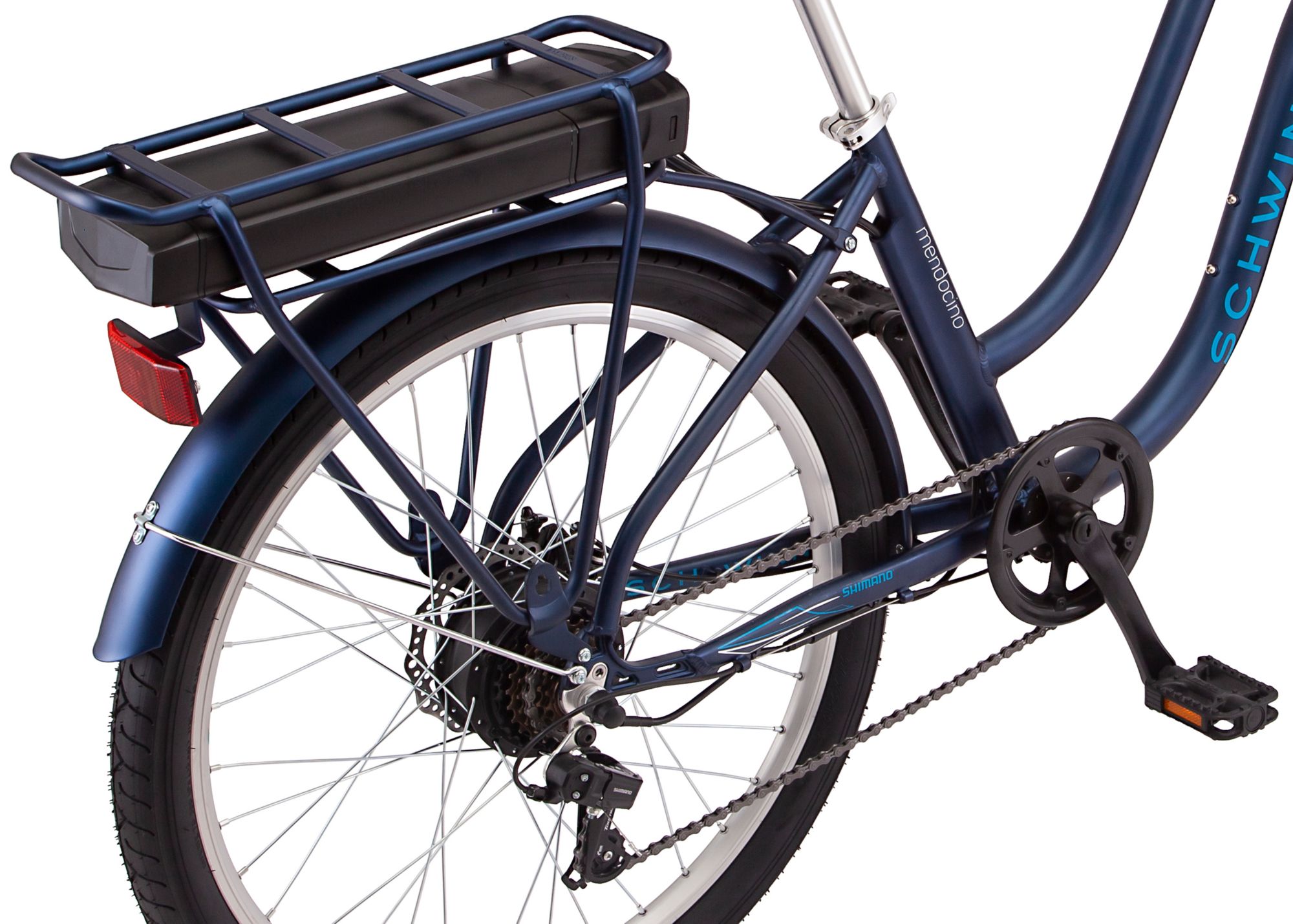

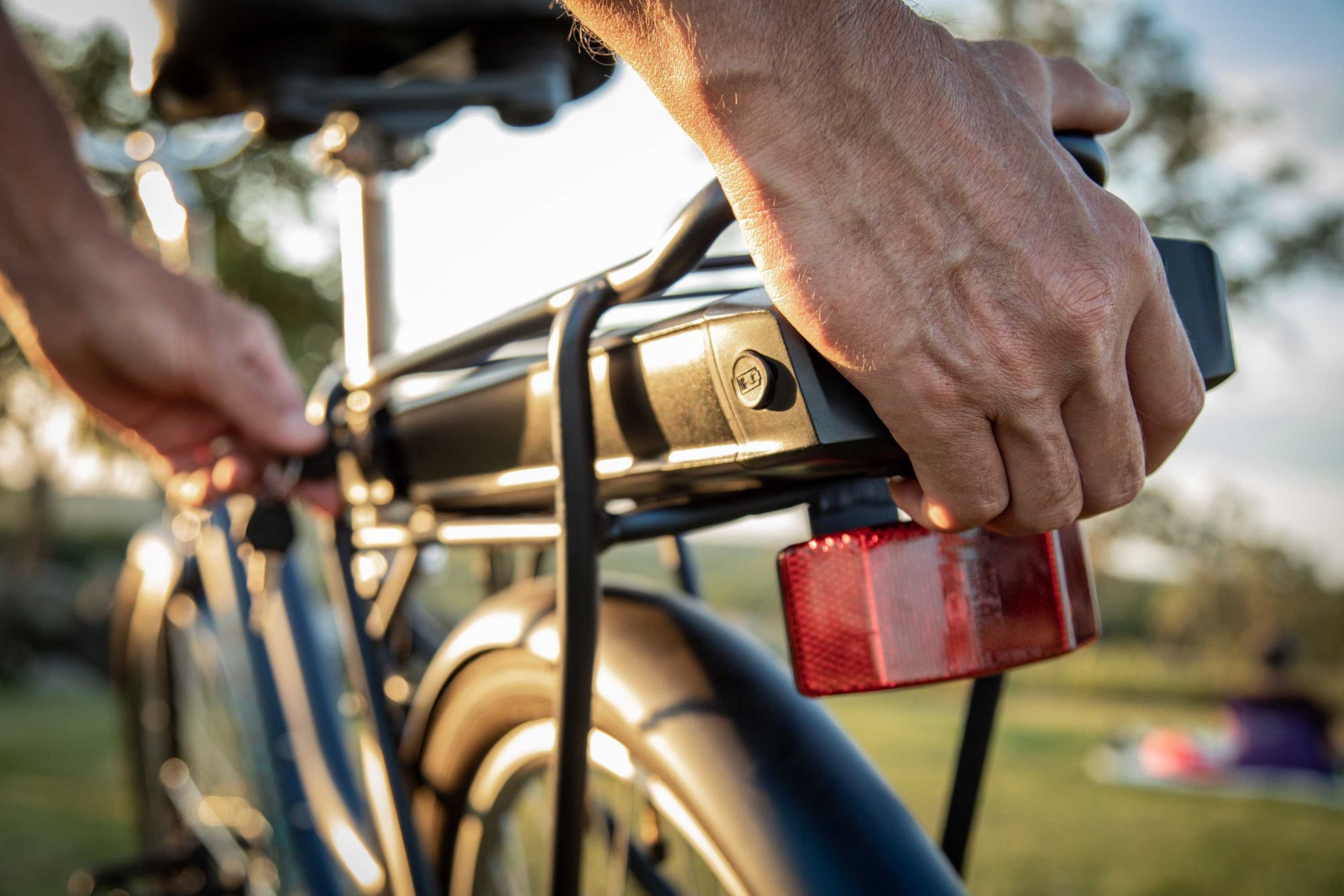

- Rack mounted battery makes it easy to get on and off bike
- Made with a 6 speed drivetrain and Revo twist shifter
- Rear rack and full fenders
- Bike Weight: 49.9 lbs.
- Fits best riders 5’-4”-6’
- E-bike with lightweight aluminum cruiser frame for effortless riding around the neighborhood or at the beach. 26-inch wheels fit riders 64 to 74 inches tall.
- Ride up to 20 MPH with the 250-watt brushless geared hub drive pedal assist motor that gives you a boost while you pedal Choose between several levels of assistance, or ride without it completely – you’re always in control.
- Rack mounted battery makes it easier to get on and off the bike. The battery lasts for approximately 35 – 55 miles on a single charge, depending on conditions. Easily recharge in 4 hours with a standard household outlet and included charging cable.
- 6-speed drivetrain with twist shifter provides smooth gear changes. Mechanical disc brakes deliver all weather stopping power.
- Upright riding position adds comfort while fenders help protect you from splashes. Rear rack provides cargo space.
- 2.125-inch wide tires offer stability and grip.
- SGS certified to ANSI/CAN/UL2849
- Kickstand included
- This model does not include thumb throttle
- FDNY/DCWP Fire Safety Materials
NOTICE: Used Bikes and/or bikes purchased online that have been assembled are non-returnable. We strongly recommend that a professional bicycle mechanic properly assembles, repairs, and maintains the bicycle. DICK’S Sporting Goods will provide free in-store assembly service by a certified technician for any bicycle purchased on our website or in our stores (proof of purchase required). If you choose to assemble the bicycle yourself, DICK’S Sporting Goods is not responsible for injuries or damages resulting from improper assembly.
| Frame Size: | 16″ |
| Wheel Size: | 26″ |
| Frame: | 6061 aluminum, internal cable routing, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube |
| Fork: | Hi-Ten steel, 26″, Hi-Ten steel, 100 mm bolt-on, bolt-on |
| Headset: | Threaded, retainer bearing |
| Crank: | 3-piece, 42T |
| Bottom Bracket: | Cartridge, cartridge, square taper, 68mm |
| Rear Derailleur: | 6-speed gearing |
| Cog Set: | Freewheel, 6-speed, 14-28T |
| Shifters: | Twist shifters, 6-speed |
| Speeds: | 6 |
| Chain: | 6-speed |
| Front Hub: | KT, aluminum, ball bearing, 100 mm bolt-on, 36H, 6-bolt |
| Rear Hub: | Aluminum, sealed-bearing, 10 mm x 135 mm QR, 36H, 6-bolt |
| Spokes: | 14G/13G, steel |
| Rims: | Aluminum, double wall, 19 mm ID, 36H, non tubeless |
| Front Tire: | 26 in x 2.125 in, wire bead |
| Rear Tire: | 26 in x 2.125 in, wire bead |

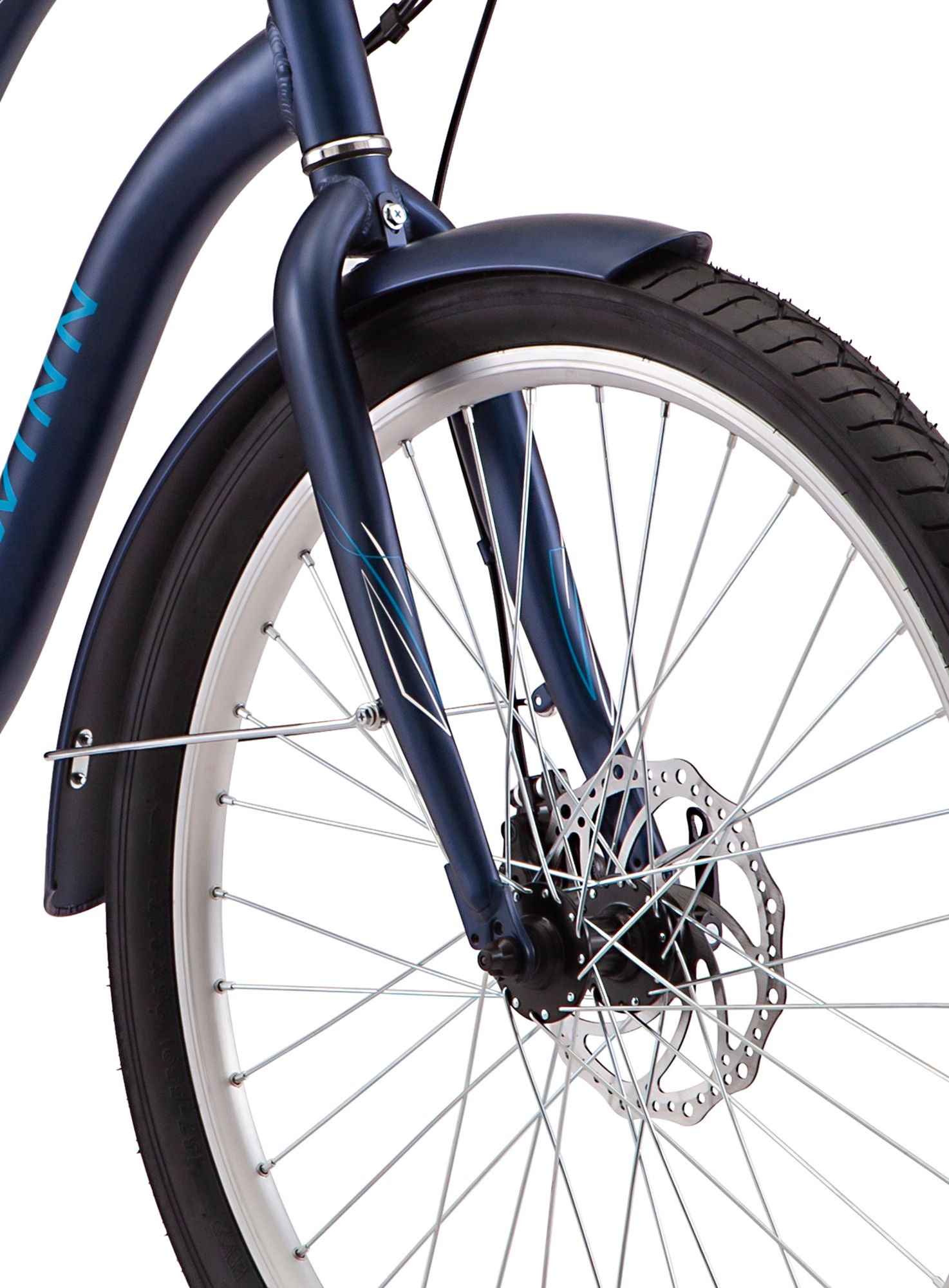

| Brakes: | Mechanical disc, aluminum, 180 mm front, 160 mm rear rotor |
| Brake Levers: | aluminum |
| Pedals: | Nylon |

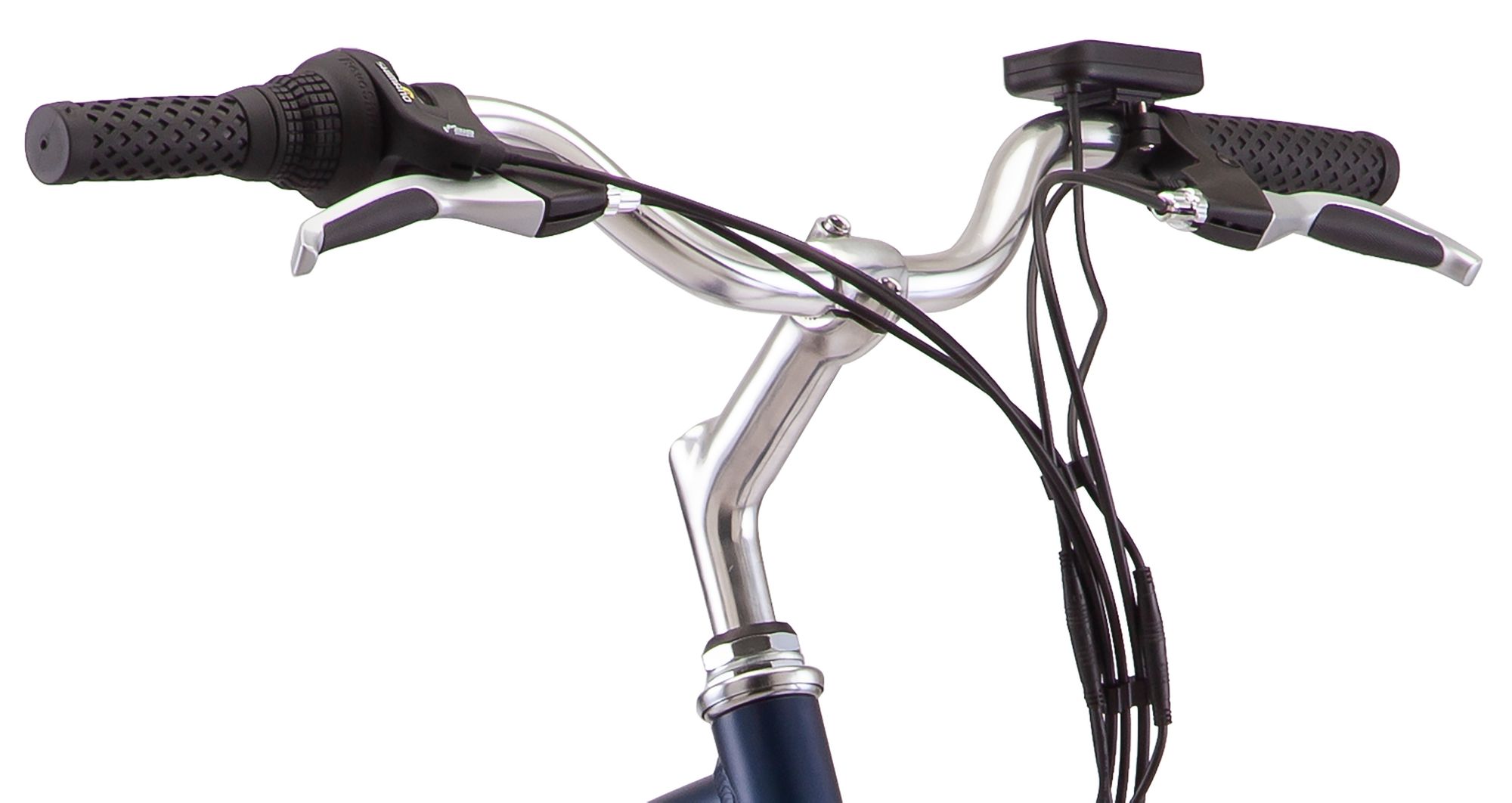

| Handlebar: | Cruiser, Hi-Ten steel, 635 mm width, 50 mm rise, 25.4 mm clamp |
| Grips: | 130 mm |
| Stem: | Aluminum, threaded front load, 30° rise, 25.4 mm clamp |
| Saddle: | Schwinn, steel rails |
| Seatpost: | Aluminum, 400 mm, 20 mm offset |
| Battery Type: | Lithium Ion |
| Motor Torque: | 40Nm |

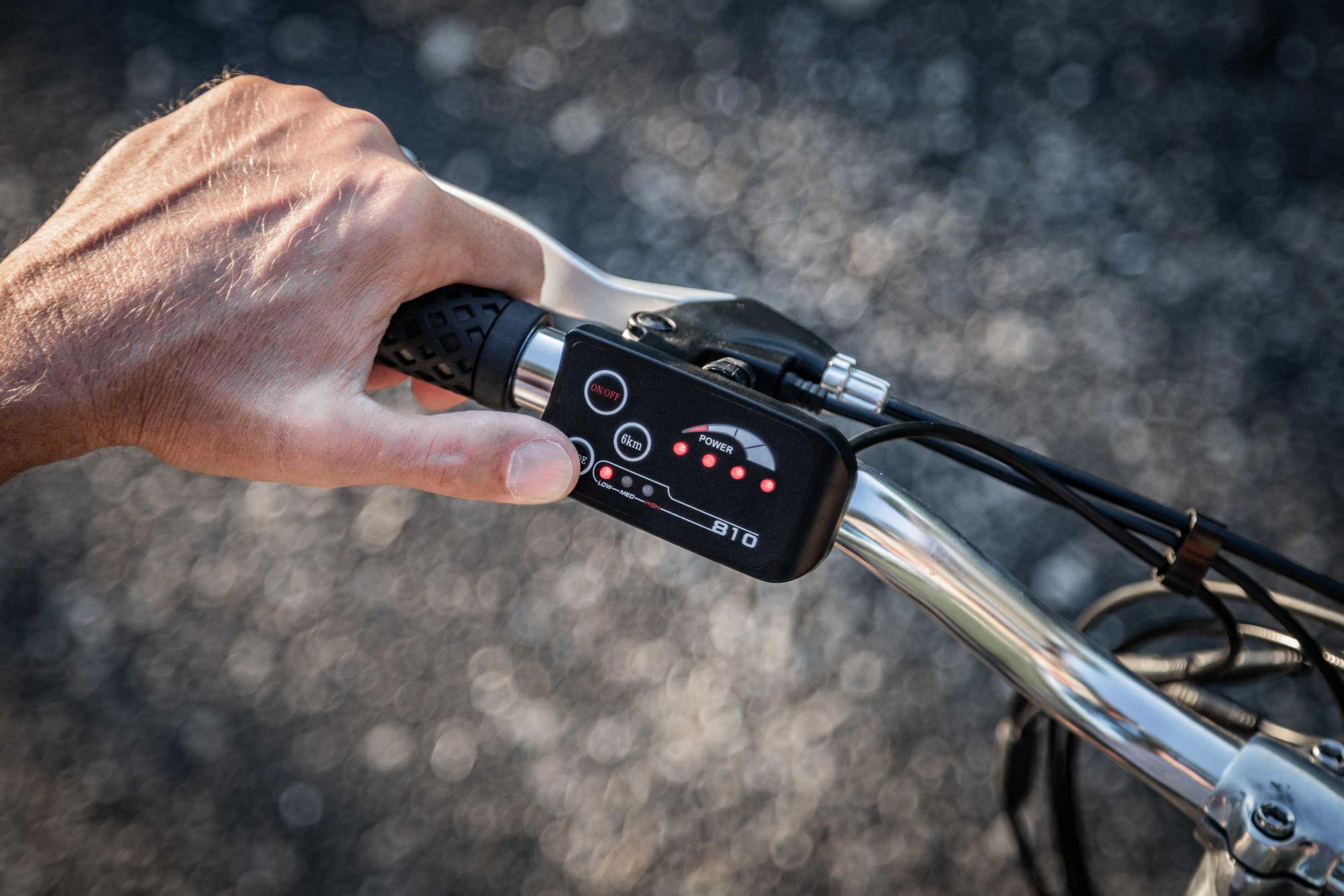

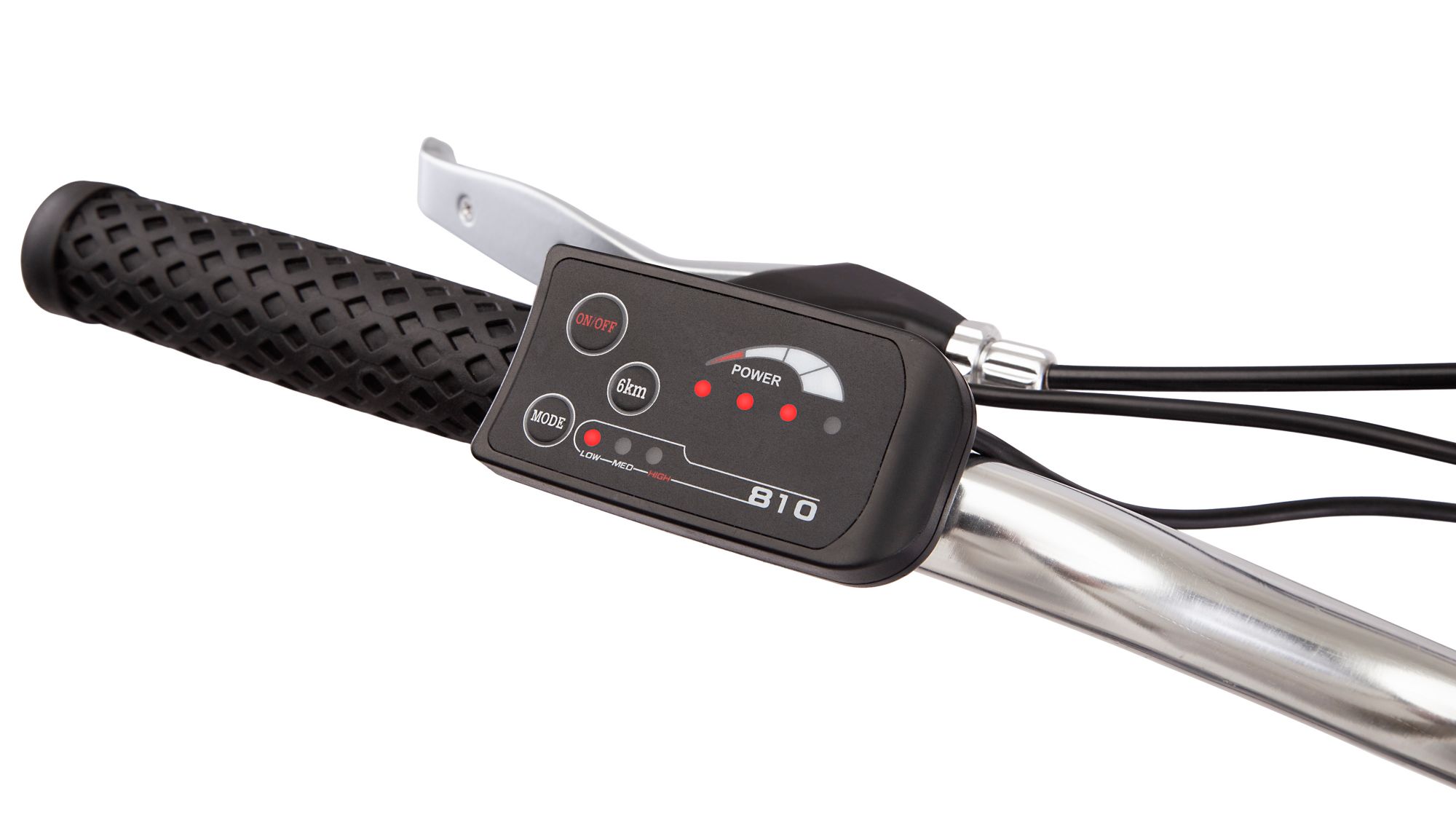

| Display Type: | LCD |
| Motor Wattage: | 250 |
| Color |
Charcoal Gray ,Matte Blue |
|---|
