Salsa Rangefinder CUES 10 29 Mountain Bike
$879.99
| Color | Graphite Gray |
|---|---|
| Size | S, M, L, XL |
| Brand | Salsa |
A confidence-building hardtail, this Salsa bike is great for beginners who want to explore local trails. Its 29 in. wheels get you over rocks and roots. The aluminum frame gives you a stable feel.
Prop 65: WARNING Handling this product will expose you to chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. For further information go to www.P65Warnings.ca.gov. This bike comes with Coast to Coast Support, which includes:
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
REI Co-op Members get more:
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
More about our free adjustments:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
- Offers geometry and specs designed to be the perfect introduction to mountain biking

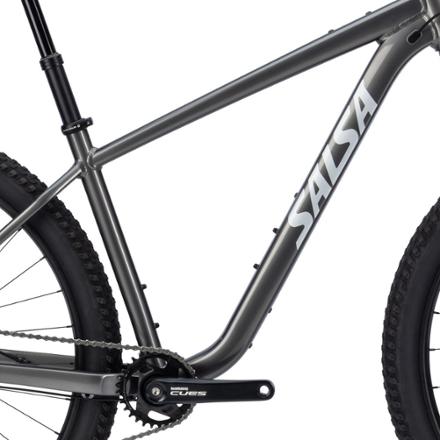

- A blend of proprietary, top-shelf 6061-T6 aluminum double- and triple-butted tubing creates a light, responsive and durable frame with great trail feel
- Long top tube, short stem and 439 mm chainstays provide a stable ride to keep you in control on steep and technical terrain

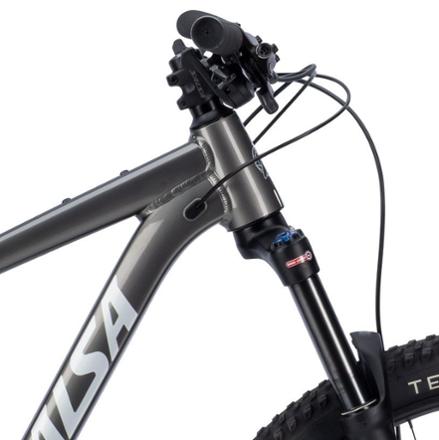

- 120 mm fork soaks up the trail,and a thru-axle keeps the front end stiff for precise handling

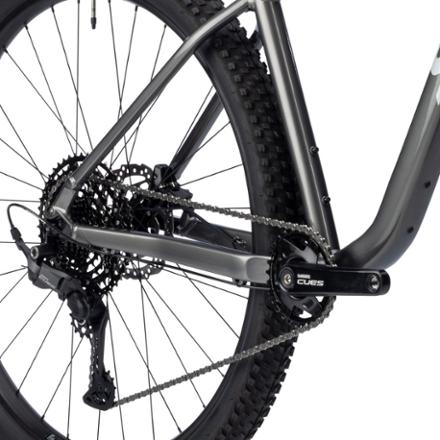

- 1x drivetrain keeps shifting simple with plenty of gear range

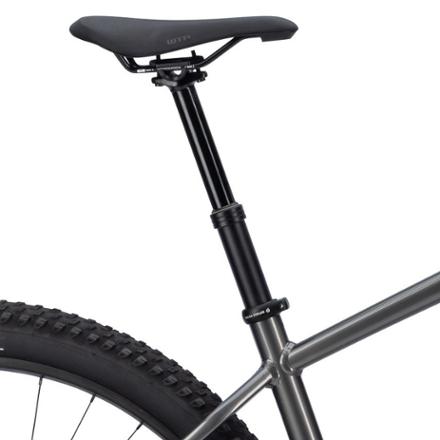

- Drop your saddle at the press of a button to tackle steep descents and technical terrain with the included TranzX dropper post
- Frame also provides stealth dropper post cable routing for a clean look
- Full-length housing improves shifting in poor conditions and increases the time between maintenance intervals
- Hydraulic disc brakes offer confident stopping power
- 2 bottle cages on the inside of the frame, an accessory mount on the underside of the down tube, and top tube mounts (cages and accessories not included)
- Can fit both 29 in. (maximum of 29 x 2.6 in.) and 27.5+ (27.5 x 2.8–3.0 in.) wheels and tires; comes equipped with 2.9 x 2.4 in. wheels and tires
- Pedals not included
- NOTE: Specs and images are subject to change based on component availability
| Best Use | Mountain Biking |
|---|---|
| Frame | 6061-T6 aluminum |
| Step-Through | No |
| Mountain Bike Style | Trail |
| Bike Suspension | Front Suspension |
| Fork | SR Suntour XCR32 |
| Fork Travel | 120 millimeters |

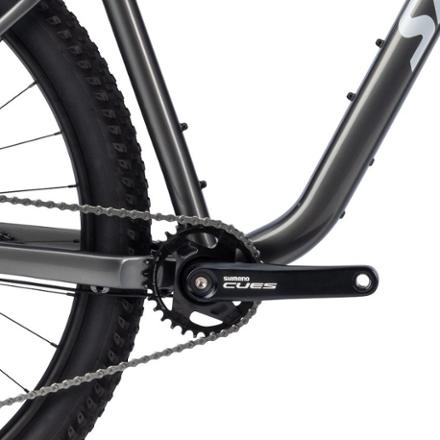

| Crankset | Shimano CUES U4000, 30T |
| Bottom Bracket | Shimano UN101 square taper |
| Shifters | Shimano CUES U6000 |

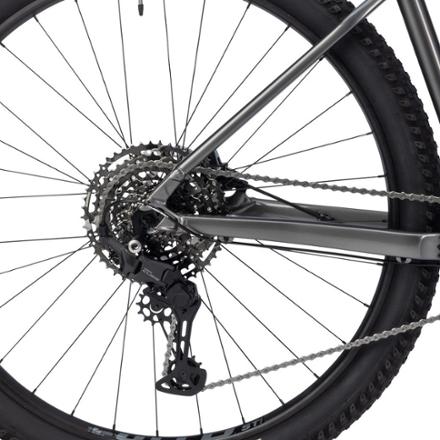

| Rear Derailleur | Shimano CUES U6000 |
| Rear Cogs | Shimano CUES LG400, 11–48T, 10-speed |
| Number of Gears | 10 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano MT410 |
| Brake Levers | Shimano MT401 |
| Rims | WTB ST i30, 32h, 29 in. |
| Front Hub | Shimano TC500 15 x 110 mm |
| Rear Hub | Shimano MT2000 10 x 141 mm |
| Wheel Size | 29 inches |
| Tires | Teravail Drawpoint |
| Tire Width | 2.4 inches |
| Handlebar Shape | Flat Bar |
| Handlebar | TranzX alloy |
| Stem | Salsa Guide 35.0 |
| Seat Post | TranzX YSI34, 100 mm travel, TranzX YSI34, 125 mm travel |
| Dropper Post | Yes |
| Saddle | WTB Solano, medium, steel hybrid fusion |
| Pedals | Not included |
| Headset | FSA Orbit B |
| Chain | Shimano LG500 |
| Weight | 31 lbs. 10 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
Salsa Bikes (C10431)
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 5’3″ – 5’9″ | 5’8″ – 6′ | 5’11” – 6’3″ | 6’2″ – 6’7″ |
| Reach | 421.5 | 444.4 | 470.4 | 494.3 |
| Stack | 606.4 | 611 | 620.1 | 629.3 |
| Effective Top Tube | 589 | 613.3 | 641.9 | 668.5 |
| Seat Tube Center-Top | 381 | 431 | 470 | 508 |
| Standover Height | 708.3 | 747.2 | 779.1 | 808.7 |
| Head Tube Length | 100 | 105 | 115 | 125 |
| Head Tube Angle (degrees) | 68.6 | 68.6 | 68.5 | 68.5 |
| Seat Tube Angle (degrees) | 74.6 | 74.6 | 74.5 | 74.5 |
| Wheelbase | 1124.7 | 1149.6 | 1179.4 | 1207.1 |
| Chainstay | 439 | 439 | 439 | 439 |
Measurements are stated in millimeters unless otherwise indicated.
