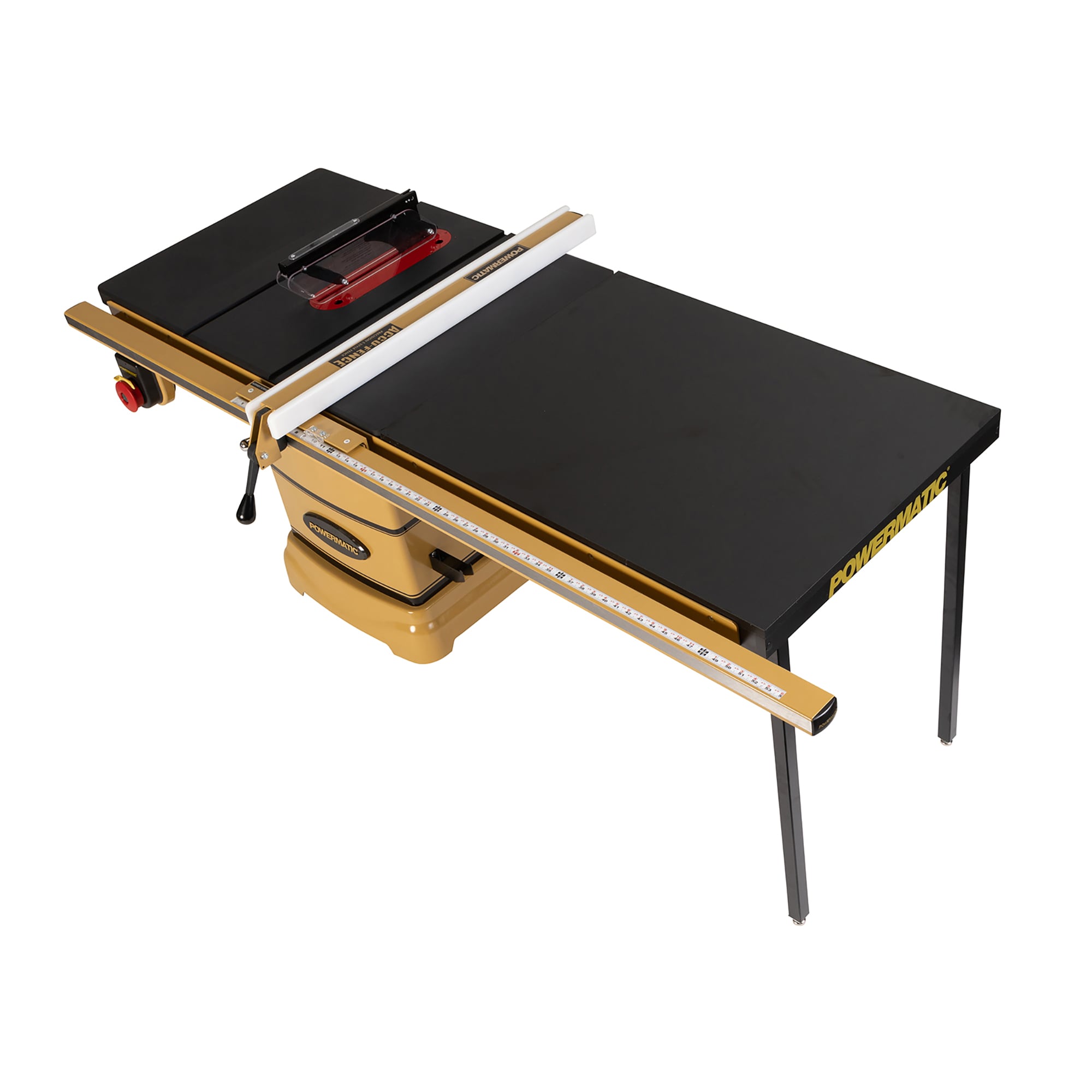

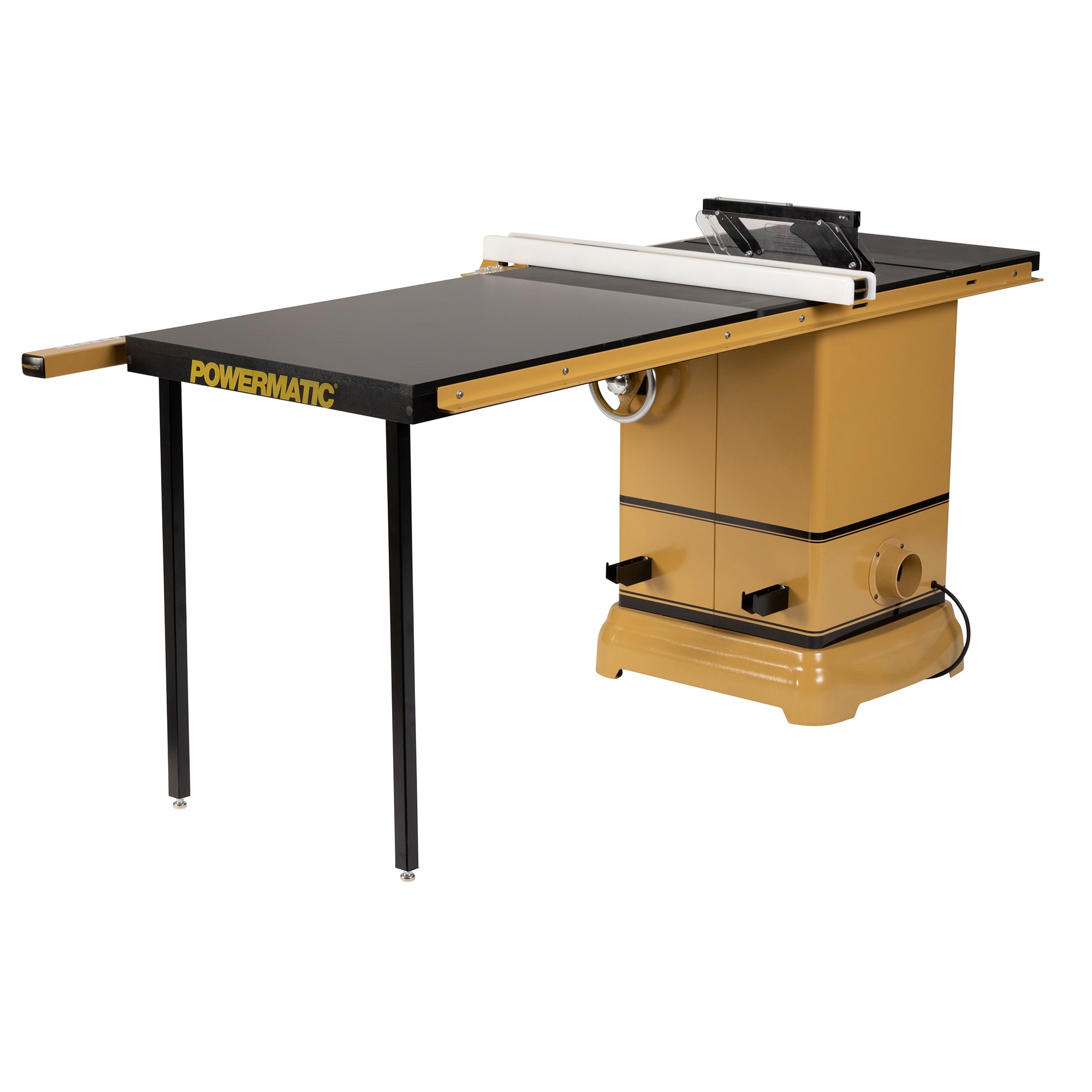

Powermatic PM1000 ArmorGlide 10-in 20 -Amp 115 -Volt Cabinet Table Saw

$3,413.99

Out of stock

Free Shipping Fast delivery within the US
Easy Returns 30-day hassle-free returns
Secure Checkout PayPal & Credit/Debit Cards
SKU: LW-5016325839 Categories: ,
Description

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the award-winning PM2000T table saw sets a new standard for innovation with an array of patented features and massive body design. The ArmorGlide-coated cast iron tables are oversized, and the redesigned arbor lock lever is accessible from above the tabletop to eliminate the need for dual arbor wrenches. The quick-release riving knife design helps reduce the chance of kickback. The blade tilt scale features an integrated digital readout, as well as adjustable angle indicators for repetitive bevel cuts. The redesigned integrated retractable hydraulic caster system lifts your table saw much higher than the previous model to assist when moving over thresholds. A wide stance, heavy-duty box trunnion and concave teeth on the trunnion gears promote easier raising and tilting of saw blade. Poly-V drive belt system results in quieter, more efficient power transfer from the motor to the arbor with virtually no vibration and less heat build-up. The improved dust collection port, with convenient access to the inside of the saw cabinet, makes for simple clean up. The saw has a proprietary safety switch with magnetic interlock, and the stop button can be knee activated.

ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control Miter gauge is built with robust materials and features many positive stops for the most commonly used angles Blade surround and collection hose provide an unobstructed path, maximizing dust collection Arbor lock allows for one handed blade changes with minimal tools Conveniently-located hands-free power switch Ergonomically-designed 7-inch handwheels provide momentum, making blade height and bevel adjustments easy Matching beveled edge between table and extension wings Requires only 115V connection for easy installation

Specifications
General
Series Name

PM1000 ArmorGlide

Type

Cabinet

Blade Material

Carbide-tipped

Dimensions
Arbor Diameter

5/8-in

Bevel Capacity (Degrees)

45

Blade Size (Inches)

10

Cutting Depth (Inches)

3.25

Depth Control

Yes

Height (Inches)

44

Left Rip Capacity (Inches)

12

Maximum Depth at 45 Degrees (Inches)

3.25

Maximum Depth at 90 Degrees (Inches)

3.25

Right Rip Capacity (Inches)

52

Saw Blade Diameter

10-in

Table Height (Inches)

34.25

Table Length (Inches)

20

Table Width (Inches)

27

Weight (lbs.)

330

Features
Amps

20

Auxiliary Handle

No

Battery Included

No

Blade Included

Yes

Caster Platform Included

No

Charger Included

No

Cordless

No

Dust Handling

Port

Hybrid Capable

No

Maximum Blade Speed (RPM)

4200

Micro Adjust Rip Fence

Yes

Portable

No

Repetitive Cut Marking System

Yes

Spindle Lock

Yes

Voltage

115

Worm Drive

Yes

Warranty
Warranty

5-year

Certifications
CA Residents: Prop 65 Warning(s)

Yes

Safety Listing

Not safety listed

Miscellaneous
UNSPSC

23101500
