Pioneer Quantum Ultra Quad 4 zone 35000-BTU Ductless Mini Split Air Conditioner Heat Pump Included with 230-Volt
$3,320.99
Pioneer brand multi split heat pump system, complete set. System components include: one multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer Quantum Ultra multi split systems are available in 5 versions; for 2, 3, 4, and 5 zones.

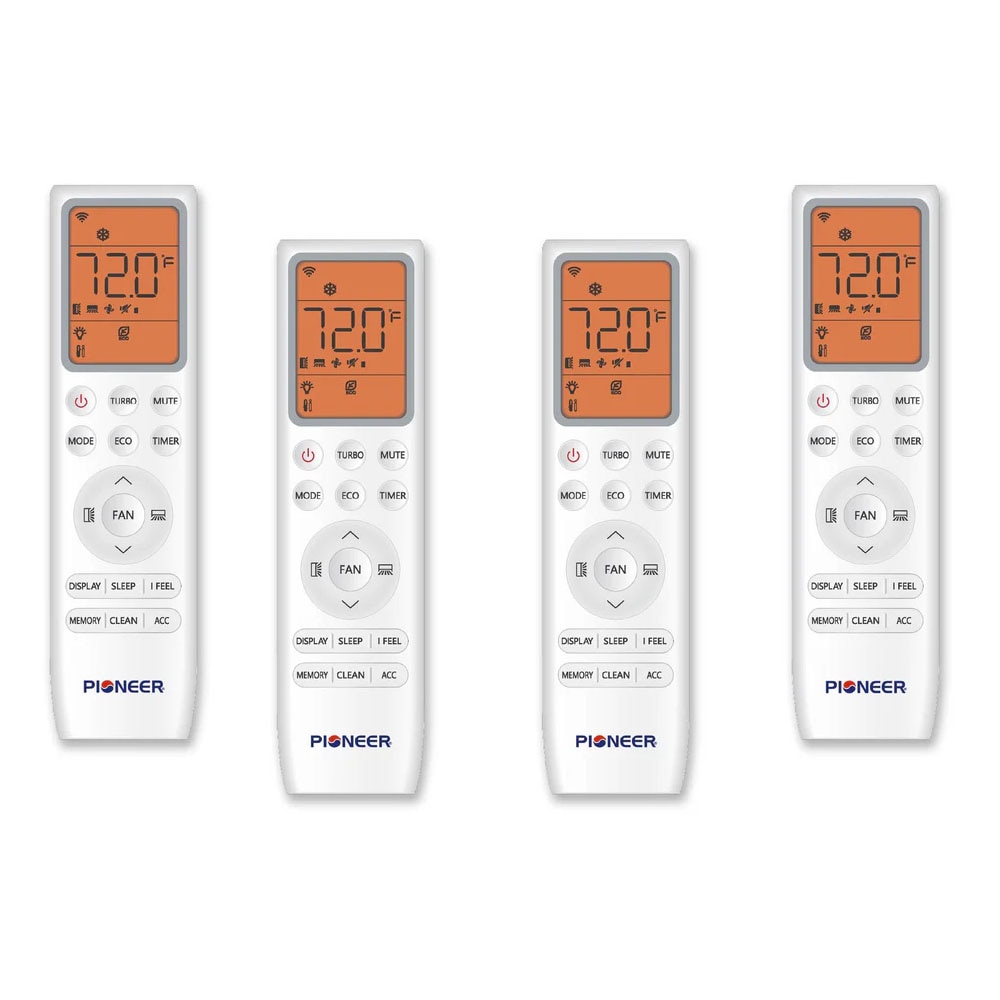

Ultra-high efficiency inverter++ ductless multi split quad (4) zone heat pump system (x4) inside unit cooling capacity: 9,000 BTU/H nominal capacity, condensing system 35,000 BTU/H (range: 5,500 minimum – 41,000 maximum) with 22.5 SEER2/12.0 EER2 efficiency Heating capacity: 36,000 BTU/H nominal (range 5,500 minimum – 41,000 maximum) with 9.5 HSPF2/3.5 COP2 efficiency Voltage: 208 – 230-Volt, 60 hertz, 1 phase (standard household 2 line power, l1-l2-g) Energy-Star Certified and Wi-Fi Enabled Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with wi-fi, insulated flared line set with other installation accessories Ultra low ambient system can heat with high capacity at -13F ambient outdoor temperatures Certified by: ETL, AHRI, DOE for safety, performance and efficiency Pre-charged with eco-friendly R454-B refrigerant to support total combined attached lineset lengths up to 125 ft long
General |
|||
|---|---|---|---|
Color/Finish Family |
White |
Manufacturer Color/Finish |
White |
Series Name |
Quantum Ultra Quad |
Sub-Brand |
Quantum Ultra PMK |
Type |
Flare line set |
Application |
Heating/Cooling |
Control Type |
Electronic |
Filter Type |
Mesh |
Mounting Location |
Wall |
Refrigerant Type |
R-454B |
Number of Tons |
3.5 |
||
Dimensions |
|||
|---|---|---|---|
Air Handler Depth (Inches) |
7.37 |
Air Handler Height (Inches) |
12 |
Air Handler Width (Inches) |
32.25 |
Compressor Depth (Inches) |
18.37 |
Compressor Height (Inches) |
33.5 |
Compressor Width (Inches) |
42.25 |
Cord Length (Feet) |
16 |
Depth (Inches) |
40 |
Height (Inches) |
60 |
Line-set Connection Size |
1/4-in x 3/8-in |
Line-set Length |
16-ft |
Maximum Coverage Area (Sq. Feet) |
2000 |
Weight (lbs.) |
350 |
Width (Inches) |
48 |
Zone Capacity |
4 zone |
Amperage |
15.2 |
Features |
|||
|---|---|---|---|
24 Hour Timer |
Yes |
Auto Cool |
Yes |
Automatic Shut-Off |
Yes |
Cooling BTU Rating (BTU) |
35000 |
Decibel Rating (Highest Setting) |
65 |
Decibel Rating (Lowest Setting) |
30 |
Fan Only Option |
Yes |
Full Load Amperage Requirement (Amps) |
15.2 |
Heat Pump Included |
Yes |
Heating BTU Rating (BTU) |
36000 |
Hub Required |
No |
Kit |
Yes |
Low Voltage Compensation |
No |
Lowe’s Exclusive |
No |
Minimum Outdoor Temperature (Fahrenheit) |
13 |
Multi-Directional Air Control |
Yes |
Noise Rating |
Quiet (45 decibels or below) |
Number of Speeds |
5 |
Oscillation |
Yes |
Overload Protection |
Yes |
Pre-Charged Line Set |
Yes |
Quiet Mode |
Yes |
Remote Control Included |
Yes |
Sleep Mode |
Yes |
Thermostat |
Yes |
Timer |
Yes |
Voice Controlled |
Yes |
Voltage (Volts) |
230 |
Compatibility |
|||
|---|---|---|---|
App Compatibility |
App enabled |
Bluetooth Compatibility |
Yes |
Wi-Fi Compatibility |
Yes |
Works with Amazon Alexa |
Yes |
Works with Android |
Yes |
Works with Apple HomeKit |
No |
Works with iOS |
Yes |
Works with SmartThings |
No |
Works with the Google Assistant |
Yes |
||
Warranty |
|||
|---|---|---|---|
Warranty |
5-year limited |
||
Certifications |
|||
|---|---|---|---|
AHRI Certified |
Yes |
CA Residents: Prop 65 Warning(s) |
Yes |
Energy Efficiency Ratio (E.E.R.) |
12 |
ENERGY STAR Certified |
No |
Safety Listing |
ETL safety listing |
Seasonal Energy Efficiency Ratio (SEER2) |
22 |
Miscellaneous |
|||
|---|---|---|---|
UNSPSC |
40101700 |
||
