Pioneer Diamante Pro 1 zone 9000-BTU Ductless Mini Split Air Conditioner Heat Pump Included with 230-Volt
$854.99
Discover the ideal blend of performance, precision, and control with the WYT-20 Diamante Pro Series from Pioneer. Engineered with a powerful DC inverter compressor and charged with eco friendly R-454B refrigerant, this ductless mini split system achieves efficiency up to 20 SEER2 to help reduce energy use while maintaining comfort year round. The system operates in temperatures as low as -4 F in heating mode and provides reliable cooling during hot weather. Featuring dual directional airflow, the Diamante Pro distributes air evenly throughout the room for improved comfort. A modern flat panel design with LED display offers both style and functionality, and optional wireless internet control through the Pioneer AirLink app module sold separately allows convenient climate control.

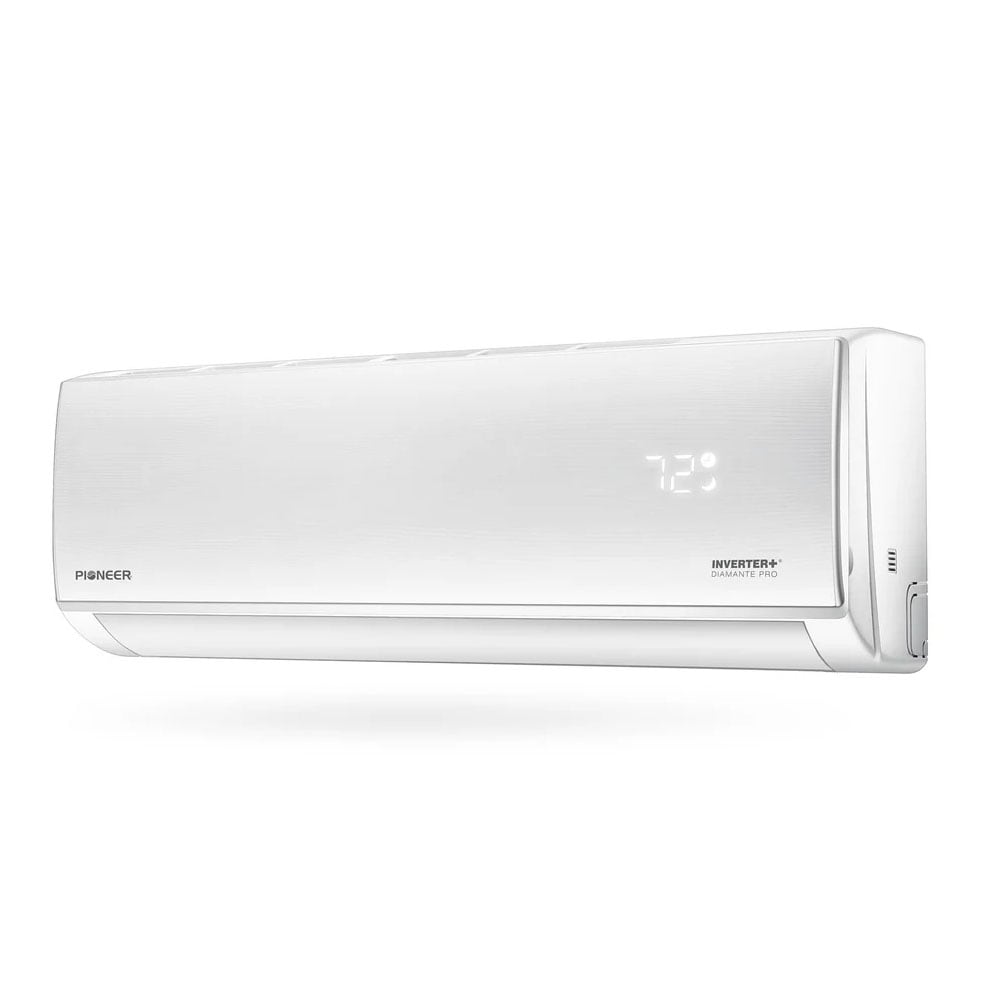

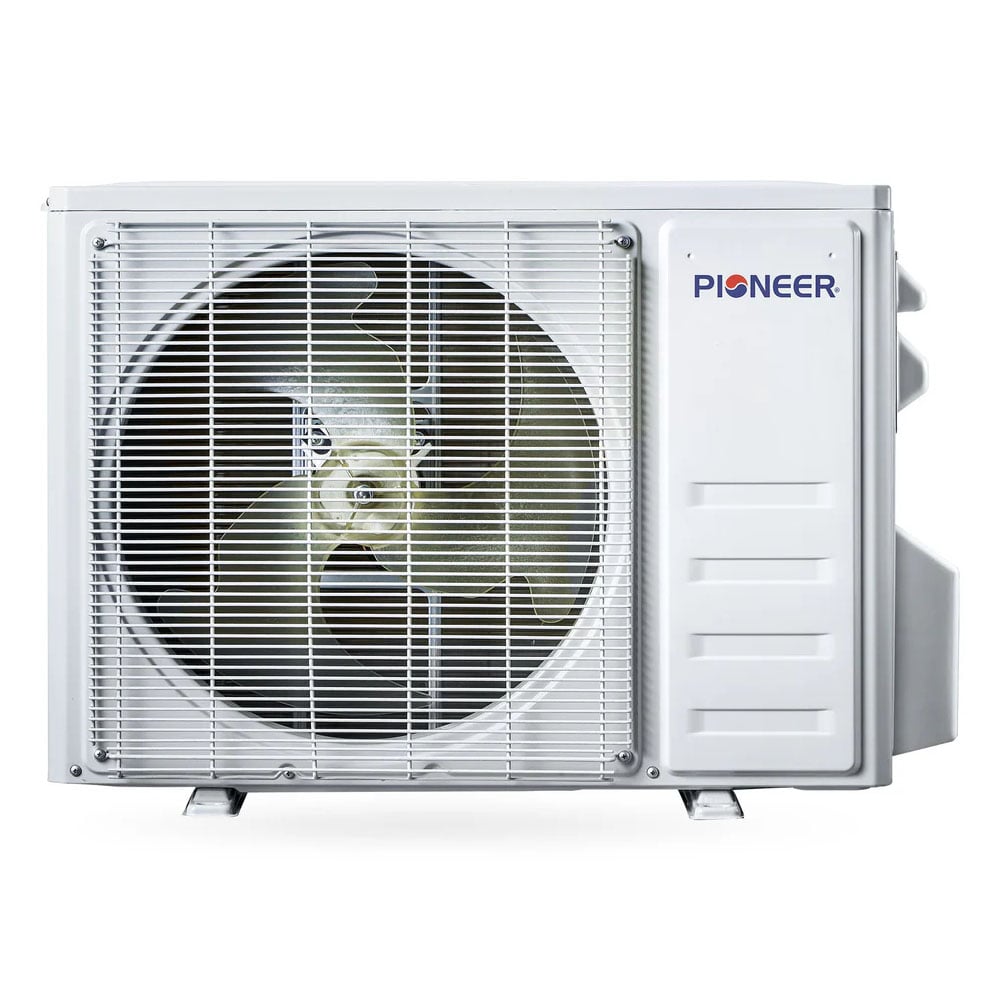

Cooling capacity of 9,000 BTU/hour with 20 SEER2 and 12 EER2 efficiency Heating capacity of 10,000 BTU/H with 10 HSPF2 and 3.81 COP2 efficiency Voltage: 208V – 230V, 60Hz, 1Ph Includes indoor fan coil, outdoor condenser, wireless remote with holder, 16 ft line set with installation accessories and vibration absorber feet for condenser. Unsurpassed support hotline covers installation, use, troubleshooting, warranty and parts issues Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption Certified by ETL, AHRI, DOE for safety, performance and efficiency Diamante Pro series carries a full line of low-ambient wall-mounted mini splits with capacities ranging from 9,000 BTU/hour to 36,000 BTU/hour for various residential and light commercial applications R454B pre-charged outdoor unit accommodating line lengths up to 25 ft
General |
|||
|---|---|---|---|
Color/Finish Family |
White |
Manufacturer Color/Finish |
White |
Series Name |
Diamante Pro |
Sub-Brand |
Diamante WYT-20 |
Type |
Flare line set |
Application |
Heating/Cooling |
Control Type |
Electronic |
Filter Type |
Mesh |
Mounting Location |
Wall |
Refrigerant Type |
R-454B |
Number of Tons |
.75 |
||
Dimensions |
|||
|---|---|---|---|
Air Handler Depth (Inches) |
8 |
Air Handler Height (Inches) |
11.5 |
Air Handler Width (Inches) |
31.88 |
Compressor Depth (Inches) |
11.5 |
Compressor Height (Inches) |
19.38 |
Compressor Width (Inches) |
31 |
Cord Length (Feet) |
16 |
Depth (Inches) |
20 |
Height (Inches) |
40 |
Line-set Connection Size |
1/4-in x 3/8-in |
Line-set Length |
16-ft |
Maximum Coverage Area (Sq. Feet) |
350 |
Weight (lbs.) |
160 |
Width (Inches) |
40 |
Zone Capacity |
1 zone |
Amperage |
3.4 |
Features |
|||
|---|---|---|---|
24 Hour Timer |
Yes |
Auto Cool |
Yes |
Automatic Shut-Off |
Yes |
Cooling BTU Rating (BTU) |
9000 |
Decibel Rating (Highest Setting) |
54 |
Decibel Rating (Lowest Setting) |
29 |
Fan Only Option |
Yes |
Full Load Amperage Requirement (Amps) |
3.4 |
Heat Pump Included |
Yes |
Heating BTU Rating (BTU) |
10000 |
Hub Required |
No |
Kit |
Yes |
Low Voltage Compensation |
No |
Lowe’s Exclusive |
No |
Minimum Outdoor Temperature (Fahrenheit) |
4 |
Multi-Directional Air Control |
Yes |
Noise Rating |
Quiet (45 decibels or below) |
Number of Speeds |
5 |
Oscillation |
Yes |
Overload Protection |
Yes |
Pre-Charged Line Set |
Yes |
Quiet Mode |
Yes |
Remote Control Included |
Yes |
Sleep Mode |
Yes |
Thermostat |
Yes |
Timer |
Yes |
Voice Controlled |
No |
Voltage (Volts) |
230 |
Compatibility |
|||
|---|---|---|---|
Bluetooth Compatibility |
No |
Wi-Fi Compatibility |
No |
Works with Amazon Alexa |
No |
Works with Android |
No |
Works with Apple HomeKit |
No |
Works with iOS |
No |
Works with SmartThings |
No |
Works with the Google Assistant |
No |
Warranty |
|||
|---|---|---|---|
Warranty |
5-year limited |
||
Certifications |
|||
|---|---|---|---|
AHRI Certified |
Yes |
CA Residents: Prop 65 Warning(s) |
Yes |
Energy Efficiency Ratio (E.E.R.) |
12 |
ENERGY STAR Certified |
No |
Safety Listing |
ETL safety listing |
Seasonal Energy Efficiency Ratio (SEER2) |
20 |
Miscellaneous |
|||
|---|---|---|---|
UNSPSC |
40101700 |
||
