ModernLuxe 63CFM Refrigerated Air Dryer for 10HP 15HP Compressors 1PHASE 115V Refrigerated Air Compressor Dryer Compressed Air Systems Industrial Refrigerated Compressed Air Dryer

For any pre-sale and after-sale questions about our products, you are welcome to contact us by lowes@gigacloudtech.com. We promise to reply you within 12h.

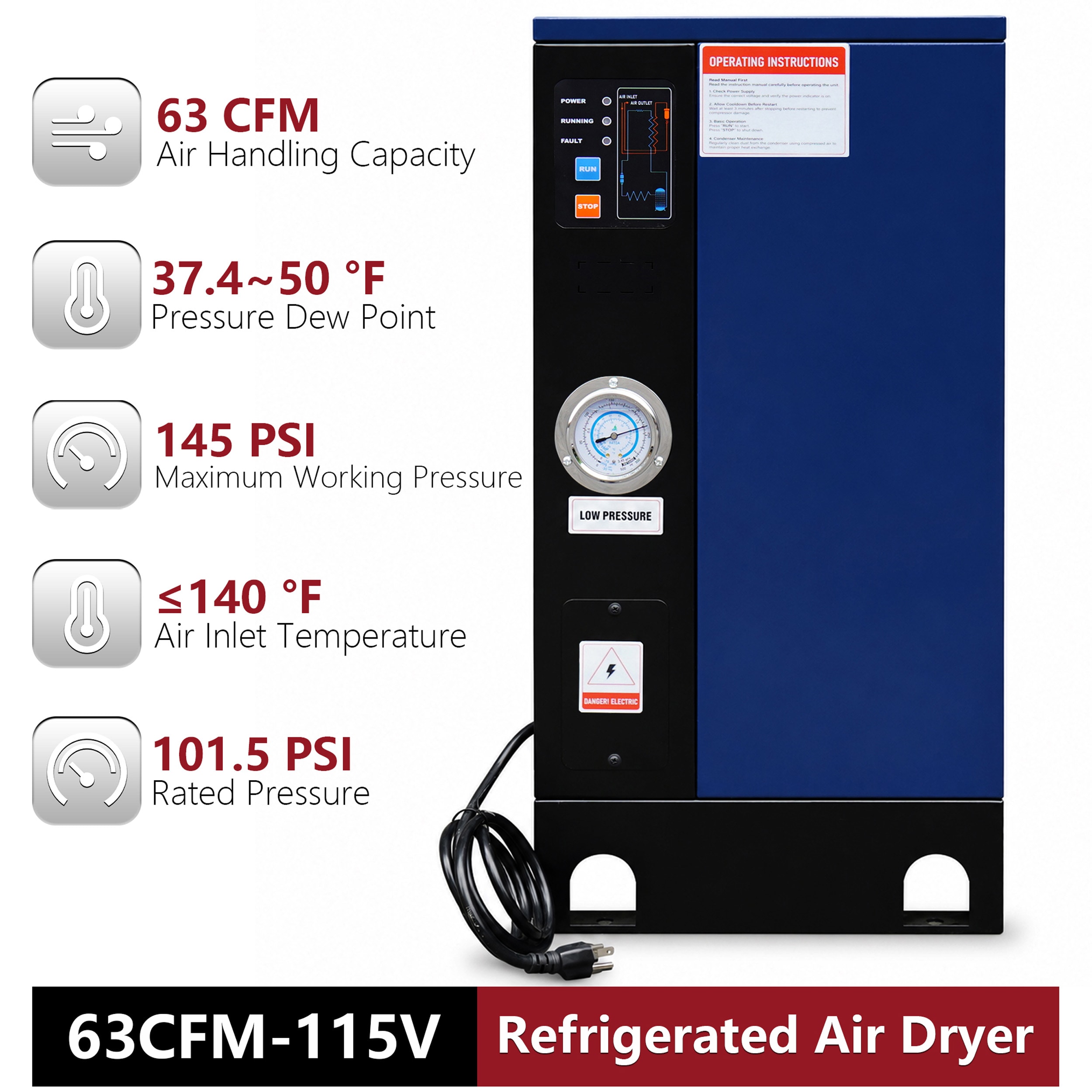

63CFM Refrigerated Air Dryer 1Phase 115V For Air Compressor
Air handling capacity:63CFM

Pressure Dew Point:37.4-50°F

Standard Working Pressure:101.5PSI

Maximum Working Pressure:145PSI

Air inlet temperature:≤140°F

Ambient Temperature:≤100.4°F

Adaptation to the work system:Continuous work

Pressure Loss:≤2.9PSI

Blowdown valve:Electronic blowdown valve

Cooling method:Air cooling

Refrigerant:R410a

power supply V/PH/Hz:115V AC, 1 PHASE, 60HZ

Cooling power:0.5HP

Fan power:50W

Import and export pipe size:NPT 3/4″

Product Dimension:23.22 x 13.78 x 25.59 in

Net Weight:92 lbs

Pacakge Dimension:25.59 x 15.35 x 31.88 in

Gross Weight:121 lbs

63 CFM Refrigerated Air Dryer for 10 HP and 15 HP Compressors, NPT 3/4″, 115V 1-Phase 60HZ: Designed for industrial and workshop compressed air systems, this 63 CFM refrigerated air dryer is engineered to remove moisture efficiently under continuous operating conditions and high humidity environments;With an air handling capacity of 63 CFM and a pressure dew point range of 37;4–50°F, the dryer helps protect pneumatic tools and downstream equipment from corrosion, condensation, and performance loss; It supports a standard working pressure of 101;5 PSI and a maximum working pressure of 145 PSI, making it suitable for most industrial compressed air systems;This unit is specifically matched for air compressors in the 10 HP and 15 HP range, including rotary screw compressors and high-duty piston compressors; Standard NPT 3/4″ inlet and outlet connections allow easy integration without airflow restriction;Powered by 115V / 1-Phase / 60Hz, the dryer is ideal for workshops, automotive service facilities, and light industrial environments where three-phase power is not available; Engineered for Stable Moisture Removal: This refrigerated air dryer features a compact, service-friendly structure designed for continuous operation; The user-friendly control panel allows operators to monitor system status easily during operation;Standard NPT 3/4″ air inlet and outlet ports ensure compatibility with common compressed air pipelines; An electronic blowdown valve automatically discharges condensed moisture, eliminating the need for manual drainage and helping maintain consistent drying efficiency;Designed for continuous duty, it is well suited for industrial and workshop compressed air applications; Air handling capacity: 63 CFM, pressure dew point: 37.4-50°F; Standard working pressure: 101.5 PSI, maximum working pressure: 145 PSI; Air inlet temperature: ≤140°F, ambient temperature: ≤100.4°F; Adaptation to the work system: continuous work, import and export pipe size: NPT 3/4″; 63CFM refrigerated air dryer for 10HP & 15HP compressors;
