240CFM Refrigerated Air Dryer 3Phase 460V For Air Compressor

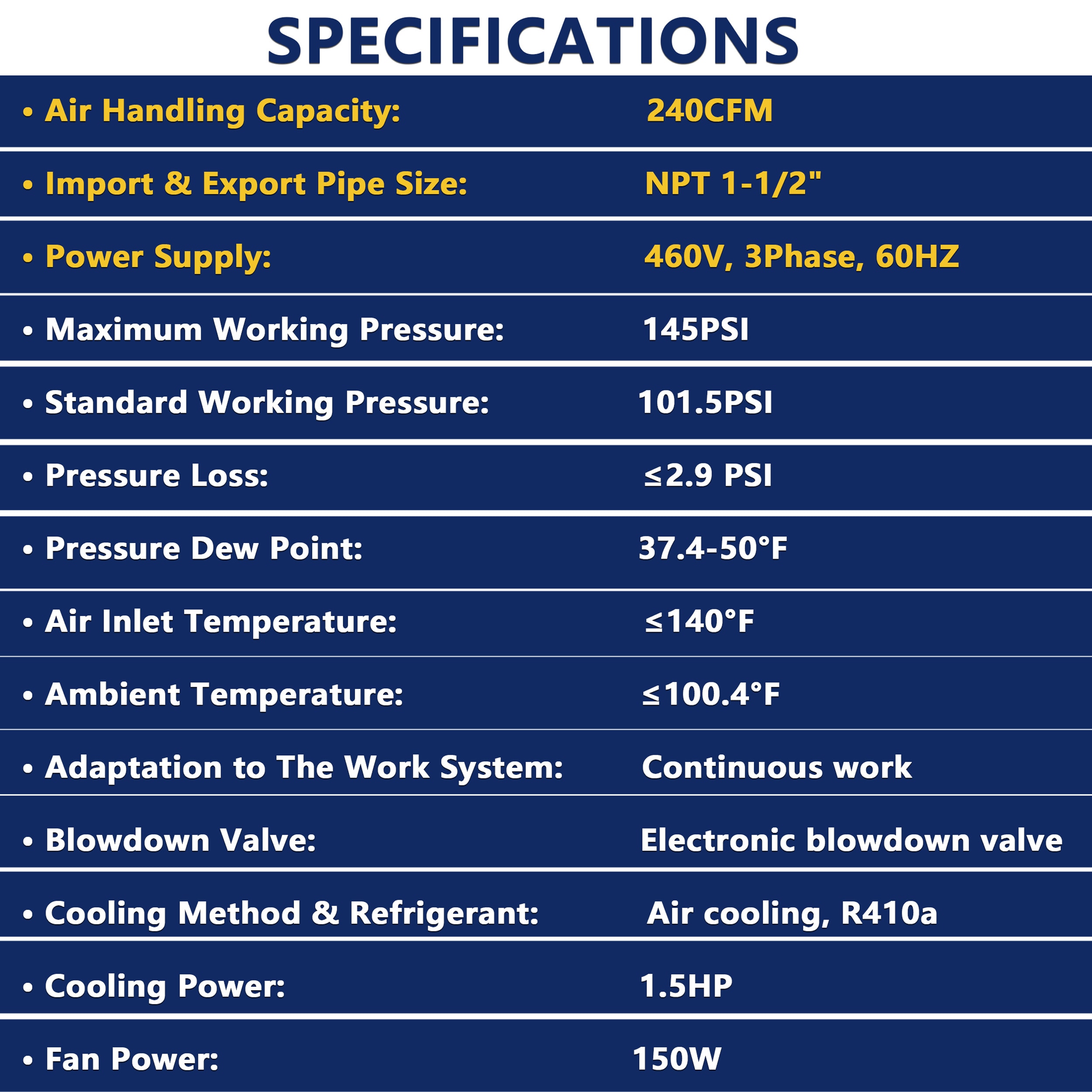

Air handling capacity:240 CFM

Pressure Dew Point:37.4-50°F

Standard Working Pressure:101.5 PSI

Maximum Working Pressure:145 PSI

Air inlet temperature:≤140°F

Ambient Temperature:≤100.4°F

Adaptation to the work system:Continuous work

Pressure Loss:–

Blowdown valve:Electronic blowdown valve

Cooling method:Air cooling

Refrigerant:R410a

power supply V/PH/Hz:460V 3Phase 60HZ

Cooling power:1.5 HP

Fan power:150 W

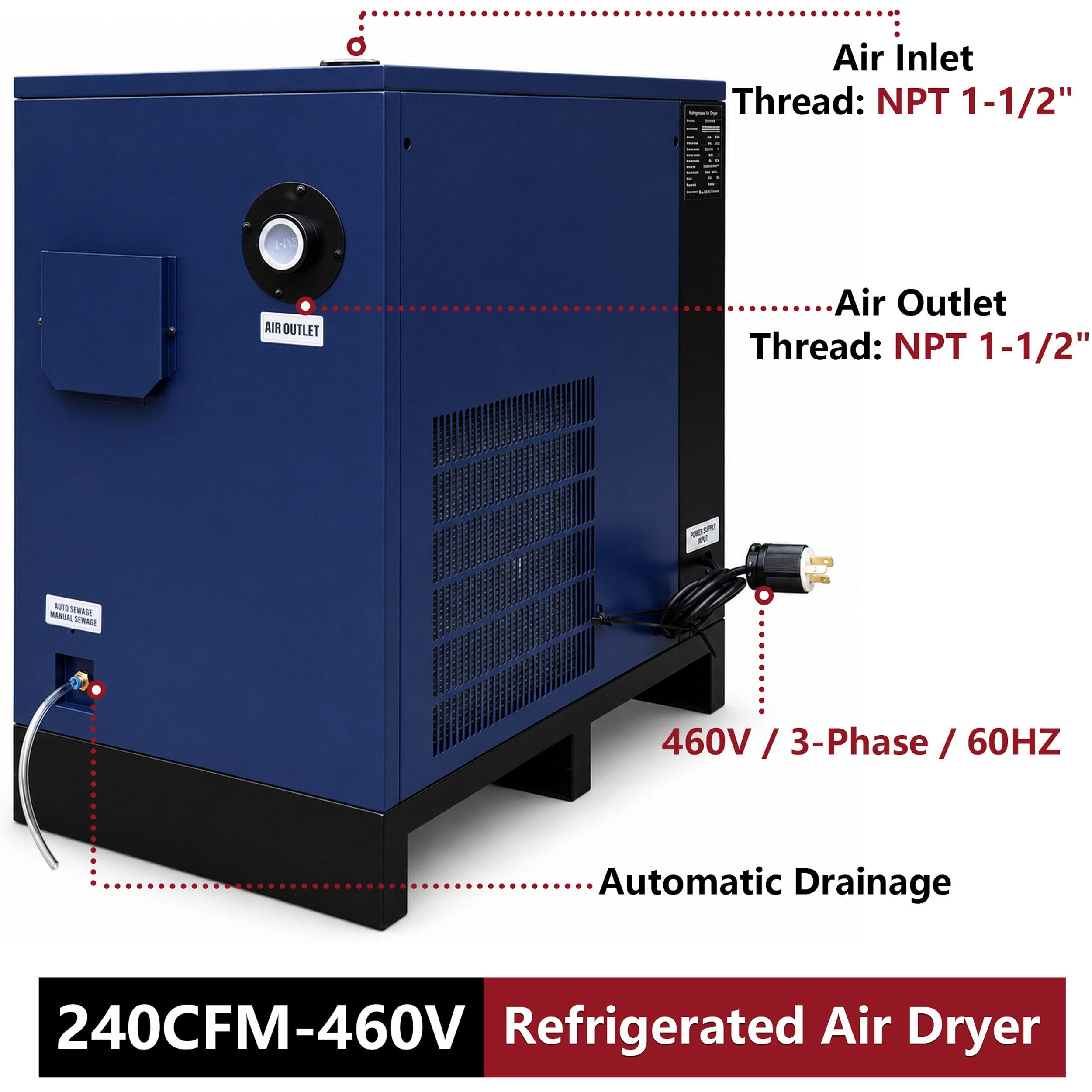

Import and export pipe size:NPT 1 1/2″

Product Dimension:35.03 x 18.89 x 33.86 in

Net Weight:280 lbs

Pacakge Dimension:38.19 x 21.65 x 40.94 in

Gross Weight:324.5 lbs

240 CFM Refrigerated Air Dryer for 50HP Compressors, NPT 1 1/2″, 460V 3-Phase 60HZ: Designed for industrial and workshop compressed air systems, this 240 CFM refrigerated air dryer is engineered to handle high airflow and continuous-duty operation under demanding working conditions;With an air handling capacity of 240 CFM and a pressure dew point range of 37;4–50°F, the dryer effectively removes moisture from compressed air lines; By reducing condensation and water vapor, it helps protect pneumatic tools, CNC equipment, air-operated machinery, and downstream components from corrosion, clogging, and premature wear; The unit supports a standard working pressure of 101;5 PSI and a maximum working pressure of 145 PSI, covering the majority of industrial compressed air applications;This refrigerated air dryer is specifically matched for 50 HP air compressors, including rotary screw compressors and high-duty piston compressors operating at standard industrial pressures; It is suitable for continuous production environments such as workshops, manufacturing lines, automotive facilities, and fabrication shops where stable air quality is required;Equipped with standard NPT 1 1/2″ inlet and outlet connections, the dryer ensures unrestricted airflow and seamless integration into existing compressed air systems; Powered by 460V / 3-Phase / 60Hz, it delivers high-capacity drying performance for industrial facilities that operate three-phase electrical systems; Engineered for Stable Moisture Removal in Continuous Operation: This refrigerated air dryer features a compact, industrial-grade structure designed for continuous operation and long-term reliability; The user-friendly control panel allows operators to easily monitor system status, operating conditions, and overall performance during daily use;Standard NPT 1 1/2″ air inlet and outlet ports provide compatibility with higher-capacity compressed air pipelines commonly found in industrial systems; An electronic blowdown valve automatically discharges condensed moisture during operation, eliminating the need for manual drainage and helping maintain consistent drying efficiency;Designed for industrial environments, this dryer delivers reliable moisture control for mid- to high-capacity compressed air systems, supporting continuous production while protecting downstream equipment; “Typical Air System Configuration: Air Compressor + Air Storage Tank + Refrigerated Air Dryer Setup A typical compressed air system includes a screw air compressor, an air storage tank, filtration, and a refrigerated air dryer; Air is compressed, stored, filtered, and then dried before being delivered to downstream equipment;” Air handling capacity: 240 CFM, pressure dew point: 37.4-50°F; Standard working pressure: 101;5 PSI, maximum working pressure: 145 PSI; Air inlet temperature: ≤140°F, ambient temperature: ≤100.4°F; Adaptation to the work system: continuous work, import and export pipe size: NPT 1 1/2″; 240CFM Refrigerated Air Dryer for 50HP Compressors;
