ModernLuxe 20HP Rotary Screw Air Compressor 74CFM 125PSI 230V 3PHASE 60HZ Fixed Speed Compressor IndustrialGrade Heavy Duty Air Compressed System

For any pre-sale and after-sale questions about our products, you are welcome to contact us by lowes@gigacloudtech.com. We promise to reply you within 12h.

Rated Power and Air Output

This rotary screw air compressor is configured with a 20HP motor and operates at a rated exhaust pressure of 125 PSI. With an air displacement of approximately 74 CFM, it delivers reliable compressed air for medium-duty industrial operations. Configured for 230V / 60Hz / 3-phase power, the system aligns with common industrial power standards.

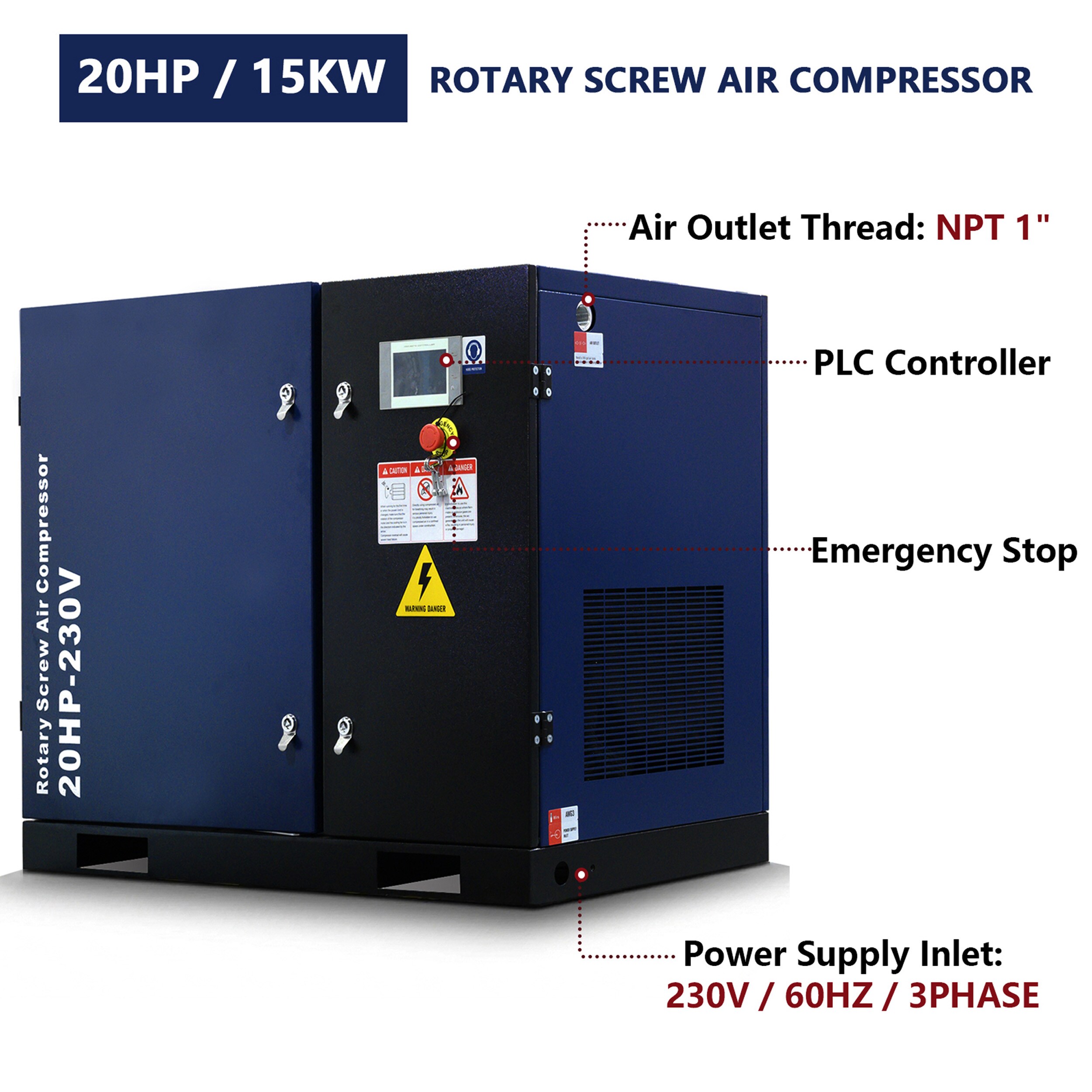

20HP Rotary Screw Air Compressor – 74 CFM, 125 PSI, 230V 3-Phase 60HZ, Industrial-Grade

A typical compressed air system includes a screw air compressor, an air storage tank, filtration, and a refrigerated air dryer. Air is compressed, stored, filtered, and then dried before being delivered to downstream equipment.

Specification
air displacement:74 CFM

Exhaust pressure:125 PSI

Setting pressure of safety valve:130.5 PSI

Aspiration state temperature:0～104°F

Cooling method:forced air cooling

Air volume adjustment method:Upload and Uninstall

Discharge temperature:≤A-temperature+59°F

Transmission mode:Coupling direct connection

Oil content of discharged air:≤3pmm

Host motor power:15 kw / 20 HP

Host motor Speed:3500 r/min

Power supply:230 V / 60 HZ / 3 PHASE

Start method:Star Triangle Start

Noise:62±2

Product Dimension:44.09 x 25.98 x 36.22 in

Net Weight:558 lbs

Pacakge Dimension:47.24 x 29.13 x 43.30 in

Gross Weight:665 lbs

pipe diameter:NPT 1″

Max Current:55.8A

1; Air displacement: 74 CFM, exhaust pressure: 125 PSI; 2; Host motor speed: 3500 r/min, start method: star triangle start; 3; Host motor power: 15 kw / 20 HP, power supply: 230V/ 60HZ / 3 PHASE; 4; Pipe diameter: NPT 1inch, max current: 55;8 A, aspiration state temperature: 0～104°F; 5; Discharge temperature: ≤A-temperature+59°F;
