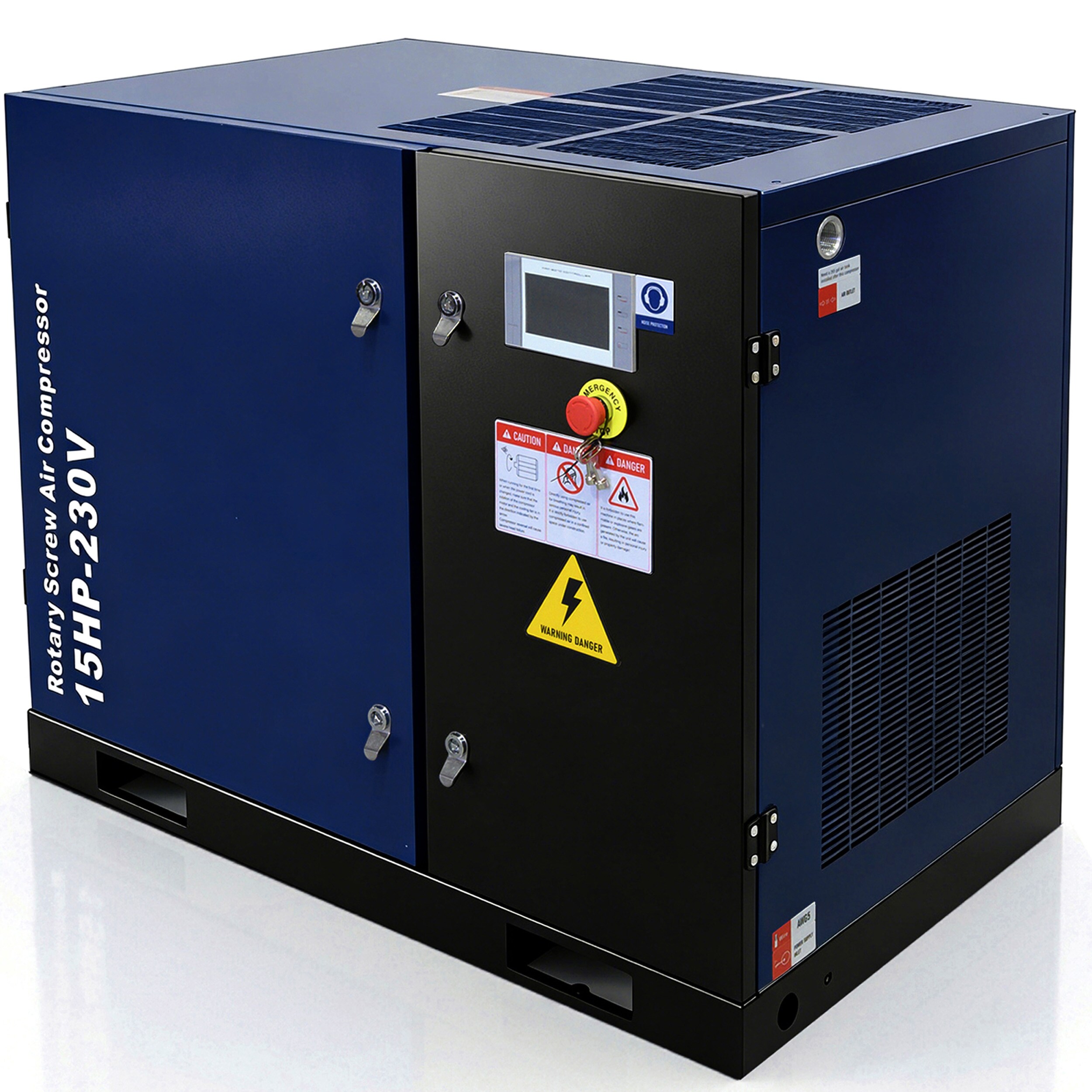

ModernLuxe 15HP Rotary Screw Air Compressor 56 CFM 125PSI 230V 3PHASE 60HZ Fixed Speed Compressor IndustrialGrade Heavy Duty Air Compressed System

For any pre-sale and after-sale questions about our products, you are welcome to contact us by lowes@gigacloudtech.com. We promise to reply you within 12h.

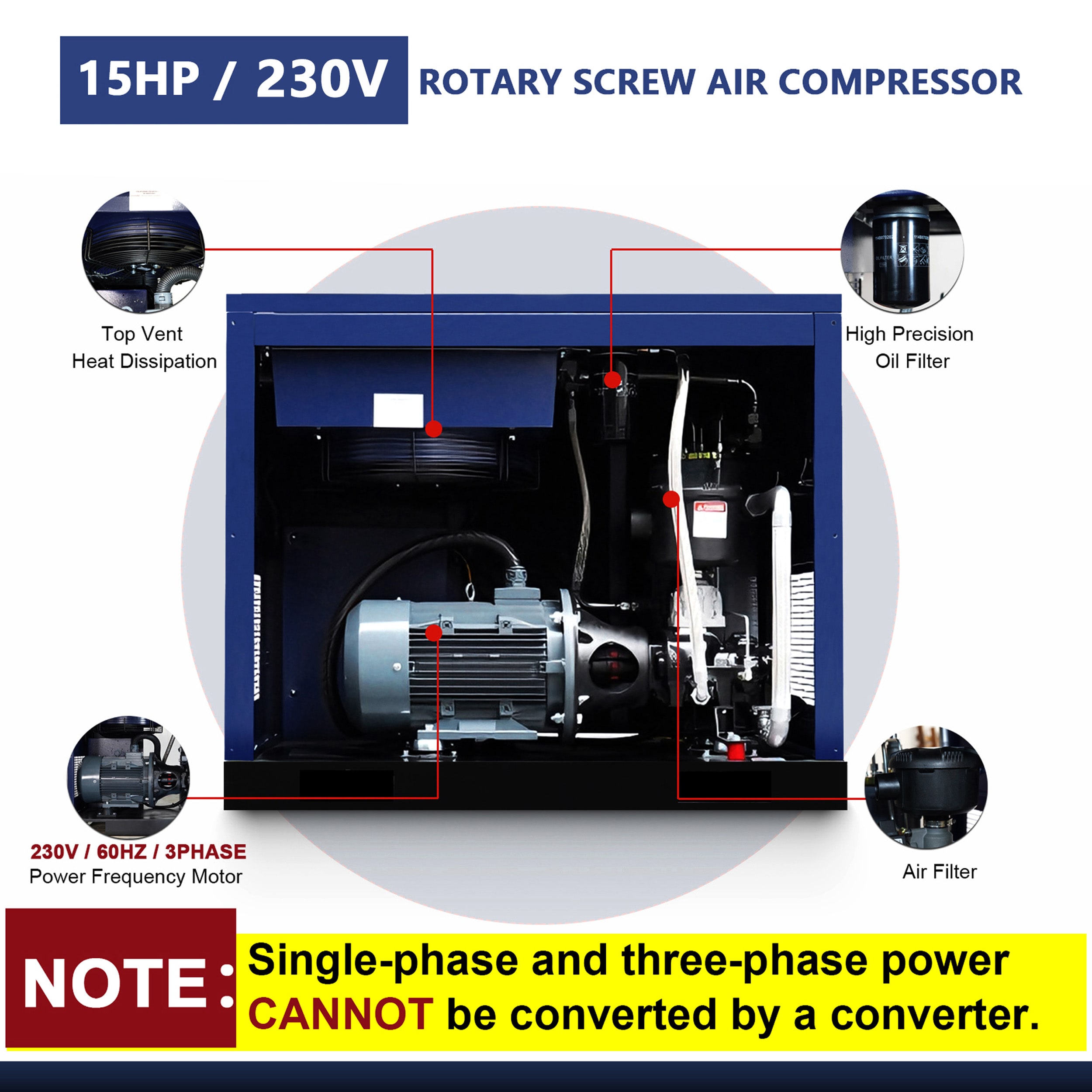

15HP Rotary Screw Air Compressor Specifications

This rotary screw air compressor is configured with a 15HP motor and operates at a rated exhaust pressure of 125 PSI. With an air displacement of approximately 56 CFM, it supports continuous air supply for small factories and production lines. Configured for 230V / 60Hz / 3-phase power, the system is suitable for industrial electrical environments.

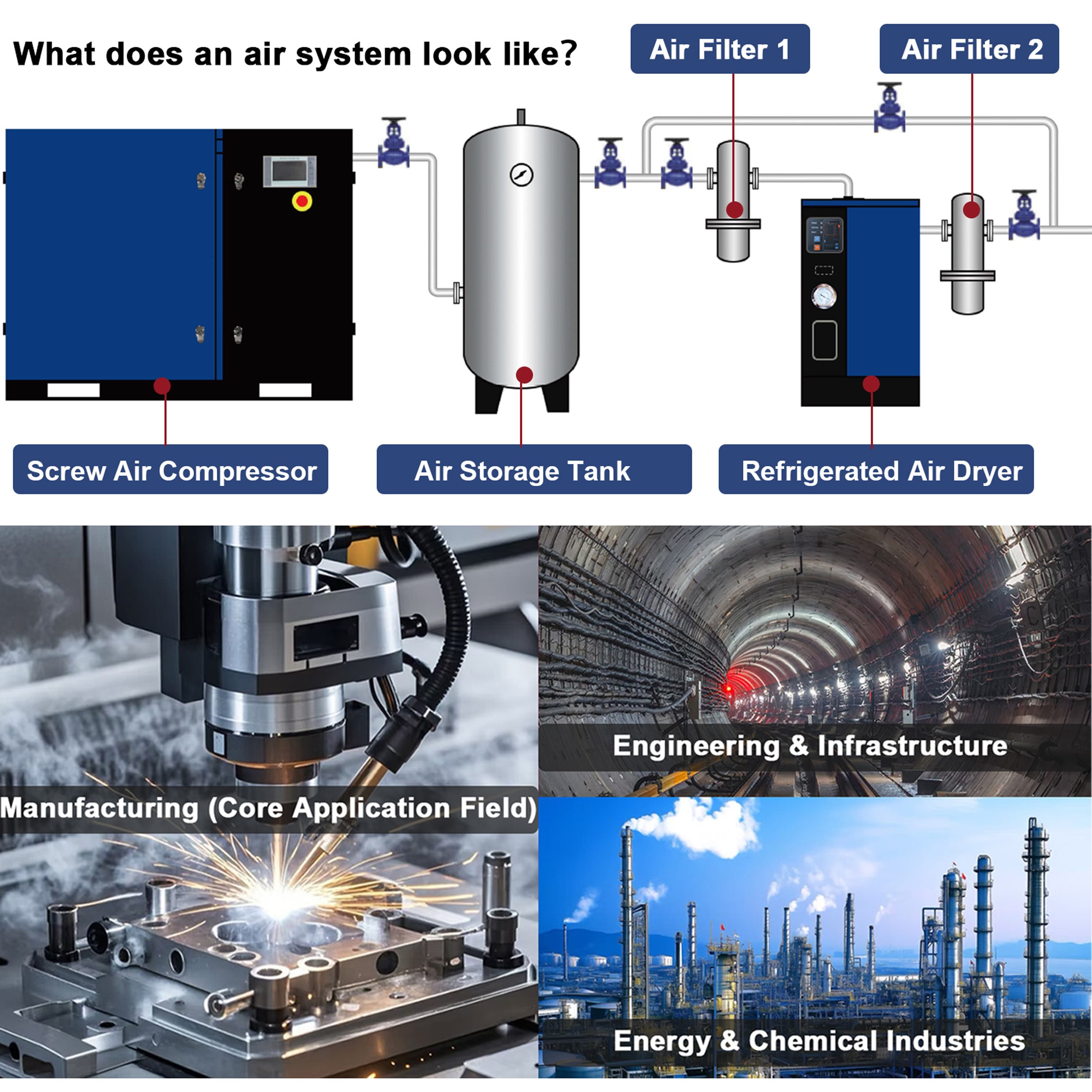

Air Compressor + Air Storage Tank + Refrigerated Air Dryer Setup

A typical compressed air system includes a screw air compressor, an air storage tank, filtration, and a refrigerated air dryer. Air is compressed, stored, filtered, and then dried before being delivered to downstream equipment.

Specification
air displacement:56 CFM

Exhaust pressure:125 PSI

Setting pressure of safety valve:130.5 PSI

Aspiration state temperature:0～104°F

Cooling method:forced air cooling

Air volume adjustment method:Upload and Uninstall

Discharge temperature:≤A-temperature+59°F

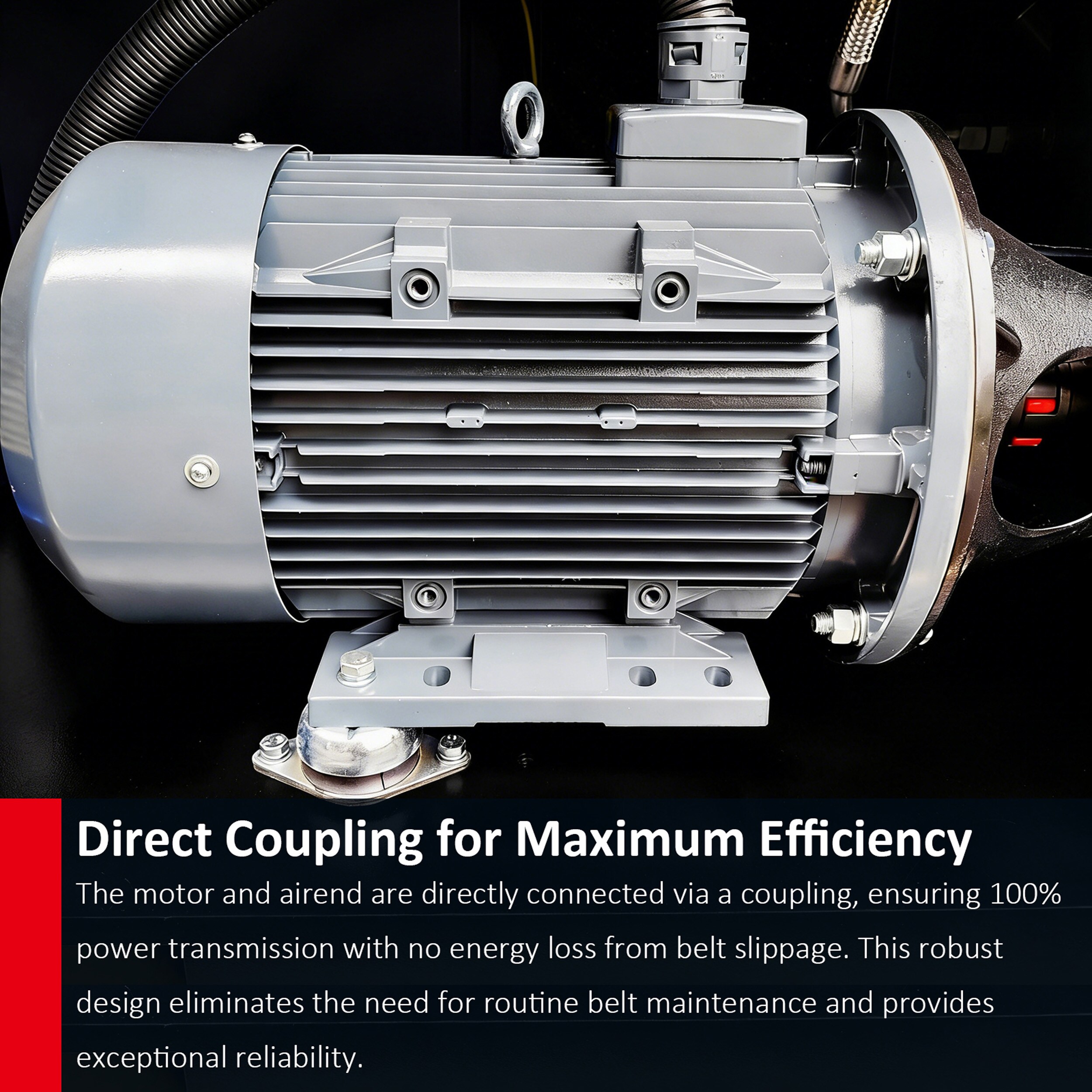

Transmission mode:Coupling direct connection

Oil content of discharged air:≤3

Host motor power:11 KW / 15 HP

Host motor Speed:3500 r/min

Power supply:230V / 60HZ / 3PHASE

Start method:Star Triangle Start

Noise:62±2

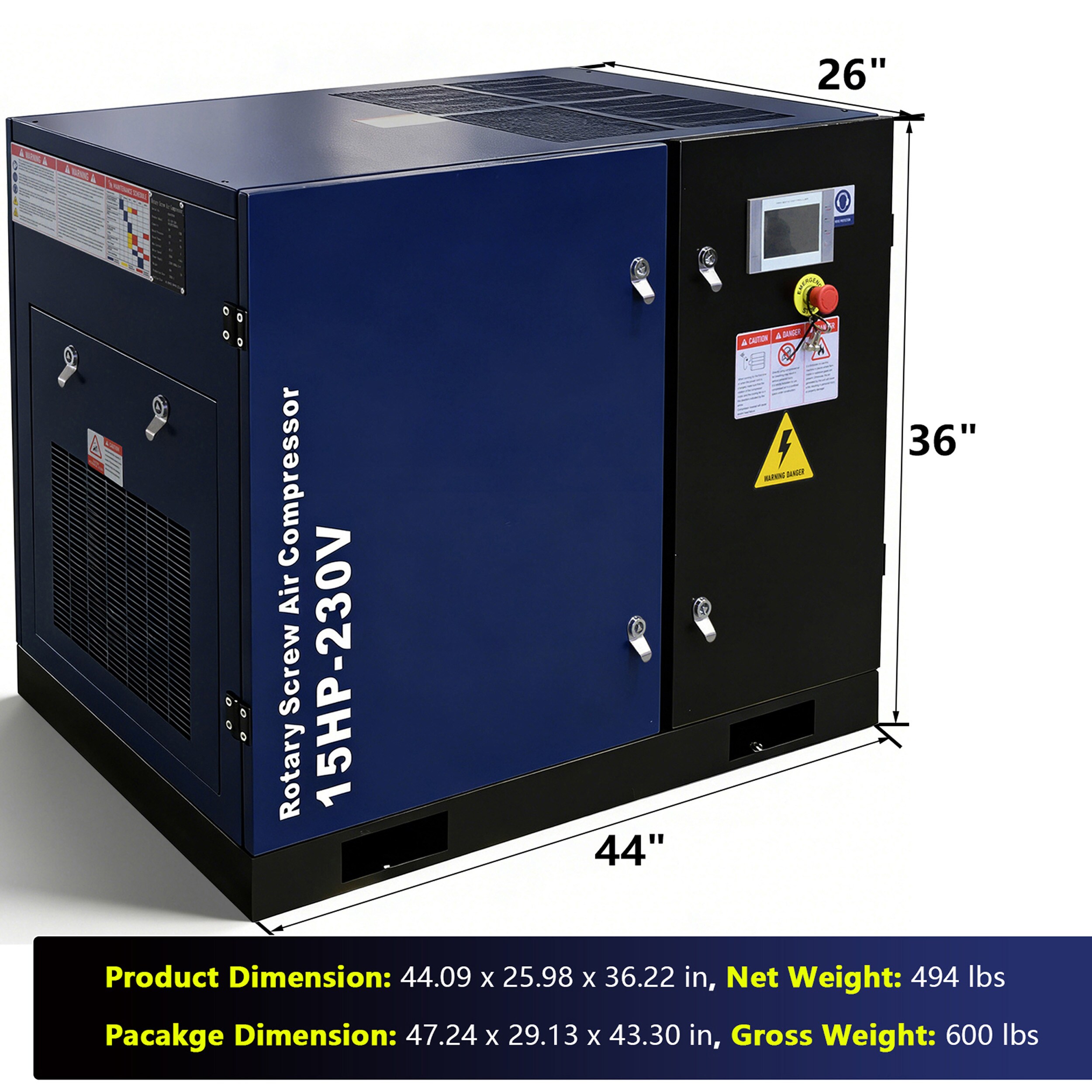

Product Dimension:44.09 x 25.98 x 36.22 in

Net Weight:494 lbs

Pacakge Dimension:47.24 x 29.13 x 43.30 in

Gross Weight:600 lbs

pipe diameter:NPT 1″

Max Current:40.9 A

1; Air displacement: 56 CFM, exhaust pressure: 125 PSI; 2; Host motor speed: 3500 r/min, start method: star triangle start; 3; Host motor power: 11 KW / 15 HP, power supply: 230V / 60HZ / 3PHASE; 4; Pipe diameter: NPT 1inch, max current: 40;9 A, aspiration state temperature: 0～104°F 5; Discharge temperature: ≤A-temperature+59°F;
