ModernLuxe 134CFM Refrigerated Air Dryer for 15HP 20HP 30HP Compressors 1PHASE 115V Refrigerated Air Compressor Dryer Compressed Air Systems Industrial Refrigerated Compressed Air Dryer

For any pre-sale and after-sale questions about our products, you are welcome to contact us by lowes@gigacloudtech.com. We promise to reply you within 12h.

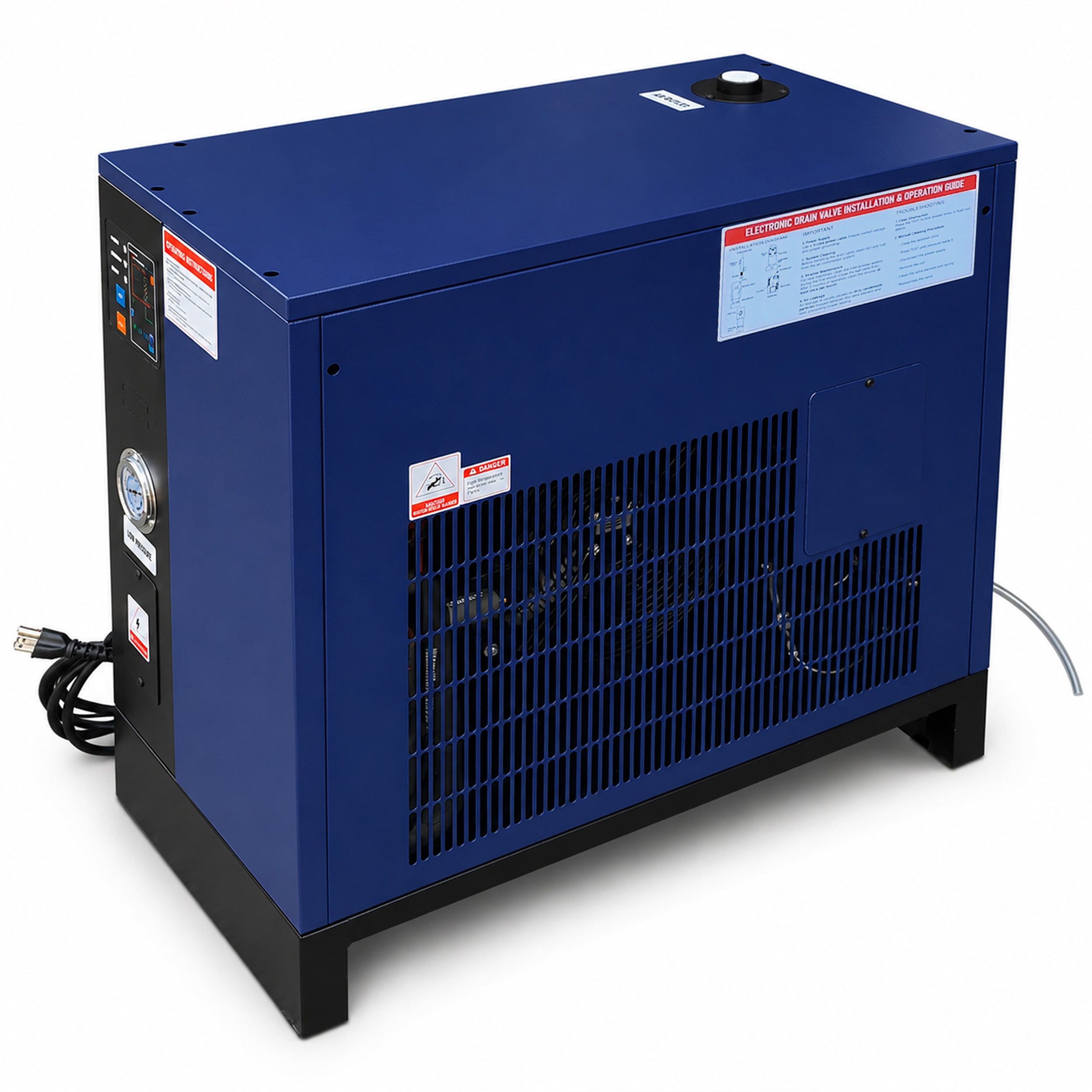

134CFM Refrigerated Air Dryer 1Phase 115V For Air Compressor
Air handling capacity:134 CFM

Pressure Dew Point:37.4-50°F

Standard Working Pressure:101.5 PSI

Maximum Working Pressure:145 PSI

Air inlet temperature:≤140°F

Ambient Temperature:≤100.4°F

Adaptation to the work system:Continuous work

Pressure Loss:≤2.9PIS

Blowdown valve:Electronic blowdown valve

Cooling method:Air cooling

Refrigerant:R410a

power supply V/PH/Hz:115V AC, 1 PHASE, 60HZ

Cooling power:1 HP

Fan power:75 W

Import and export pipe size:NPT 1″

Product Dimension:28.74 x 15.74 x 29.13 in

Net Weight:132 lbs

Pacakge Dimension:31.49 x 18.50 x 36.22 in

Gross Weight:168 lbs

134 CFM Refrigerated Air Dryer for 15 HP, 20 HP and 30 HP Compressors, NPT 1″, 115V 1-Phase 60HZ: Designed for industrial and workshop compressed air systems, this 134 CFM refrigerated air dryer is built to handle high airflow and continuous operation under demanding working conditions;With an air handling capacity of 134 CFM and a pressure dew point range of 37;4–50°F, the dryer effectively removes moisture from compressed air lines, helping protect pneumatic tools, production equipment, and downstream systems from corrosion and condensation; It supports a standard working pressure of 101;5 PSI and a maximum working pressure of 145 PSI, covering most industrial compressed air applications;This unit is specifically matched for air compressors in the 15 HP, 20 HP, and 30 HP range, including rotary screw compressors and high-duty piston compressors operating at standard pressures; Standard NPT 1″ inlet and outlet connections ensure unrestricted airflow and easy system integration;Powered by 115V / 1-Phase / 60Hz, the dryer is suitable for workshops and industrial facilities that require higher airflow capacity; “Engineered for Stable Moisture Removal in Continuous Operation: This refrigerated air dryer features a compact and service-friendly structure designed for continuous-duty operation; The user-friendly control panel allows operators to monitor system status and operating conditions easily;Standard NPT 1″” air inlet and outlet ports provide compatibility with larger compressed air pipelines commonly used in higher-capacity systems; An electronic blowdown valve automatically discharges condensed moisture, eliminating manual drainage and helping maintain stable drying efficiency;Designed for industrial environments, it delivers reliable moisture control for mid- to high-capacity compressed air systems; ” Air handling capacity: 134 CFM, pressure dew point: 37.4-50°F; Standard working pressure: 101.5 PSI, maximum working pressure: 145 PSI; Air inlet temperature: ≤140°F, ambient temperature: ≤100.4°F; Adaptation to the work system: continuous work, import and export pipe size: NPT 1″; 134CFM Refrigerated Air Dryer for 15HP & 20HP & 30HP Compressors;
