ModernLuxe 10HP Rotary Screw Air Compressor 34CFM 125PSI 460V 3PHASE 60HZ Fixed Speed Compressor IndustrialGrade Heavy Duty Air Compressed System

For any pre-sale and after-sale questions about our products, you are welcome to contact us by lowes@gigacloudtech.com. We promise to reply you within 12h.

Product Features

Air displacement: 34CFM, exhaust pressure: 125PSI.
Host motor speed: 3495 r/min. Acoustic Insulation: High-performance acoustic insulation significantly reduces compressor noise levels.
Host motor power: 7.5KW / 10HP, power supply: 460V / 60HZ / 3PHASE.
Max current: 14.1A, Fixed Speed Compressor, Industrial-Grade, Heavy Duty Air Compressed System
Parameters of 10HP-460V 3Phase 60HZ Rotary Screw Air Compressor

Air Displacement-34 CFM

Exhaust Pressure-125 PSI

Setting Pressure of Safety Valve-130.5PSI

Aspiration State Temperature-0～104°F

Cooling Method-forced air cooling

Air Volume Adjustment Method-Upload and Uninstall

Discharge Temperature-≤A-temperature+59°F

Transmission Mode-Coupling direct connection

Oil Content of Discharged Air-≤3Pmm

Host Motor Power-7.5KW / 10 HP

Host Motor Speed-3495 r/min

Power Supply-460V / 60Hz

Start Method-Star Triangle Start

Noise-62±2

Product Dimension-34.06 x 21.65 x 29.33 INCH

Net Weight-425.49 LBS

Package Dimension-37.8 x 26.57 x 37.01 in

Gross Weight-483.91 lbs

Pipe Diameter-NPT 3/4″

Max Current-14.1 Amp

10HP-460V Rotary Screw Air Compressor Specifications
This rotary screw air compressor is configured with a 10HP motor and operates at a rated exhaust pressure of 125 PSI; With an air displacement of approximately 34 CFM, it provides a stable compressed air source for light industrial and workshop applications; Configured for 460V / 60Hz / 3-Phase power, the system meets standard industrial electrical requirements;

Typical Air System Configuration

Air Compressor + Air Storage Tank + Refrigerated Air Dryer Setup

A typical compressed air system includes a screw air compressor, an air storage tank, filtration, and a refrigerated air dryer; Air is compressed, stored, filtered, and then dried before being delivered to downstream equipment;

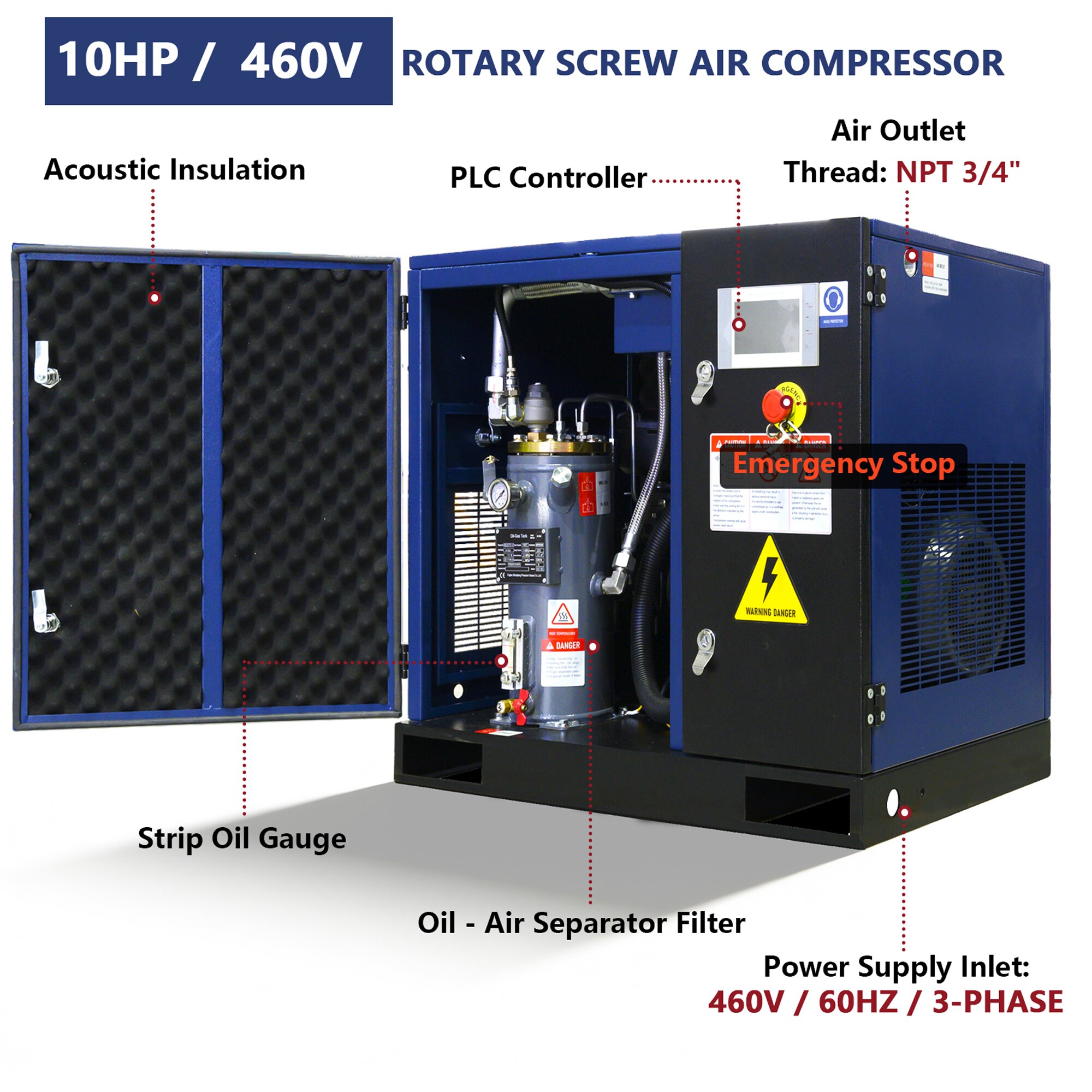

Product Details & Key Components Advanced and User-friendly Controller
The controller with intuitive LCD interface for real-time parameter display; Simplified navigation enables quick setup; Features comprehensive safety protection with alarms for overloads and high temperature; Proactive maintenance alerts prevent downtime and extend compressor lifespan; Direct Coupling for Maximum Efficiency
The motor and airend are directly connected via a coupling, ensuring 100% power transmission with no energy loss from belt slippage; This robust design eliminates the need for routine belt maintenance and provides exceptional reliability; Oil – Air Separator Filter
The oil receiver tank ensures highly efficient oil-air separation and delivers cleaner, drier compressed air; Its robust construction guarantees minimal pressure drop, contributing directly to reduced energy consumption and stable system pressure; Strip Oil Gauge
Clear indication of oil level Electrical Components & Systems
Adoption of Schneider brand electrical components; Air Filter
This easy-to-replace air filter features a large dust-holding capacity and low initial pressure drop, enhancing energy efficiency; It effectively removes particles larger than 3 microns and ensures stable performance even in harsh operating conditions; Oil Filter
This high-precision oil filter ensures optimal air purity and compressor protection, while the easy-replacement design significantly cuts maintenance time and total cost of ownership; Acoustic Insulation
High-performance acoustic insulation significantly reduces compressor noise levels;
