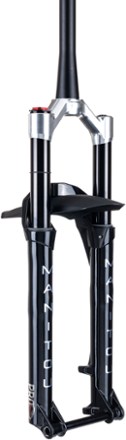

Manitou Mattoc Pro Suspension Fork
$840.99
| Brand | Manitou |
|---|---|
| Color | Gloss Black |
| Size | 29/120 MM/15 X 110 MM/44 MM |
Free Shipping
Fast delivery within the US
Easy Returns
30-day hassle-free returns
Secure Checkout
PayPal & Credit/Debit Cards
Description
Capable of handling a wide range of disciplines from XC to light enduro, the Manitou Mattoc Pro suspension fork maximizes stiffness for serious MTB performance, however you like to ride.
Features
- Dorado Air technology allows for internal travel adjustments with no added parts
- Travel spacers account for negative air volume change, so the 110 mm fork has the same initial stroke feel as the 150 mm
- Dorado Air Spring system has a balancing valve to equalize the positive and negative air chambers during the air fill process for a consistent feel without flat or dead spots
- Air Spring system gives riders of different weights the same initial stroke feel and is the lightest-weight air spring technology from Manitou
- IRT (Infinite Rate Tune) allows for advanced spring tuning by independently adjusting air pressures in the beginning and end stroke
- IRT technology creates a secondary positive air spring that affects only the middle- to end-stroke of the fork
- With IRT, the main air spring can be set to lower pressures for small bump sensitivity while maintaining mid-stroke support and moderate to aggressive end-stroke ramp-up
- Manitou Damper uses a bladder system to compensate for head buildup along with a relief valve for improved consistency and a long service life
- Sealed dampers offer more consistent damping and lighter breakaway force, especially over long descents
- Non-adjustable Hydraulic Bottom Out makes for an easier setup
- TSR (Trail Side Relief) casting bleed screws allow you to release casting pressure from the fork to improve overall fork feel and small bump compliance
- 34 mm stanchions are made with 7000 series butted wall aluminum
- E-bike compatible
- Approximate weight: 1,750 g
Specifications
| Best Use | Mountain Biking |
|---|---|
| Fork Spring Type | Air Spring |
| Fork Brake Type | Disc Brake |
| Fork Brake Mount | Post Mount |
| Max Rotor Diameter | 203 millimeters |
| Crown Race Diameter | 40 millimeters |
| Stanchion Diameter | 34 millimeters |
| Steerer Tube Diameter | 1.5 in. Tapered |
| Steerer Tube Length | 250 millimeters |
| Axle to Crown Length | 532 millimeters |
| Max Tire Width | 67 millimeters |
| Wheel Size | 29 inches |
| Fork Travel | 120 millimeters |
| Fork Offset | 44 millimeters |
| Front Axle | 15 x 110 mm Thru-Axle (Boost) |
| Weight | 1,750 grams |
| Material(s) | Aluminum |
