Description
FEATURES:
- ActiveTarget™ Live Sonar ready
- Active Imaging 3-in-1 ready
- FishReveal™ technology
- Preloaded C-MAP® Contour+ inland and coastal charts with high resolution, bathymetric 1-foot contours on 15,000+ U.S. Lakes and 9,400+ lakes in Canada
- Mapping options including C-MAP, Navionics® and more
- C-MAP® Easy Routing, Navionics® Autorouting capability
- C-MAP Genesis Live onscreen mapping
- High-resolution multi-touch touchscreen
- Integrated wireless, NMEA 2000® and Ethernet connectivity
- Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor
Specifications
| Backlight Color | Pure White LED |
|---|---|
| Display Resolution | 800×480 |
| Viewing Angles | 50° top 60°bottom 70° left/right |
| Bluetooth | Integrated Bluetooth 4.0 with support for Bluetooth Classic |
| Connectivity Wi Fi | Internal 802.11b/g/n |
| SD Card Storage | 1 micro SD card up to 32GB |
| Video | None |
| Charts supported | C-MAP (MAX N, MAX N+) C-MAP Genesis C-MAP Precision Contour HD (AMER ONLY) Navionics (Gold, NAV+ Platinum+) Insight (Pro and HD) Lowrance Regional Mapping Partners |
| Supply Voltage | 12v DC (10.8-17VDC) |
| Waterproofrating | IPX7 with card door closed |
| GPS | 10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS |
| Sonar Compatibility | Integrated: CHIRP Broadband Active Imaging DownScan Active Imaging SideScan Compatible with: SonarHub StructureScan StructurreScan 3D LiveSight Active Target |
| Waypoints, Routes, Tracks | 3000 Waypoints 100 Routes 100 Trails with up to 10,000 points per trail |
| Mounting Type | Gimbal Bracket or Dash Flush Mount |
| Weight | 2.7 lbs (1.2 kg) |
| Interface | Multi-Touch Touchscreen Zoom +/- MOB = (+/- combined) Pages Waypoint Light/Power |
Additional information
| Item |

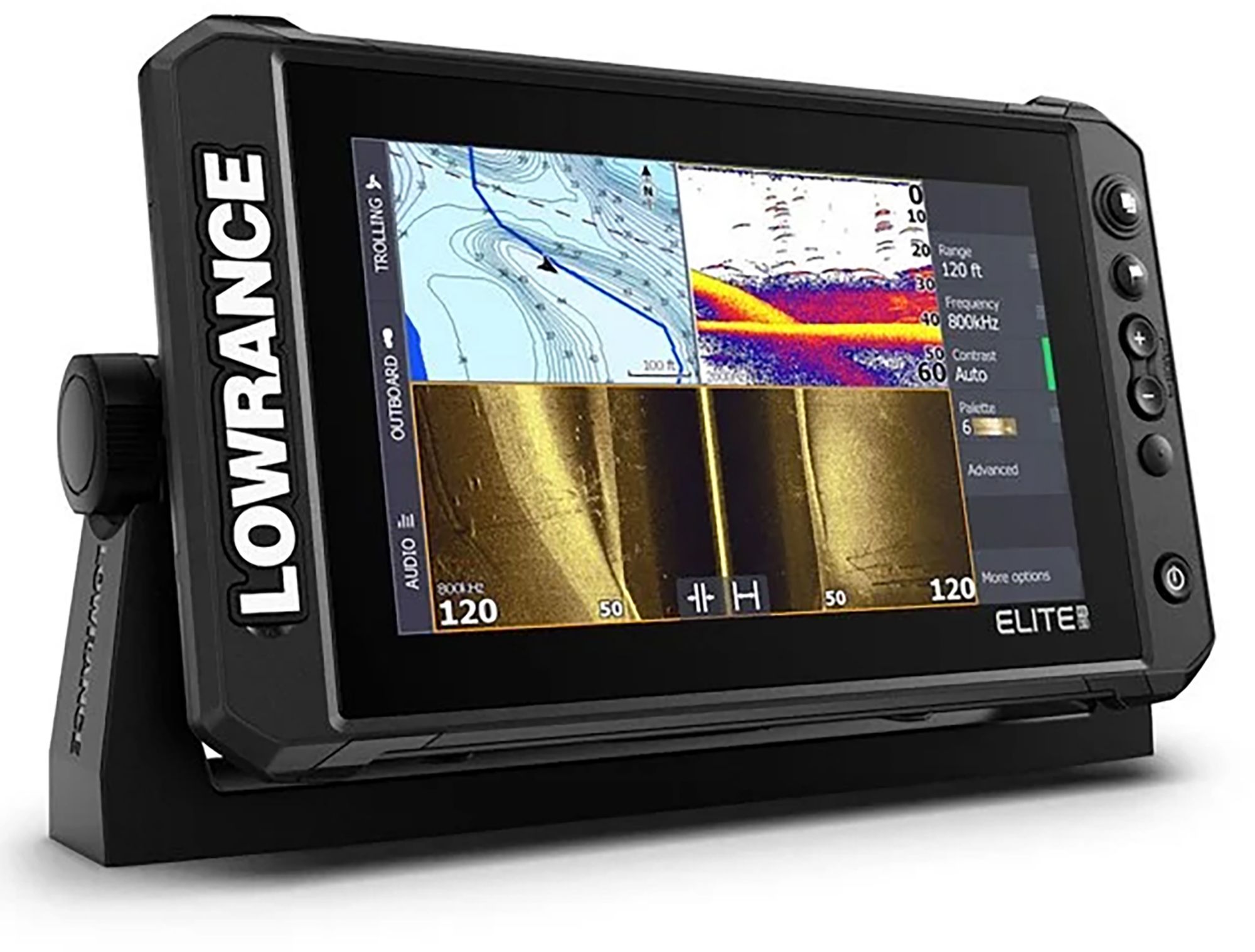

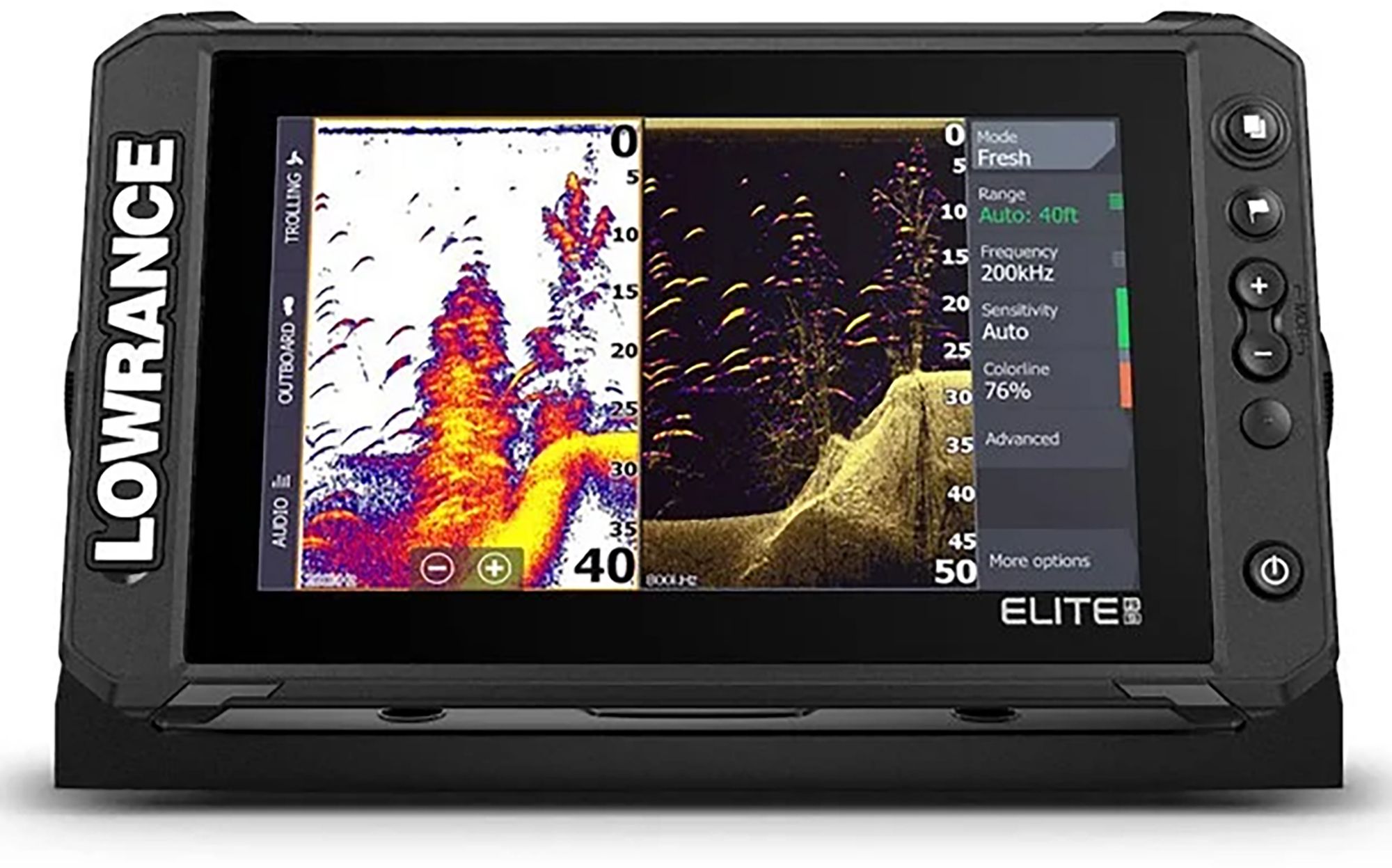

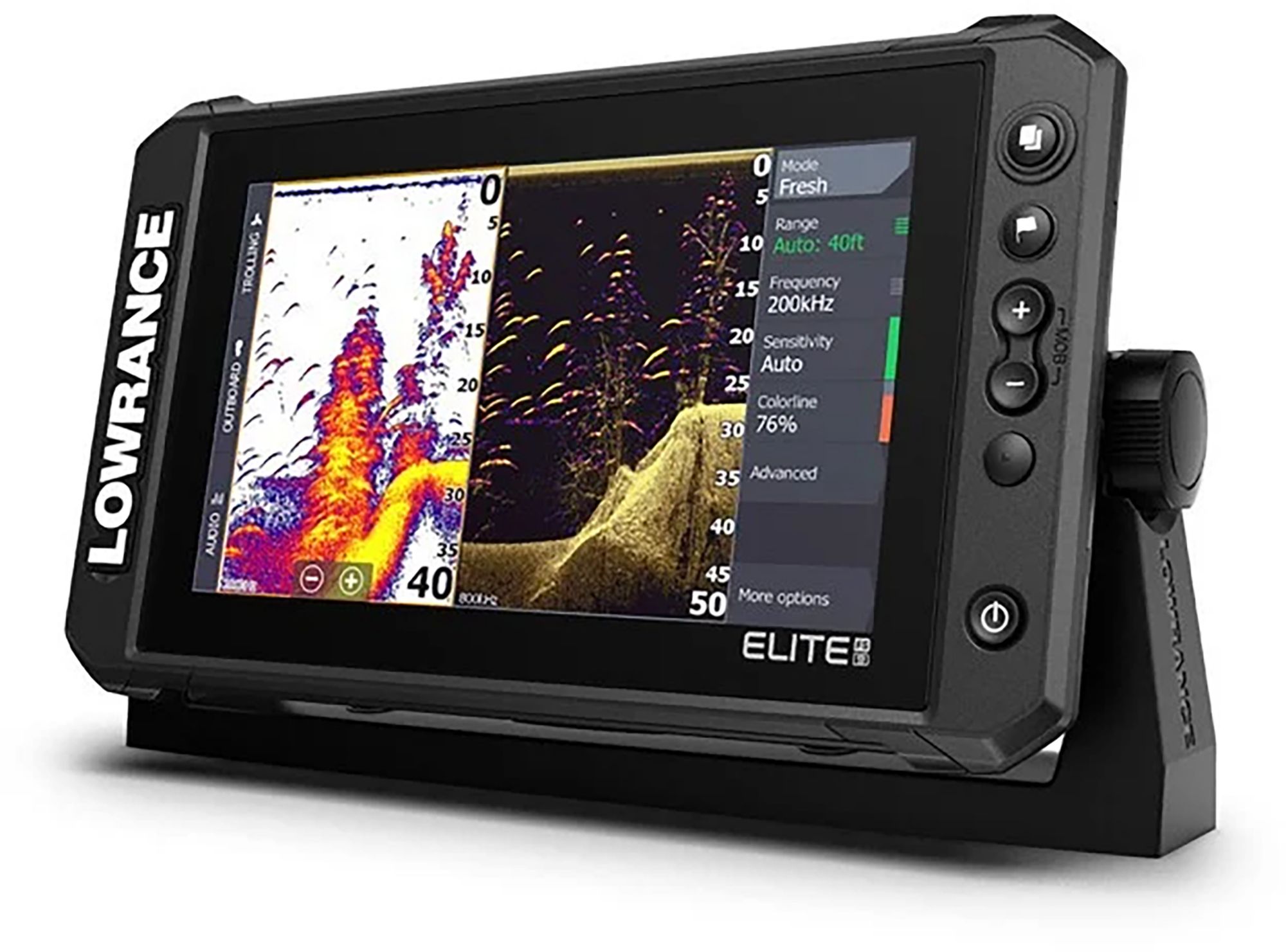

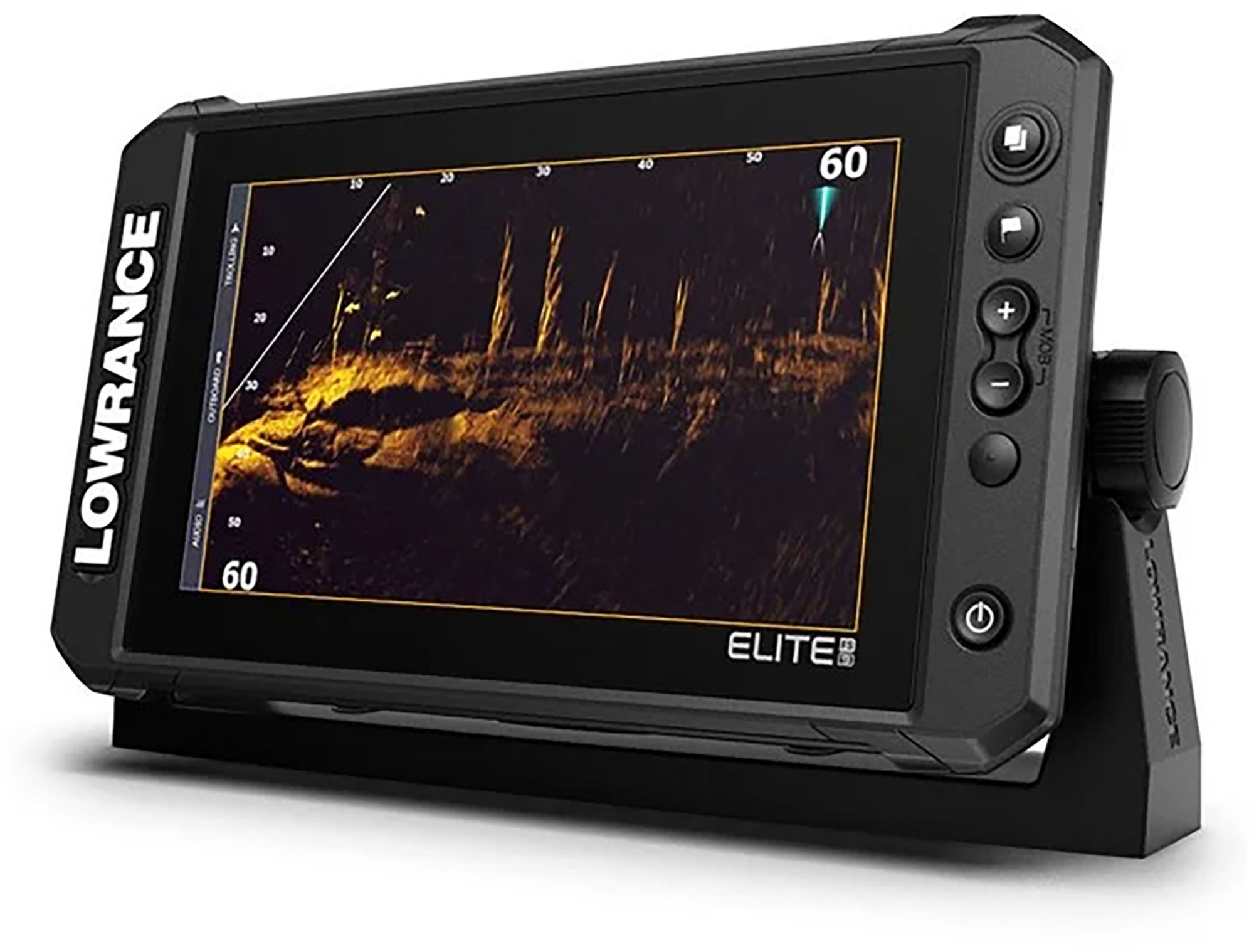

Lowrance Elite FS 7" Fish Finder |
|---|
