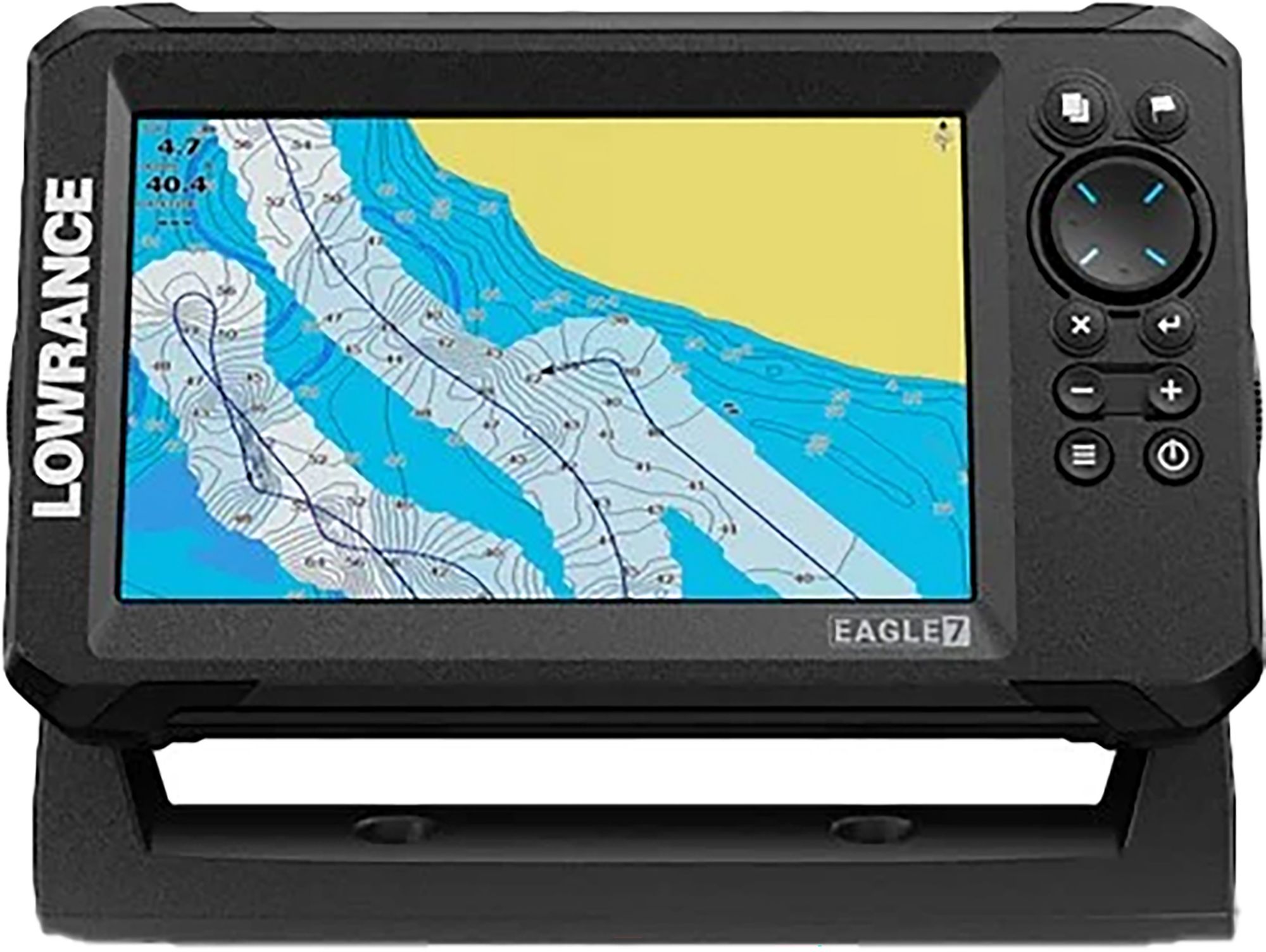

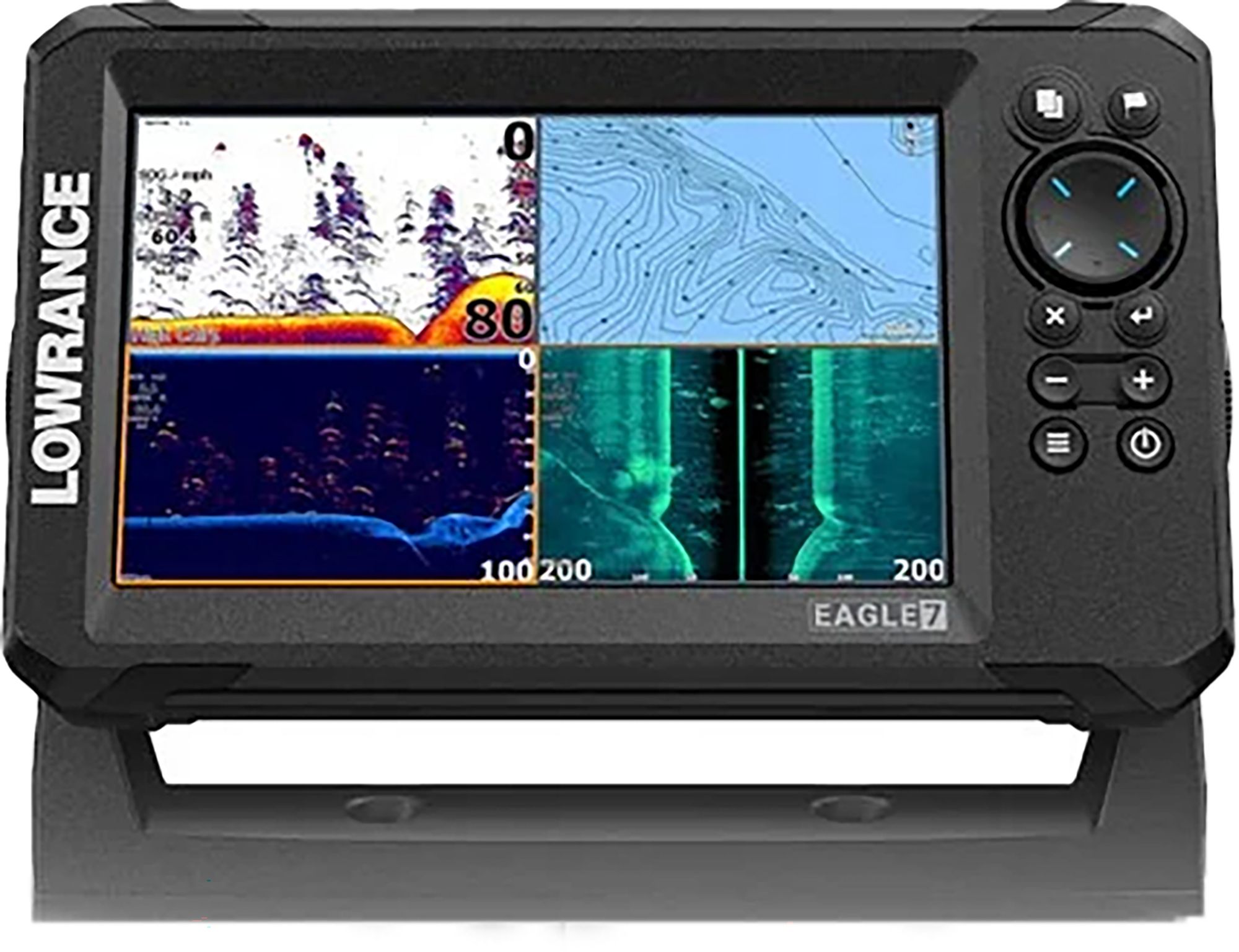

Lowrance Eagle 7 with TripleShot HD Transducer

$449.99

SKU: DSPORT-25466391 Category: DSPADS

SONAR:

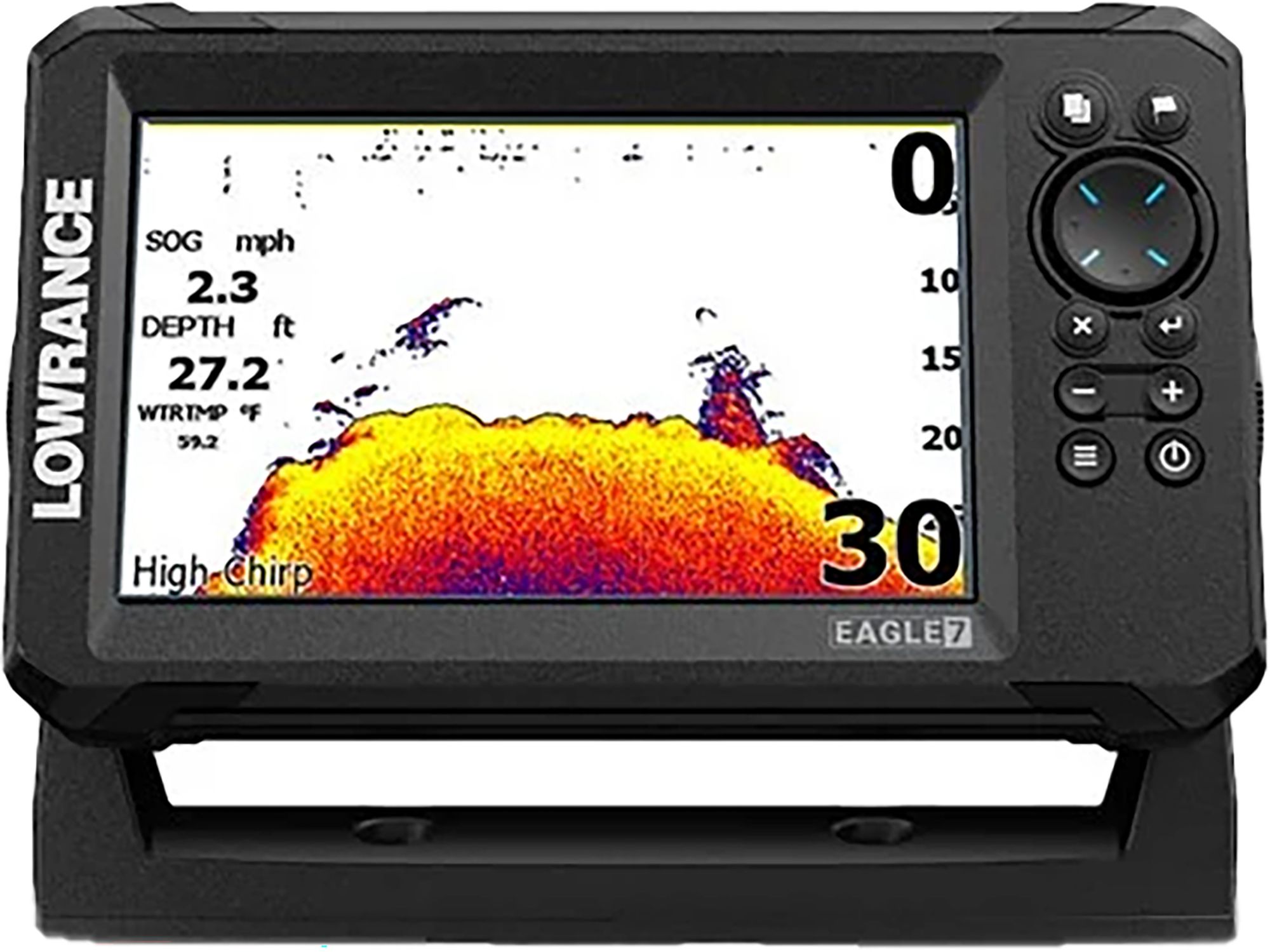

CHIRP sonar delivers high-resolution views of individual fish targets, even when targets are close to the bottom or suspended in tight schools

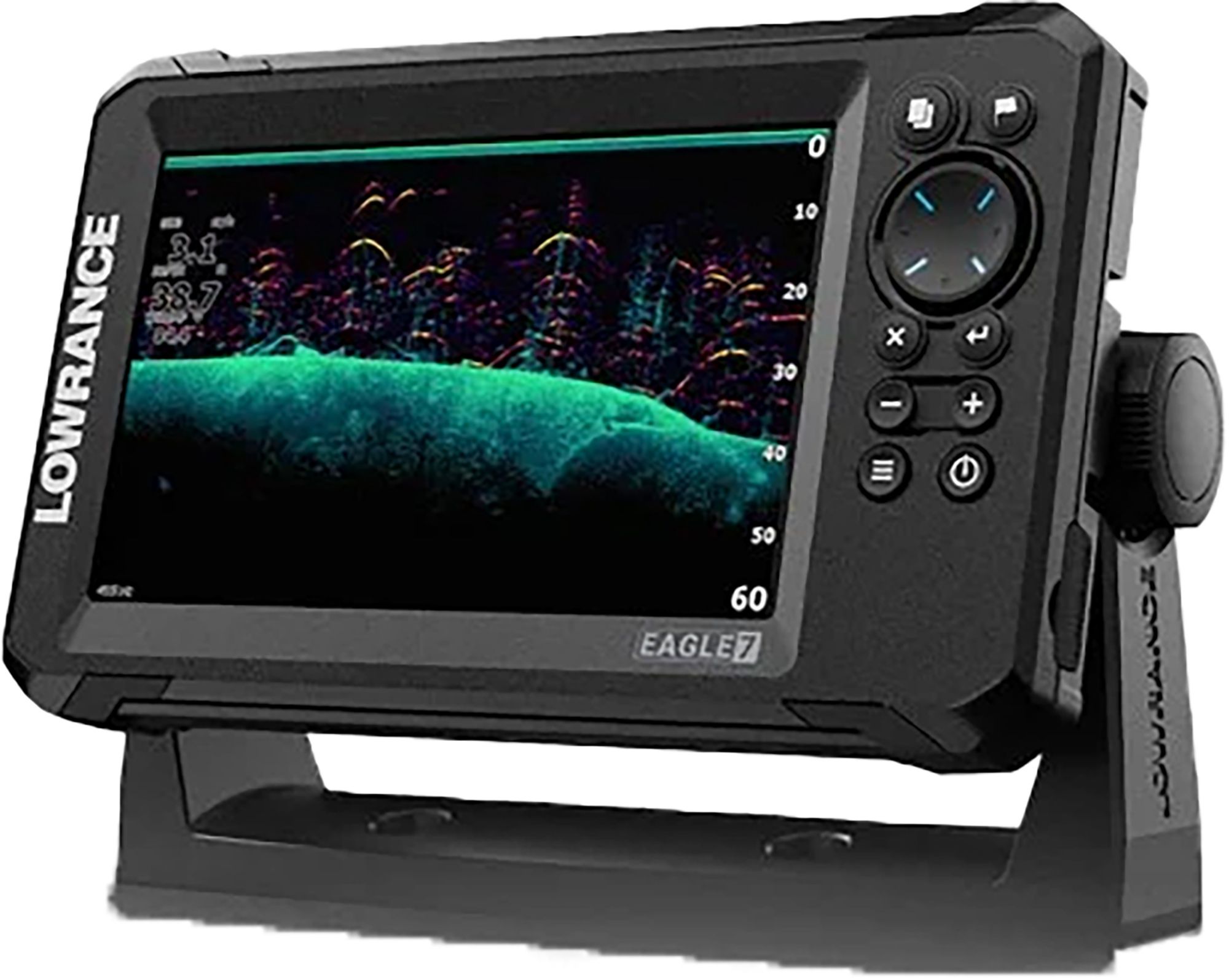

DownScan Imaging™ makes it easier to identify how fish relate to structure, providing photo-like images of rocks, trees, and other underwater structures directly beneath your boat

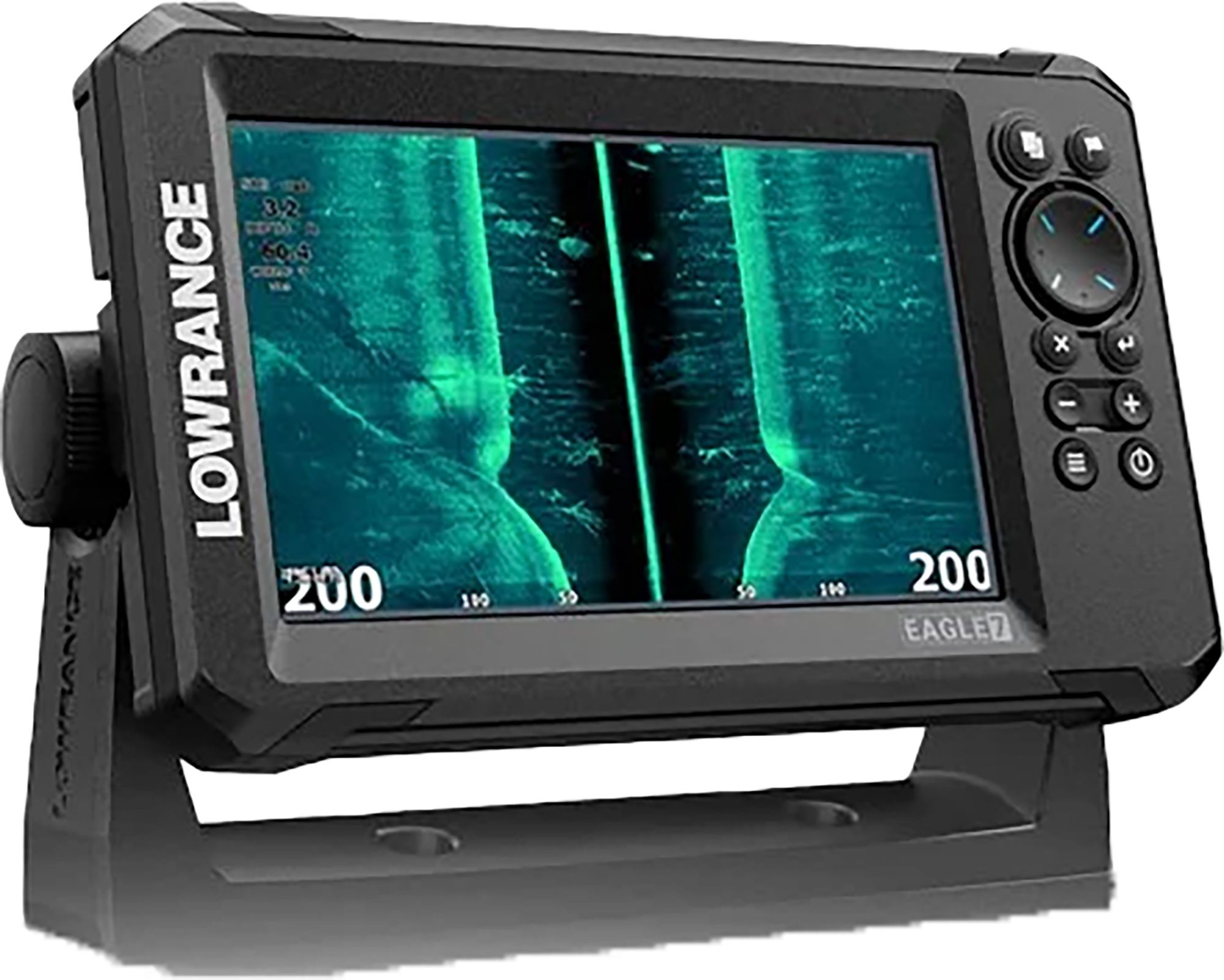

SideScan helps search large areas for fish-holding structure. See up to 600ft either side of your vessel, helping you cover more water in a shorter period of time

FISHREVEAL™ combines DownScan Imaging™ makes it easier to identify how fish relate to structure, providing photo-like images of rocks, trees, and other underwater structures directly beneath your boat

Autotuning sonar provides the optimal settings from the start

NAVIGATION:

Features high-resolution C-MAP® Embedded inland charts for the US for coverage of over 17,000+ American lakes

Create custom ½-foot contour maps of your local lake or uncharted water in real time

ADDITIONAL DETAILS:

Improved resolution, clarity and visibility, even with polarized sunglasses in direct sunlight

Easy set up with Eagle’s improved twist-locking connector, promising an easy installation and removal every time

SD Card Slot

One-year warranty guarantee

Backlight Color	Pure white LED
Display Resolution	800 x 480
Display Size	7″
Screen Brightness	1000 NITS
Viewing Angles	80° top/bottom, 80° left/right
SD Card Storage	1 slot (microSD® 32 GB maximum)
Charts supported	C-MAP® DISCOVER™.
Power Consumption max	550 mA @ 12 V DC with backlight on full
Power Consumption min	250 mA @ 12 V DC with backlight off
Power Consumption typical	550 mA @ 12 V DC with backlight on full
Recommended Fuse Rating	3A
Supply Voltage	12v DC (10.8-17VDC)
Waterproofrating	IPX7 with card door closed
Mounting Type	Gimbal bracket or dash mount
Weight	0.67 kg (1.48 lb)
