Industrial Gigabit PoE Splitter – 90W Power over Ethernet PoE++ Splitter – 12-48V DC Splitter 802.3bt Ultra PoE -40C to +75C

Rugged PoE Splitter | 12-48V DC | IP-30 Aluminum Housing | 1.5A Power Output

Industrial Gigabit PoE Splitter – 90W High Speed Power over Ethernet PoE+++ Splitter – 12-48V DC Splitter 802.3bt – LAN/RJ45 Ultra PoE to DC Adapter – -40C to +75C (POESLT1G48V)

90W POE IEEE802.3bt: Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), IEEE 802.3bt (PoE++ / Type 3); power out configured w/ DIP switch for 12/16/24/48V DC (1.5A) via terminal block HIGH POWER GIGABIT PoE SPLITTER: Power non-PoE devices using network infrastructure where power isn’t available | Splits PoE connection (max 90W) into RJ45 data & DC power (terminal block) ROBUST DESIGN: Industrial Power over Ethernet Splitter w/MTBF of 600,000+ hrs. @ 50C | Vibration, shock & free fall rated | Rugged IP-30 aluminum housing | Hardened operating temp of -40C to 75C STARTECH.COM ADVANTAGE: IT professionals’ choice for over 30 years | This PoE Splitter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support TECH SPECS: High Speed 1 Gbps | 1 x RJ45 PoE In | 1 x RJ45 Data Out | 12V-48VDC 1.5A power output | 4 pin Terminal Block Power Out | 10/100/1000 Mbps Auto Negotiation | DIN or Wall Mountable

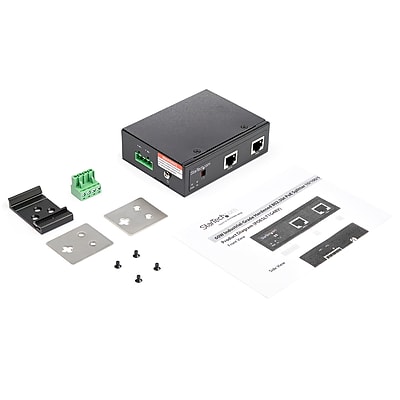

Splits a PoE connection (max 90W) into separate data (RJ45) and DC power (terminal block) that can power any device that uses DC power between 12V-48VDC (1.5A). Power non-PoE devices using network infrastructure, where power is not available.Power Non-PoE DevicesPerfect for using PoE to power older devices while also providing network access for monitoring and control applications. Applications include: Security (card swipe or proximity boxes) Environmental monitoring (temperature/moisture sensors) Telco (analog interface systems/conversion)Straightforward DeploymentSupports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), and IEEE 802.3bt (PoE++ / Type 3) PoE inputs up to 90W and splits data and power. Power output via terminal block can be configured for 12/16/24/48V DC (1.5A).The configuration is completed by DIP switches and the product can be wall or DIN rail mounted using the included hardware.Designed for Harsh EnvironmentsIndustrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.Vibration: EN 60068-2-6Shock: EN 60068-2-27Free-Fall: EN 60068-2-32600,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.The POESLT1G48V is backed by a StarTech.com 2-year warranty and free lifetime technical support.
