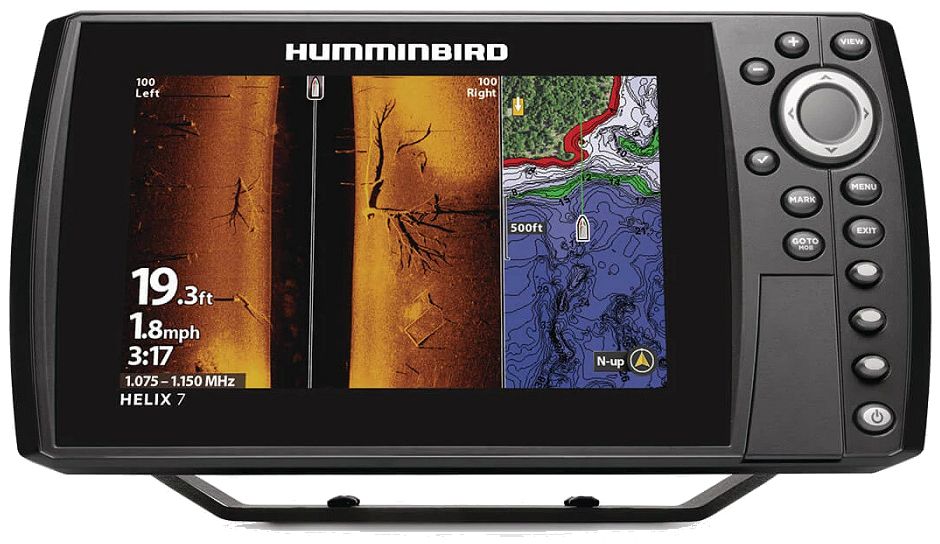

Humminbird Helix 7 Chirp Mega SI GPS G4N
SKU:
DSPORT-23HMBUHLX7CHRPMSGFEL
Category: DSPADS
Description
SONAR:
- Humminbird® Basemap provides a clear view of underwater terrain allowing you to identify buoys, day markers, hazards, contours, depth markings and more
- CHIRP digital sonar allows you to view details that other forms of sonar won’t show that are engineered to help you see individual fish, clearly identify bait and structure, and reach greater depths and range
- CHIRP digital sonar processing of side imaging sonar creates side views of the boat for clear imagery of fish and surrounding area
- Dual Spectrum CHIRP 2D sonar is powered by Low-Q CHIRP transducer to offer two different search options: Narrow mode for focusing on small details and Wide Mode for all-out coverage
NAVIGATION:
- AutoChart LIVE create real-time maps of your fishing spots, map depth contours, bottom hardness, and vegetation as you drive your boat, with eight hours of built-in recording time
- Humminbird® and internal GPS includes charts of over 10,000 lakes with coastal coverage for the continental U.S.
- Precision GPS gives more accurate waypoints and boat position due to accurate position fix for a better fishing experience
- AIS tracks other vessels for easy navigation of high-traffic areas and low-visibility waters
- Humminbird® Autopilot® maintains turn patterns and desired route regardless of weather conditions and speed
- Smartstrike™ cards combine high definition LakeMaster® lake map data for extensive algorithms for easy location of fish and patterns during each season
CONNECTIVITY:
- One-Boat network compatibility seamlessly integrates and communicates with other Humminbird® and Minn Kota® products to unlock more features and capabilities for anglers everywhere
- Provides ethernet networking to easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar
- Equipped with Bluetooth connectivity
- User-friendly menu system with pre-loaded views and softkey controls for easy and reliable operation in any conditions
- Built in NMEA 2000 networking for peak boat performance and prompt weather and water condition updates
ADDITIONAL DETAILS:
- Includes transom-mount transducer, control head, gimbal mounting bracket, power cable, and mounting hardware
- Single slot SD slot for easy transfers
- High-definition display for clear imagery
Specifications
Display Size- Diagonal | 7″ |
---|---|
Display Pixel Matrix | 1024H x 600V |
Sonor Standard | Dual Spectrum CHIRP, MEGA Down Imaging, MEGA Side Imaging |
Sonar-Coverage | 20°, 42°, 60° & (2) 86° @ -10dB |
Sonar-Optional | 53 kHz, 50/Low Airmar CHIRP |
CHIRP – Frequencies Supported | 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz) |
Sonar-Frequencies Supported | 50/83/200/455/800 kHz & 1.2 MHz |
Depth-Sonar | 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz) |
CHIRP – Imaging-Frequencies Supported | 455 kHz (440-500 kHz), MEGA DI (1075-1150 kHz), MEGA SI (1075-1150 kHz) |
Depth-Down Imaging | 400 ft (455 kHz), 75 ft (MEGA) |
Range-Side Imaging (Side-To-Side) | 800 ft (455 kHz), 250 ft (MEGA) |
Interface | Keypad Control |
Features | Built In GPS, Built In Mapping, Dual Spectrum CHIRP, Down Imaging, Side Imaging, MEGA Imaging, MEGA Live Imaging, Bluetooth, Networking, Wi-Fi |
Memory Card Slot | Dual Micro SD |
Compatible With | AIS, AutoPilot, Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, MEGA Live, One-Boat Network, Minn Kota i-Pilot Link, Minn Kota Talon/Raptor, NMEA 2000, Radar |
Power Draw | 800 mA |
Power Input | 10.8-20 VDC |
Power Output Peak-to-Peak | 4000 Watts |
Power Output RMS | 500 Watts |
Screen Snap Shot | Included |
Sonar Recording | Included |
Mount-Standard | Gimbal |
Mount-Standard Size | 10.54″ W x 5.8″ H x 3.68″ D |
Mount-Optional Size | 10.54″ W x 5.44″ H x 1.13″ D |
Transducer Mount Location | Transom |
GPS Chartplotting | Included |
GPS Trackplotting | Included |
LakeMaster Compatibility | Yes |
Coast Master Compatibility | Yes |
Navionics Gold/HotMaps Compatibility | Yes |
Navionics Platinum + Compatibility | Yes |
Platinum Compatibility | Yes |
Heading Sensor GPS Compatibility | Yes |
Upgradable Software | Yes |
View Preset Keys | Yes |
X-Press Menu System | Yes |
Custom Digital Readout | Yes |
Custom View Selections | No |
Display Colors Grayscale | 16-Bit |
Display Size | 5″ – 7″ |
Speed | Included |
Temperature | Built in |
Temperature Alarm | Yes |
Temperature Graph | Yes |
Transducer Included | XNT 9 HW MSI 150 T |
HDMI Compatible | No |
MEGA Live Compatibility | Yes |
Additional information
Item |
Humminbird Helix 7 Chirp Mega SI GPS G4N |
---|
