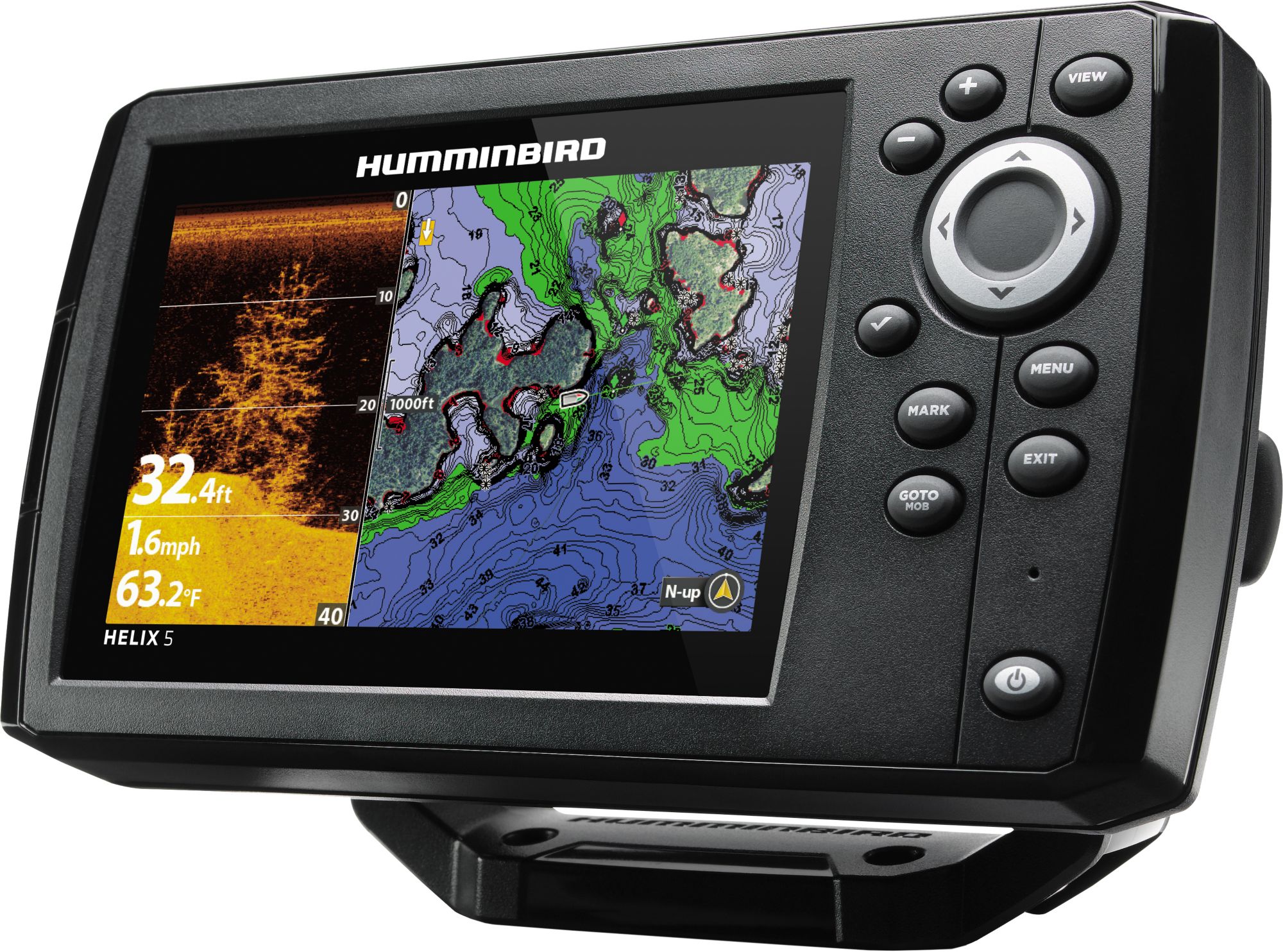

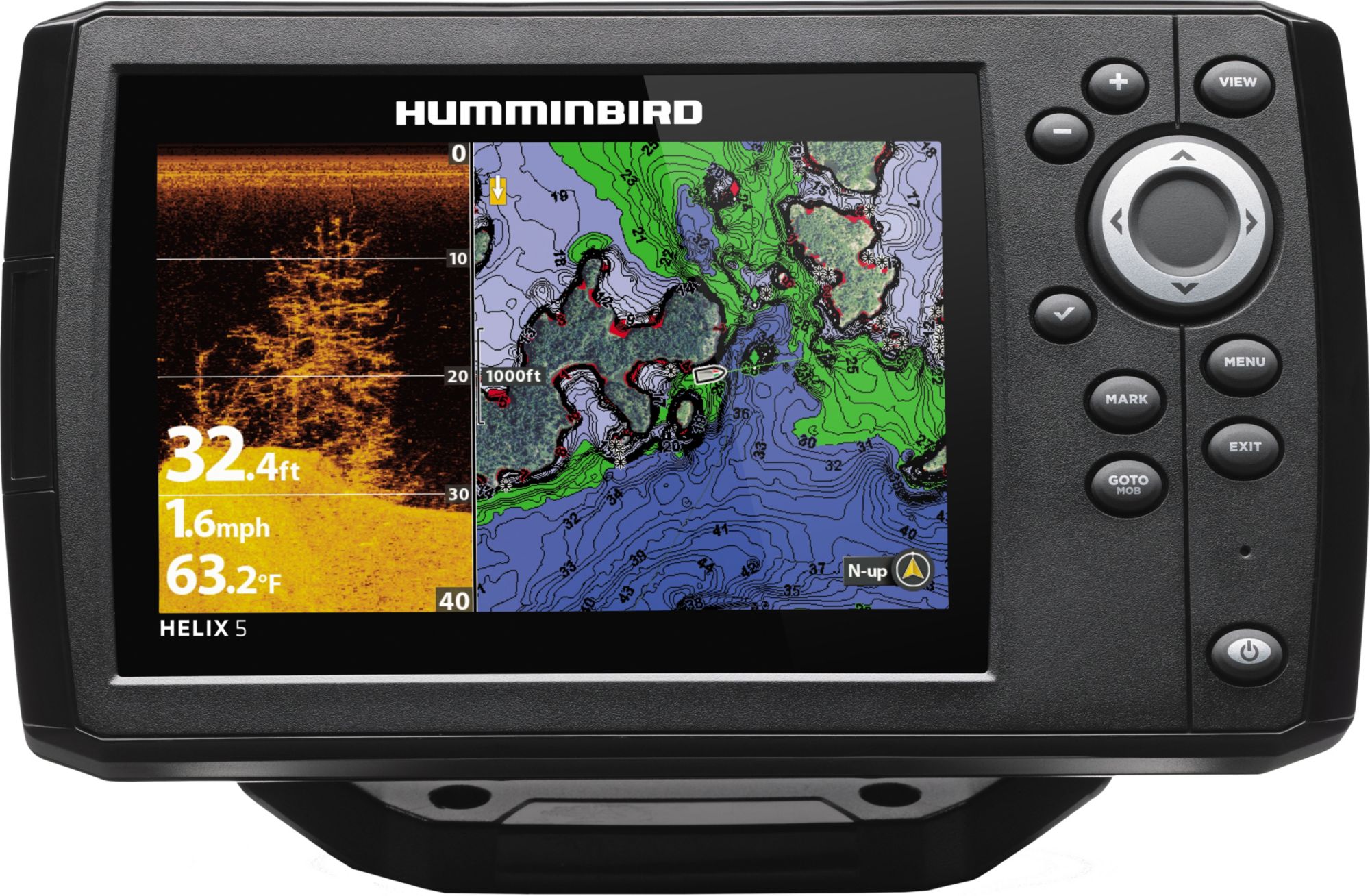

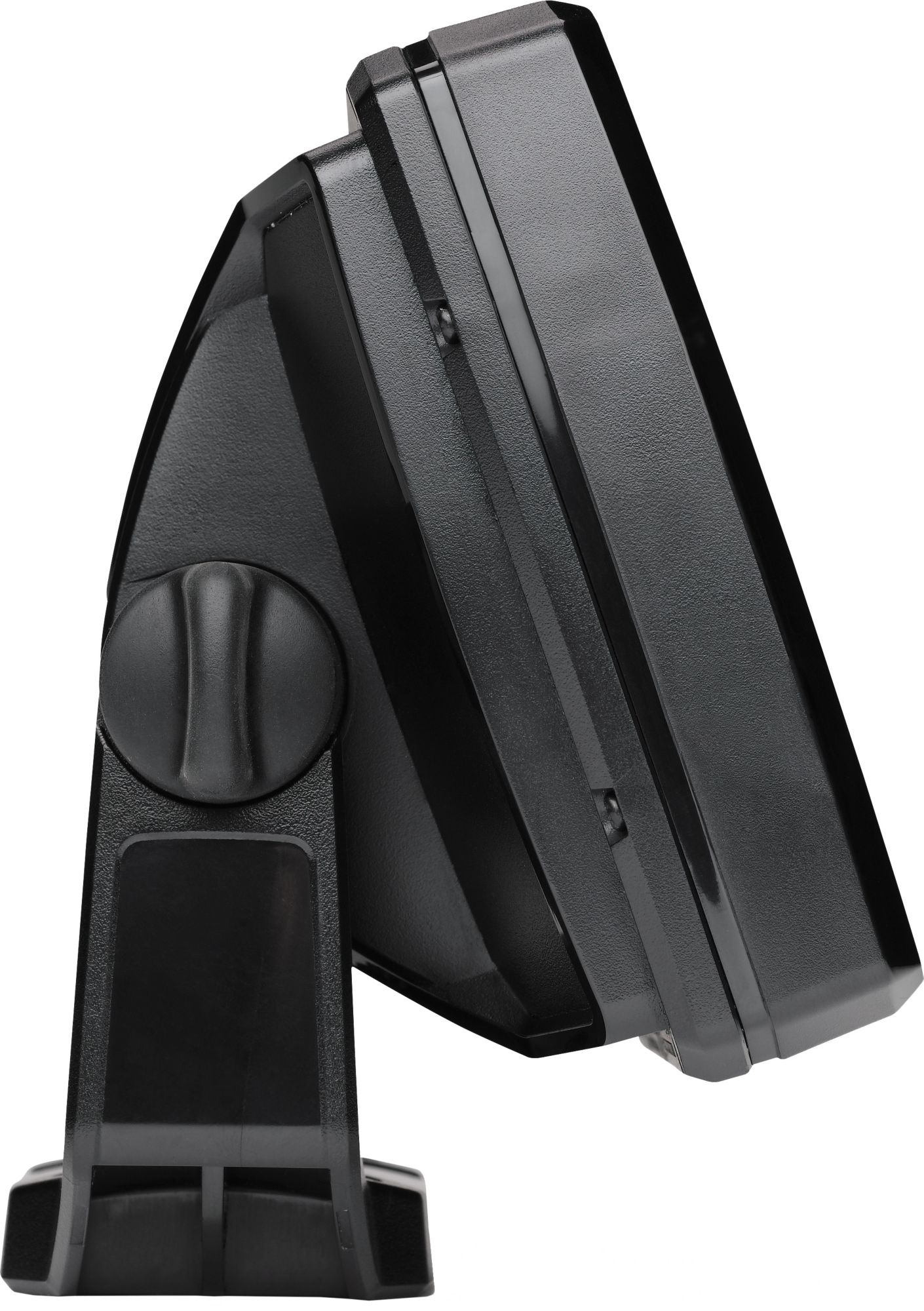

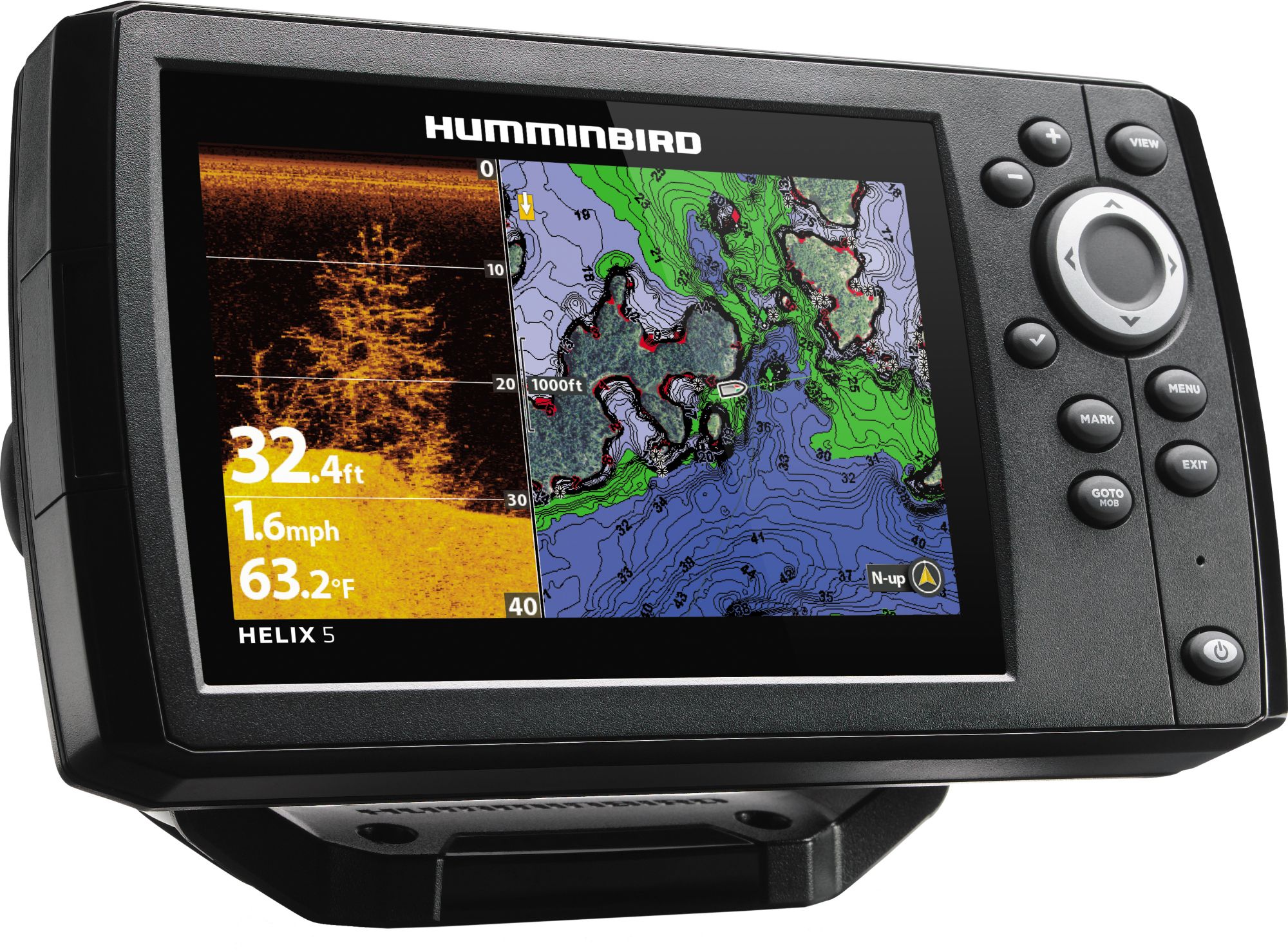

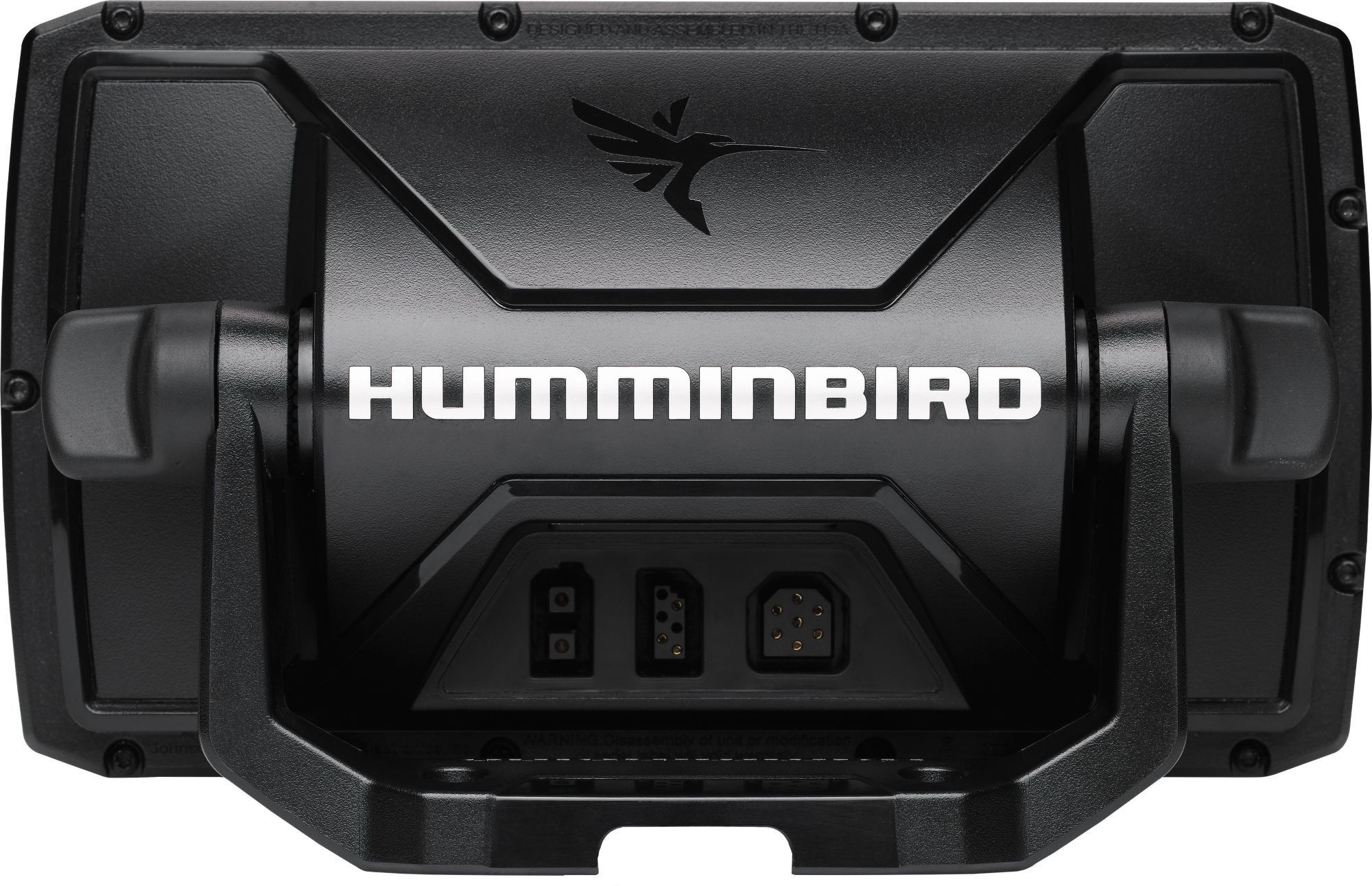

Humminbird Helix 5 CHIRP DI G2 NAV+ GPS Fish Finder-Floor Model

$210.73

SKU: DSPORT-20672001 Category: DSPADS

Down Imaging® Sonar provides an eye-level view of the terrain below your boat
Hummingbird basemap provides a clear view of underwater terrain allowing you to identify buoys, day markers, hazards, contours, depth markings and more
CHIRP Digital Sonar allows you to view details that other forms of sonar won’t show that are engineered to help you see individual fish, clearly identify bait and structure, and reach greater depths and range
DualBeam Plus™ for excellent detail and wide coverage
SwitchFire® technology boasts two display modes where you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations all at the push of a button

GPS chartplotting with internal GPS receiver
Precision GPS provides an accurate position fix
Includes Navionics+ map card with data for over 21,000 lakes in the U.S. and Canada
AutoChart LIVE create real-time maps of your fishing spots, map depth contours, bottom hardness and vegetation as you drive your boat, with eight hours of built-in recording time
SmartStrike predictive search feature helps anglers find spots based on fish species, time of year, weather and bottom topography
Lakemaster lake maps include easy-to-read contours and scrollable lake lists
Aerial photography of high definition lakes, providing visibility to docks, buildings, and structure with Lakemaster Plus

Model	410220-1NAV
Display Size – Diagonal	5″
Display Pixel Matrix	800H x 480V
Sonar-Standard	DualBeam PLUS, CHIRP Down Imaging
Sonar-Coverage	16°, 28°, 45° & 75° @ -10dB
Sonar-Optional	50 kHz, 50/Low Airmar CHIRP
CHIRP – Frequencies Supported	50/200 (28-75/130-250 kHz), 83/200 (75-155/130-250 kHz), High (130-250 kHz), Low (28-75 kHz), Med (75-155 kHz)
Sonar-Frequencies Supported	50/83/200/455/800 kHz
Depth-Sonar	600 ft (standard transducer), 2,500 ft (optional 50 kHz)
CHIRP – Imaging-Frequencies Supported	455 kHz (420-520 kHz), 800 kHz (790-850 kHz)
Depth-Down Imaging	350 ft
Interface	Keypad Control
Features	Built In GPS, Built In Mapping, Down Imaging
Memory Card Slot	Single Micro SD
Compatible With	AIS, AutoPilot
Power Draw	615 mA
Power Input	10.8-20 VDC
Power Output Peak-to-Peak	4000 Watts
Power Output RMS	500 Watts
Screen Snap Shot	Included
Sonar Recording	Included
Mount-Standard	Gimbal
Mount-Standard Size	7.55″ W x 4.64″ H x 3.3″ D
Mount-Optional Size	7.55″ W x 4.28″ H x 1.13″ D
Transducer Mount Location	Transom
GPS Chartplotting	Included
GPS Trackplotting	Included
LakeMaster Compatibility	Yes
Transducer Included	XNT 9 DI T
Navionics Gold/HotMaps Compatibility	Yes
Navionics Platinum + Compatibility	Yes
