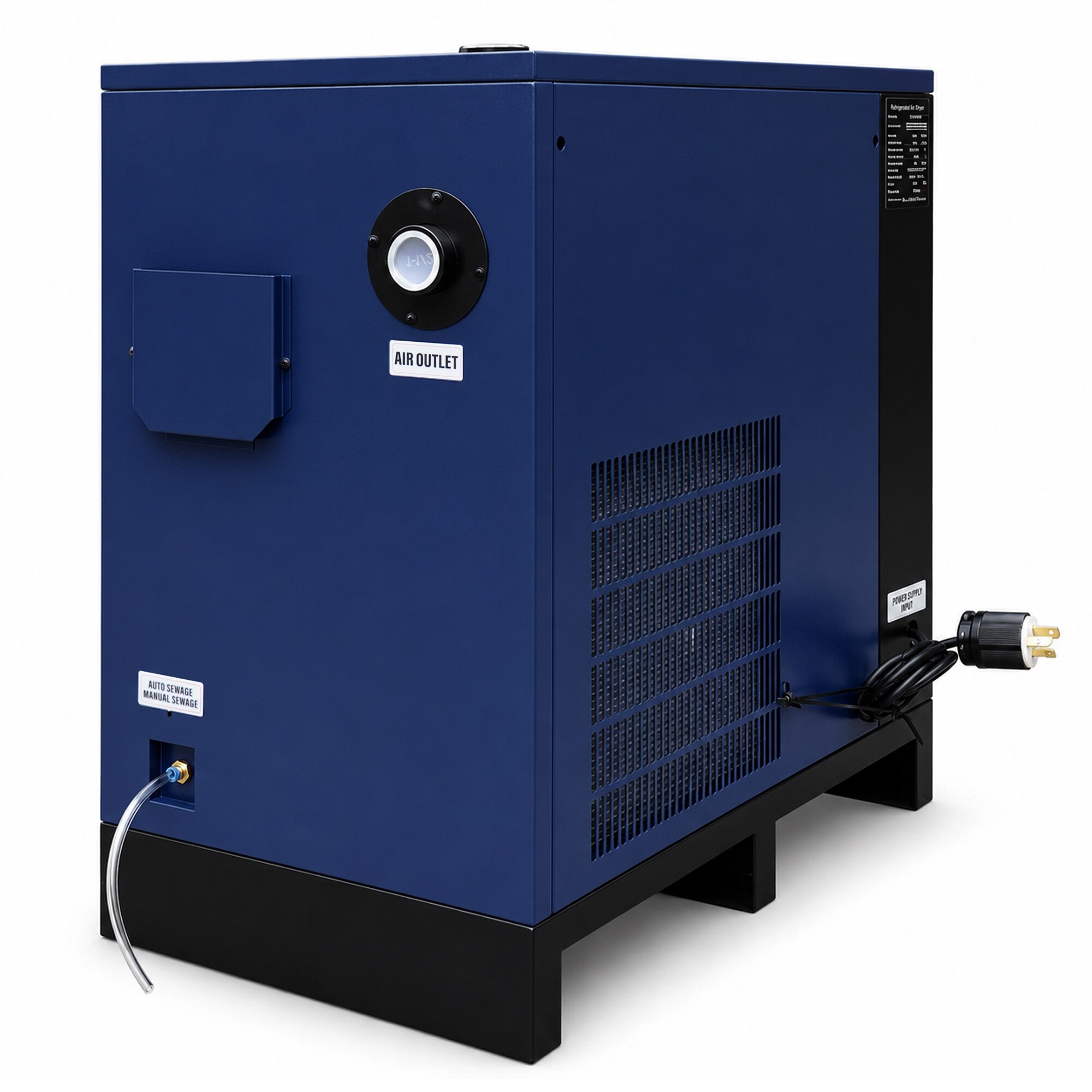

Dexmalle 240CFM Refrigerated Air Dryer for 50HP-460V Rotary Air Compressors

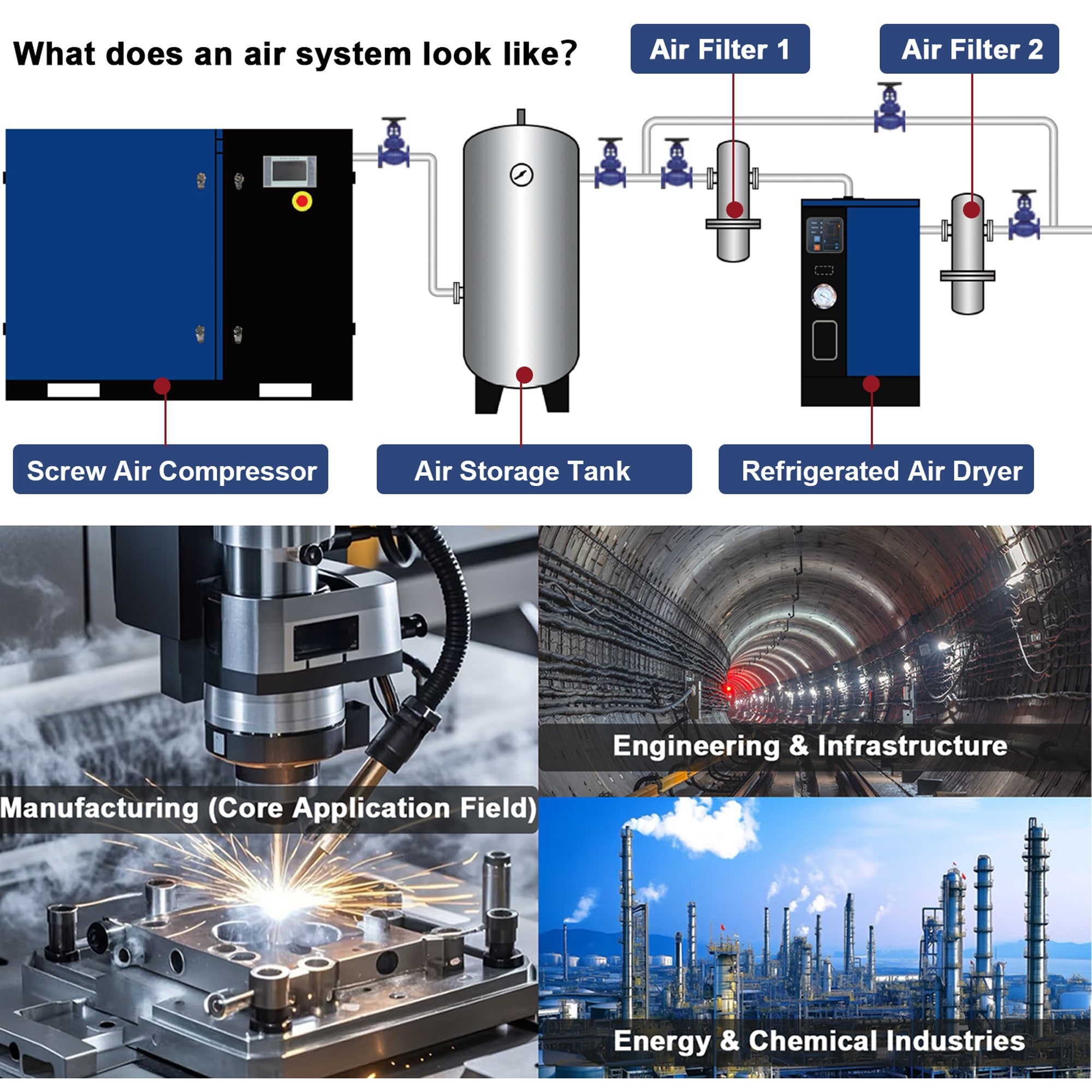

240CFM Refrigerated Air Dryer for 50HP-460V Rotary Air Compressors, 3PHASE 460V Refrigerated Air Dryer, Compressed Air Systems, Industrial Refrigerated Compressed Air Dryer.Designed for industrial and workshop compressed air systems, this 240 CFM refrigerated air dryer is engineered to handle high airflow and continuous-duty operation under demanding working conditions.With an air handling capacity of 240 CFM and a pressure dew point range of 37.4–50°F, the dryer effectively removes moisture from compressed air lines. By reducing condensation and water vapor, it helps protect pneumatic tools, CNC equipment, air-operated machinery, and downstream components from corrosion, clogging, and premature wear. The unit supports a standard working pressure of 101.5 PSI and a maximum working pressure of 145 PSI, covering the majority of industrial compressed air applications.This refrigerated air dryer is specifically matched for 50 HP air compressors, including rotary screw compressors and high-duty piston compressors operating at standard industrial pressures. It is suitable for continuous production environments such as workshops, manufacturing lines, automotive facilities, and fabrication shops where stable air quality is required.Equipped with standard NPT 1 1/2″ inlet and outlet connections, the dryer ensures unrestricted airflow and seamless integration into existing compressed air systems. Powered by 460V / 3-Phase / 60Hz, it delivers high-capacity drying performance for industrial facilities that operate three-phase electrical systems.This refrigerated air dryer features a compact, industrial-grade structure designed for continuous operation and long-term reliability. The user-friendly control panel allows operators to easily monitor system status, operating conditions, and overall performance during daily use.Standard NPT 1 1/2″ air inlet and outlet ports provide compatibility with higher-capacity compressed air pipelines commonly found in industrial systems.

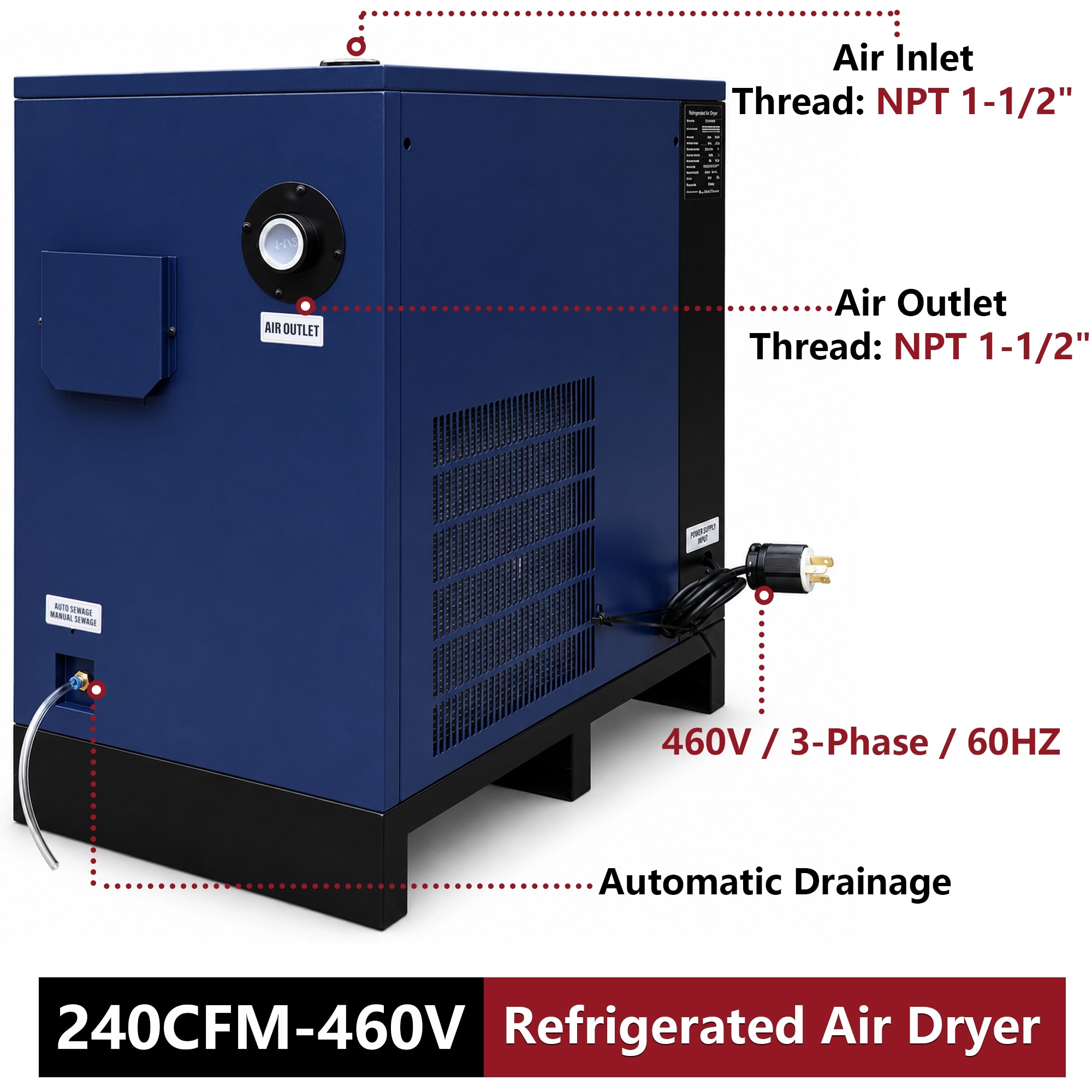

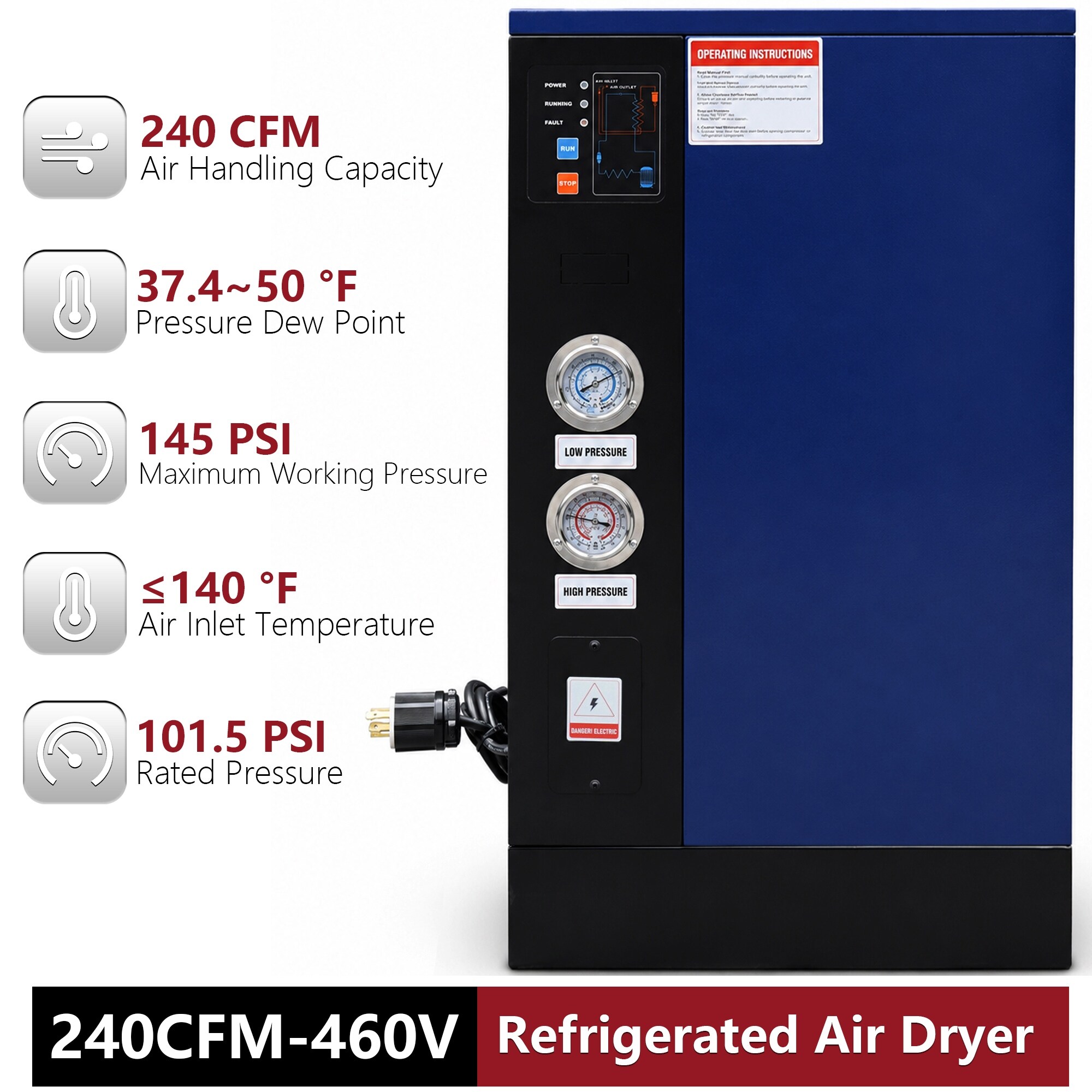

Air handling capacity: 240 CFM, pressure dew point: 37.4-50°F. Standard working pressure: 101.5 PSI, maximum working pressure: 145 PSI. Air inlet temperature: ≤140°F, ambient temperature: ≤100.4°F. Adaptation to the work system: continuous work, import and export pipe size: NPT 1 1/2″. 240CFM Refrigerated Air Dryer for 50HP Compressors.
